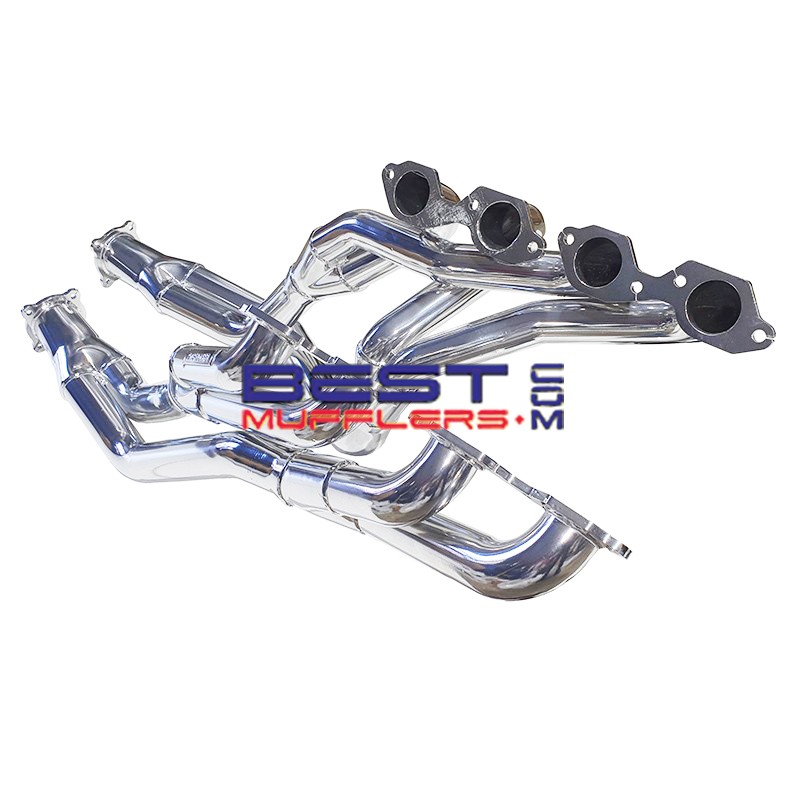

Pacemaker Ceramic Coating PHC30 – High Temperature Header Coating
$690.00
Tax included
Pacemaker Ceramic Coating PHC30 – High Temperature Header Coating
Pacemaker PHC30 ceramic coating is available for selected Pacemaker headers and is designed to improve heat management, corrosion resistance and long-term durability while providing a premium ceramic-coated finish.
The ceramic coating is applied to both the inside and outside surfaces of the headers, helping reduce radiant heat around the engine bay while also providing additional protection against internal exhaust corrosion.
Processing time is approximately 14–21 days.
Best Mufflers provides expert advice and fast shipping Australia-wide.
Click the image for larger views and more photos.
Pacemaker Ceramic Coating PHC30 – High Temperature Header Coating
Pacemaker PHC30 ceramic coating is a premium coating option available for selected Pacemaker headers. It is designed to improve heat management, corrosion resistance and durability while giving the headers a clean, professional ceramic finish.
Unlike an external-only coating, the Pacemaker ceramic coating process treats both the inside and outside of the header pipes. This helps reduce heat transfer into the engine bay while also providing additional protection against corrosion caused by hot exhaust gases inside the headers.
Key Benefits
- Helps reduce radiant heat from the headers
- Coated internally and externally
- Improves resistance to internal and external corrosion
- Helps protect surrounding engine bay components from excessive radiant heat
- Provides a durable premium finish
- Can help prolong header service life
- Available for selected Pacemaker header applications
Processing Time
Allow approximately 14–21 days for the ceramic coating process.
Important Ordering Information
This PHC30 ceramic coating listing is only for specific Pacemaker headers.
Please do not purchase this coating option unless PHC30 is specifically listed against the Pacemaker headers you are ordering or Best Mufflers has confirmed that PHC30 is the correct coating option for your application.
Header Temperature Testing
Testing supplied for ceramic-coated headers shows a substantial reduction in radiated heat compared with uncoated headers.
| Exhaust Gas Temp | Header Surface Temp | Radiated Heat Uncoated | Radiated Heat Coated | Reduction |
| 1330°F | 810°F | 170°F | 60°F | 110°F |
| 1340°F | 810°F | 170°F | 60°F | 110°F |
| 1350°F | 820°F | 180°F | 70°F | 110°F |
| 1380°F | 830°F | 180°F | 70°F | 110°F |
| 1410°F | 840°F | 180°F | 70°F | 110°F |
| 1420°F | 840°F | 180°F | 70°F | 110°F |
| 1440°F | 860°F | 190°F | 70°F | 120°F |
| 1510°F | 890°F | 190°F | 70°F | 120°F |
| 1530°F | 930°F | 200°F | 80°F | 120°F |
The temperature figures above are supplied test data and should be used as a guide only. Actual temperatures will vary depending on engine load, exhaust gas temperature, vehicle configuration, airflow and operating conditions.
Ceramic Coating vs Header Wrap
Header wrap can also reduce radiant heat, but ceramic coating provides the additional benefit of coating the internal exhaust surface. Hot exhaust gases and condensation can contribute to corrosion from inside the header pipes, so internal ceramic protection can provide an advantage over external wrap alone.
Installation Tips
Care should be taken during installation to avoid scratching or damaging the ceramic coating.
A useful installation method is to wrap the headers in several layers of cling film before placing them into the engine bay. Trim the wrap away from the cylinder-head flange so the mounting bolts can be started, then carefully cut and remove the remaining film before final tightening.
Avoid dragging ceramic-coated headers against chassis rails, steering components, engine mounts or bodywork during installation.
What's Included
- Ceramic coating service for the applicable Pacemaker header set
- Internal and external ceramic coating treatment
Frequently Asked Questions
What does PHC30 mean?
PHC30 is a Pacemaker ceramic coating option used for selected Pacemaker header applications.
Does ceramic coating reduce engine bay heat?
Yes. Ceramic coating can significantly reduce radiant heat from the header surface. Actual temperature reduction varies depending on engine and operating conditions.
Are the headers coated internally as well as externally?
Yes. The ceramic coating process treats both the internal and external surfaces of the applicable header pipes.
How long does ceramic coating take?
Allow approximately 14–21 days for the coating process.
Can I add PHC30 to any Pacemaker headers?
No. PHC30 applies only to specific Pacemaker header sets. It should only be selected where PHC10 is listed against the header part number or confirmed by Best Mufflers.
Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.
How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.
