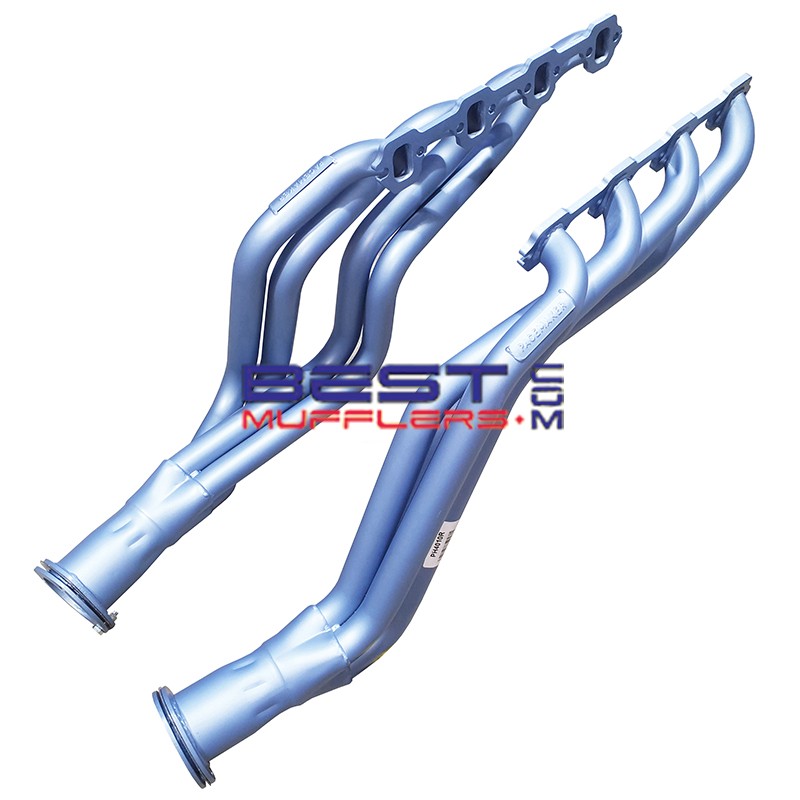

Ford Mustang 1964-1969 260 289 302 Windsor V8 Pacemaker Headers PH4010

Pacemaker PH4010 exhaust headers (extractors) are designed for selected Ford Mustang 1964-1969 models fitted with 260, 289 or 302 Windsor small-block V8 engines.

Featuring mandrel-bent 38mm primary pipes with 76mm flanged outlets, PH4010 headers replace the restrictive factory exhaust manifolds and are designed to improve exhaust gas flow and scavenging for better torque, throttle response and engine performance.

PH4010 is suitable for a range of classic Mustang street, restoration and performance applications, with important steering and clutch fitment requirements outlined below.

Please check availability and current lead time before ordering.

Not sure which headers to use for your Windsor engine? Read our Ford Windsor header guide here.

Key Features

• Designed for selected Ford Mustang 1964-1969 models
• Suits 260, 289 & 302 Windsor small-block V8 engines
• Mandrel-bent 38mm primary pipes
• Large 76mm flanged outlets
• Thick machined flanges for durability and reliable sealing
• Smooth collector design for improved exhaust gas flow and scavenging
• Designed to improve exhaust flow, torque, throttle response and engine performance
• Suitable for applicable Left Hand Drive Mustangs subject to clutch and steering configuration

Construction

• High-quality steel tubing
• Mandrel-bent pipework for consistent exhaust gas flow
• Precision welded construction
• Thick machined flanges
• Pacemaker Blue heat-resistant finish rated to approximately 800°C
• Australian manufactured by Pacemaker

Additional Options

• PHC30 Ceramic Coating: Optional ceramic coating for improved heat management, surface durability and corrosion resistance
• DSF003: Replacement exhaust manifold/header gasket set available separately
• PBR4010: Steering ram kit required for applicable ram-assist power steering installations

Vehicle Fitment

• Make: Ford
• Model: Mustang
• Year Range: 1964-1969
• Engines: 260 / 289 / 302 Windsor V8
• 260 V8: Early Mustang application
• 289 V8: Mustang applications through 1968
• 302 V8: Mustang applications from 1968

Header Specifications

• Part Number: PH4010
• Primary Pipe Size: 38mm
• Outlet Size: 76mm flanged
• Construction: Mandrel-bent steel
• Finish: Pacemaker Blue
• Coating Temperature Rating: Approximately 800°C

Fitment Notes

• Will fit Left Hand Drive models, subject to clutch and steering configuration
• Will fit Top Loader gearbox applications
• Will not fit Left Hand Drive vehicles with a mechanical clutch
• Will not fit ram-assist power steering without the PBR4010 steering ram kit
• Will not fit GT40P cylinder heads
• Confirm engine, transmission, clutch and steering configuration before ordering
• Older Mustangs may have undergone engine, transmission, steering or suspension conversions that can affect header clearance
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during trial fitting and installation
• Check clearance around steering components, engine mounts, clutch linkage, starter motor and surrounding components during installation
• Please check availability and current lead time before ordering.

What’s Included

• 1 x Pacemaker PH4010L left-hand header assembly
• 1 x Pacemaker PH4010R right-hand header assembly
• Tapered reducers for exhaust connection
• 16 x header bolts

Recommended With

• DSF003 exhaust manifold/header gasket set
• PBR4010 steering ram kit where required
• Matching exhaust system and intermediate pipes
• PHC30 ceramic coating where additional heat management is desired

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, a 289ci (4.7L) Windsor V8 theoretically draws in approximately 9,400 litres of intake air per minute and can expel around 28,200 litres of hot exhaust gas per minute at approximately 600°C.

At the same engine speed, a 302ci (4.95L) Windsor V8 theoretically draws in approximately 9,900 litres of intake air per minute and can expel around 29,700 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Apply penetrating lubricant to exhaust manifold fasteners and exhaust connections before removal
• Remove all traces of the original manifold gasket and inspect the cylinder-head sealing surfaces
• Fit new DSF003 exhaust manifold/header gaskets
• Trial-fit both headers before fully tightening the mounting hardware
• Check steering, clutch linkage, engine mounts, starter motor and transmission clearance carefully
• Ram-assist power steering applications require the appropriate PBR4010 steering ram kit
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during installation
• Check all exhaust connections for leaks after installation
• Inspect and re-tighten the header mounting hardware after the initial heat cycles

Warranty & Compliance

Pacemaker PH4010 headers are backed by Pacemaker's 2-year manufacturer warranty, subject to the manufacturer's current warranty terms and conditions.

Vehicle modifications, engine conversions and exhaust changes can affect fitment and roadworthiness. The completed installation must comply with applicable vehicle modification, exhaust noise and roadworthiness requirements.

FAQ

Which Ford Mustangs do Pacemaker PH4010 headers fit?
Pacemaker lists PH4010 for selected 1964-1969 Ford Mustang models fitted with 260, 289 or 302 Windsor V8 engines.

Does PH4010 fit a 260 Windsor Mustang?
Yes. Pacemaker currently lists the 260 V8 as one of the PH4010 Mustang applications.

Does PH4010 fit a 289 Windsor Mustang?
Yes. PH4010 suits applicable Mustang models fitted with the 289 Windsor V8.

Does PH4010 fit a 302 Windsor Mustang?
Yes. PH4010 suits applicable 302 Windsor V8 Mustang applications. The 302 was introduced into the Mustang range during 1968.

Will PH4010 fit a Left Hand Drive Mustang?
Yes, subject to the vehicle's clutch and steering configuration. PH4010 will not fit a Left Hand Drive Mustang with a mechanical clutch.

Will PH4010 fit a Top Loader gearbox?
Yes. Pacemaker specifies PH4010 as suitable for applicable Top Loader gearbox installations.

Will PH4010 fit a Mustang with ram-assist power steering?
The PBR4010 steering ram kit is required for applicable ram-assist power steering installations.

Will PH4010 fit GT40P cylinder heads?
No. PH4010 will not fit GT40P cylinder heads.

Which gasket is recommended?
The recommended exhaust manifold/header gasket set is DSF003, available separately.

Can PH4010 headers be ceramic coated?
Yes. PHC30 ceramic coating is available as an optional upgrade. Please contact us for current pricing and lead time.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
