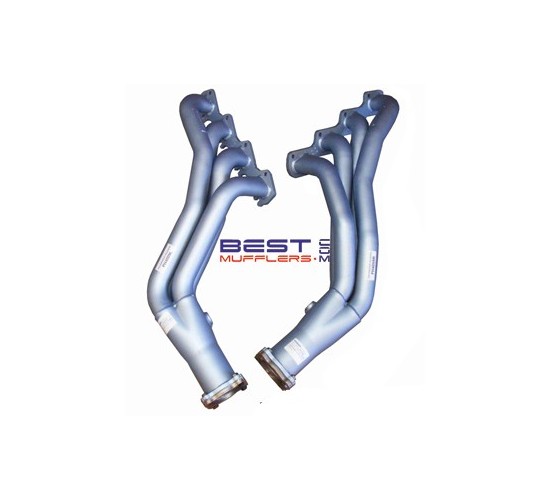

Ford Falcon FG XR8 & GT 5.4L BOSS V8 Pacemaker Competition Headers PH4009

Pacemaker PH4009 exhaust headers (extractors) are a competition-style performance upgrade designed for selected Ford Falcon FG XR8 and GT models fitted with the 5.4L 4V BOSS V8 engine.

Featuring a tuned-length 4-into-1 design with large 48mm mandrel-bent primary pipes and 76mm flanged outlets, PH4009 is designed to improve exhaust gas flow and scavenging for better torque, throttle response and engine performance.

Please check availability and current lead time before ordering.

Key Features

• Designed for selected Ford Falcon FG XR8 & GT applications
• Suits the 5.4L 4V BOSS V8 engine
• Tuned-length 4-into-1 competition header design
• 48mm mandrel-bent primary pipes
• 76mm flanged outlets
• Thick machined flanges for durability and reliable sealing
• Smooth collector design for improved exhaust gas flow and scavenging
• Designed to improve torque, throttle response and engine performance
• Proven Pacemaker performance header construction

Construction

• High-quality steel tubing
• Mandrel-bent 48mm primary pipes for smooth exhaust gas flow
• Strong welded construction for durability
• Thick machined cylinder-head flanges
• Pacemaker Blue heat-resistant finish rated to approximately 800°C

Additional Options

• PHC30 Ceramic Coating: Optional ceramic coating for improved heat management and surface durability
• DSF813: Exhaust manifold/header gasket set available separately
• CAT4018: High-flow catalytic converters available separately
• Matching performance exhaust system available separately
• Professional fitting service available – contact Best Mufflers to arrange installation

Vehicle Fitment

• Make: Ford
• Model: Falcon
• Series: FG
• Models: XR8 & GT
• Engine: BOSS 4V V8
• Engine Capacity: 5.4L
• Fuel: Petrol

Fitment Notes

• Designed for selected Ford Falcon FG XR8 and GT models fitted with the 5.4L 4V BOSS V8 engine
• Protect painted or ceramic-coated surfaces during trial fitting and installation
• Check engine mounts before installation, as worn or collapsed mounts can alter engine position and header clearance
• Clearance may vary where steering, suspension, engine or exhaust components have been modified
• Ensure oxygen sensors and catalytic converters are correctly positioned and retained during installation
• Please check availability and current lead time before ordering.

What’s Included

• PH4009L left-hand header assembly
• PH4009R right-hand header assembly
• Outlet flanges and outlet gaskets for connection to the exhaust system
• 16 header bolts

Recommended With

• DSF813 exhaust manifold/header gasket set
• CAT4018 high-flow catalytic converters
• Matching performance exhaust system where further exhaust flow improvement is required
• PHC30 ceramic coating where additional heat management is desired

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, a 5.4L BOSS V8 theoretically draws in approximately 10,800 litres of intake air per minute and can expel around 32,400 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Apply penetrating lubricant such as WD-40 or similar to manifold studs, bolts and exhaust fasteners before removal
• Remove all traces of the old manifold gaskets and inspect the cylinder-head sealing surfaces
• Fit new DSF813 exhaust manifold/header gaskets
• Trial-fit both header assemblies and check all clearances before fully tightening the mounting hardware
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during trial fitting and installation
• Check clearance around the steering, engine mounts, transmission, starter motor and surrounding components
• Ensure oxygen sensors, catalytic converters and other emissions-control equipment are correctly retained
• Check oxygen sensor wiring for adequate clearance from the headers and other hot exhaust components
• Check all exhaust connections for leaks after installation
• Inspect and re-tighten the header mounting hardware after the initial heat cycles

Warranty & Compliance

Pacemaker headers are covered by the manufacturer's applicable warranty conditions.

Installation must retain the catalytic converters, oxygen sensors and any other emissions-control equipment required for the vehicle. Exhaust and emissions requirements vary between Australian states and territories, and the completed installation must comply with the regulations applicable in your state or territory.

FAQ

Which Ford Falcon does PH4009 suit?
PH4009 is designed for selected Ford Falcon FG XR8 and GT models fitted with the 5.4L 4V BOSS V8 engine.

What type of header is PH4009?
PH4009 is a tuned-length 4-into-1 competition header designed for high exhaust flow and improved scavenging.

What size are the PH4009 header pipes?
PH4009 uses 48mm mandrel-bent primary pipes with 76mm flanged outlets.

Which header gaskets are recommended?
The recommended cylinder-head gasket set is DSF813.

Are high-flow catalytic converters available?
Yes. CAT4018 high-flow catalytic converters are available separately for use with the applicable Pacemaker header and exhaust configuration.

Can PH4009 headers be ceramic coated?
Yes. PHC30 ceramic coating is available as an optional upgrade for improved heat management and surface durability. Please contact us for current pricing and lead time.

What is included with PH4009?
The set includes the PH4009L left header, PH4009R right header, outlet flanges, outlet gaskets and 16 header bolts.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
