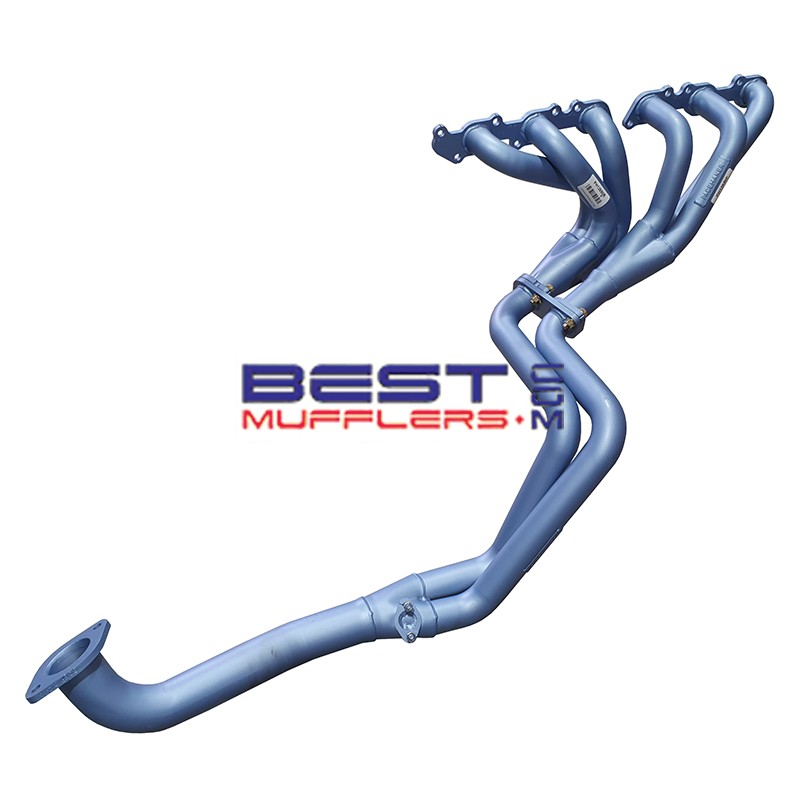

Toyota LandCruiser 80 Series FZJ80R 4.5L 1FZ-FE Pacemaker Headers PH12650 & PHB080P

Pacemaker PH12650 exhaust headers (extractors) with PHB080P base pipe are designed for the Toyota LandCruiser 80 Series FZJ80R fitted with the 4.5L 1FZ-FE petrol engine.

This complete header and base-pipe combination replaces the restrictive factory exhaust manifold and corresponding engine pipe with a performance system designed to improve exhaust gas flow and engine breathing.

Featuring an interference design with 45mm primary pipes, 51mm secondary pipes and a 63mm outlet, PH12650 is designed to improve exhaust flow, torque, throttle response and engine performance while maintaining excellent drivability for street, touring, towing and 4WD applications.

Suitable for applicable Left Hand Drive vehicles.

Key Features

• Designed for the Toyota LandCruiser 80 Series FZJ80R 4.5L 1FZ-FE
• Interference-design performance headers
• Mandrel-bent 45mm primary pipes
• 51mm secondary pipes
• 63mm outlet
• Includes matching PHB080P base pipe
• PHB080P replaces the corresponding factory engine pipe section
• Thick machined flanges for durability and reliable sealing
• Smooth collector design for improved exhaust gas flow and scavenging
• Designed for connection to the applicable factory exhaust system
• Suitable for applicable Left Hand Drive vehicles

Construction

• High-quality steel tubing
• Mandrel-bent pipework for smooth exhaust gas flow
• Quality welded construction
• Thick machined flanges
• Pacemaker Blue heat-resistant finish rated to approximately 800°C
• Australian manufactured by Pacemaker

Additional Options

• PHC60 / PHC90 Ceramic Coating: Ceramic coating options available separately – contact us to confirm the appropriate coating option for the components required
• DSF084: Recommended cylinder-head-to-header exhaust gasket available separately
• TYB202: Exhaust mounting rubbers available separately
• Matching performance exhaust system available separately
• Professional fitting service available – contact Best Mufflers to arrange installation

Vehicle Fitment

• Make: Toyota
• Model: LandCruiser 80 Series
• Series: FZJ80R
• Engine: 1FZ-FE
• Capacity: 4.5L / 4477cc
• Configuration: Inline 6, DOHC, 24 Valve
• Fuel: Petrol
• Steering: Suitable for applicable Left Hand Drive vehicles
• Application: Street / Touring / Towing / 4WD

Header Specifications

• Header Part Number: PH12650
• Base Pipe Part Number: PHB080P
• Design: Interference
• Primary Pipe Size: 45mm
• Secondary Pipe Size: 51mm
• Outlet Size: 63mm

Fitment Notes

• Designed for selected Toyota LandCruiser FZJ80R models fitted with the 4.5L 1FZ-FE petrol engine
• Suitable for applicable Left Hand Drive vehicles
• The PHB080P base pipe connects the PH12650 front and rear header assemblies to the exhaust system
• Designed for connection to the applicable factory exhaust system
• Confirm vehicle and engine configuration before ordering, particularly where the exhaust system or drivetrain has been modified
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during trial fitting and installation
• Check clearance around engine mounts, steering components, wiring and surrounding components during installation
• Clearance may vary where aftermarket or non-original components have been fitted
• Please check availability and current lead time before ordering.

What’s Included

• 1 x Pacemaker PH12650F front header assembly
• 1 x Pacemaker PH12650R rear header assembly
• 1 x Pacemaker PHB080P base pipe
• Gaskets required for the header-to-base-pipe connections

Recommended With

• DSF084 cylinder-head-to-header exhaust gasket
• TYB202 exhaust mounting rubbers
• Matching performance exhaust system where further exhaust flow improvement is required
• PHC60 / PHC90 ceramic coating options

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 4477cc 1FZ-FE six-cylinder engine theoretically draws in approximately 8,954 litres of intake air per minute and can expel around 26,860 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Apply penetrating lubricant to manifold fasteners and exhaust connections before removal
• Remove all traces of the original manifold gasket and inspect the cylinder-head sealing surface
• Fit a new DSF084 cylinder-head-to-header gasket
• Trial-fit the PH12650 header assemblies and PHB080P base pipe before fully tightening the mounting hardware
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during trial fitting and installation
• Check clearance around the steering, engine mounts, starter motor, transmission, wiring and surrounding components
• Check the condition of the engine and transmission mounts, as worn mounts can alter drivetrain position and exhaust clearance
• Check all exhaust connections for leaks after installation
• Inspect and re-tighten the header mounting hardware after the initial heat cycles

Warranty & Compliance

Pacemaker PH12650 headers are backed by Pacemaker's 2-year manufacturer warranty, subject to the manufacturer's current warranty terms and conditions.

For vehicles manufactured from 1986 onwards, the completed exhaust system must retain any emissions-control equipment required for the vehicle and comply with the emissions, roadworthiness and registration requirements applicable in your state or territory.

FAQ

What vehicles do PH12650 headers suit?
Pacemaker PH12650 headers are designed for selected Toyota LandCruiser 80 Series FZJ80R models fitted with the 4.5L 1FZ-FE petrol engine.

What is PHB080P?
PHB080P is the matching base pipe used with PH12650 headers. It connects the front and rear header assemblies to the exhaust system and replaces the corresponding factory engine pipe section.

Is the PHB080P base pipe included?
Yes. This package includes the PH12650 front and rear header assemblies together with the PHB080P base pipe.

What size are the PH12650 header pipes?
PH12650 uses 45mm primary pipes, 51mm secondary pipes and a 63mm outlet.

Will PH12650 fit Left Hand Drive LandCruisers?
Yes. PH12650 is suitable for applicable Left Hand Drive FZJ80 applications.

Will the system connect to the factory exhaust?
Yes. When used with the PHB080P base pipe, the package is designed for connection to the applicable factory exhaust system.

Which cylinder-head gasket is recommended?
The recommended cylinder-head-to-header exhaust gasket is DSF084, available separately.

Are the header-to-base-pipe gaskets included?
Yes. The required gaskets for connecting the PH12650 header assemblies to the PHB080P base pipe are included.

Can PH12650 headers be ceramic coated?
Yes. Ceramic coating options are available under PHC60 / PHC90. Please contact us to confirm the appropriate coating option, current pricing and lead time.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
