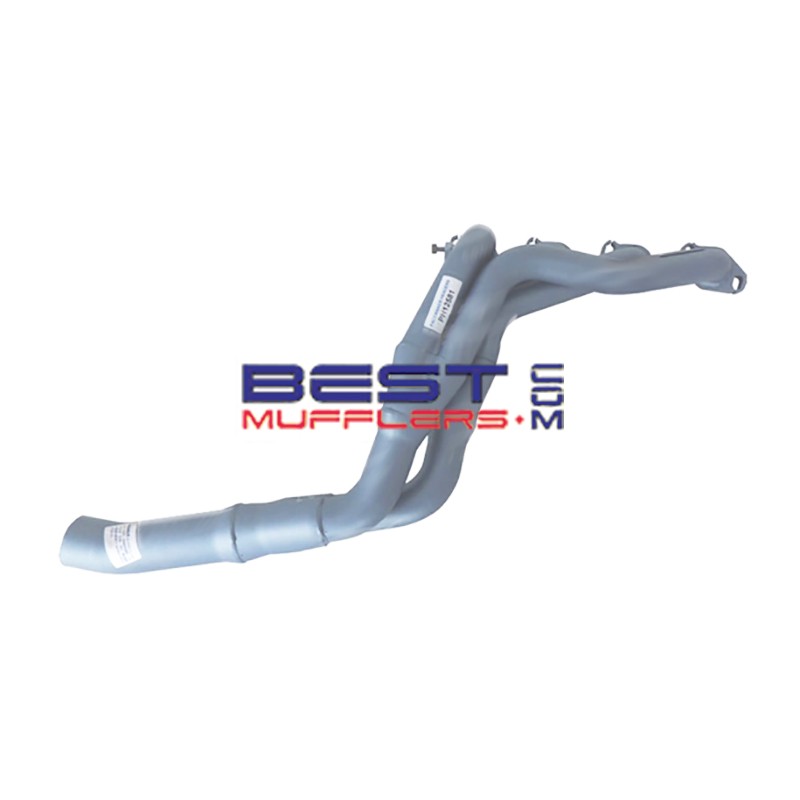

Toyota Hilux & 4Runner 2003-On 3.0L 5L Diesel EGR Pacemaker Headers PH12581

Pacemaker PH12581 exhaust headers (extractors) are designed for selected Toyota Hilux and 4Runner models from 2003 onwards fitted with the 3.0L 5L diesel engine with EGR.

Featuring an interference design with mandrel-bent 42mm primary pipes, 48mm secondary pipes and a 57mm outlet, PH12581 replaces the restrictive factory exhaust manifold with a performance header designed to improve exhaust gas flow and scavenging for better torque, throttle response and engine performance.

Important: PH12581 is designed for the applicable 5L diesel engine with EGR. Confirm the engine and EGR configuration before ordering.

Key Features

• Designed for selected Toyota Hilux & 4Runner 3.0L 5L diesel applications with EGR
• Interference-design performance headers
• Mandrel-bent 42mm primary pipes
• 48mm secondary pipes
• 57mm outlet
• Thick machined flanges for durability and reliable sealing
• Smooth collector design for improved exhaust gas flow and scavenging
• Designed to retain the applicable EGR configuration
• Suitable for applicable Left Hand Drive vehicles
• Suitable for vehicles fitted with factory air conditioning

Construction

• High-quality steel tubing
• Mandrel-bent pipework for smooth exhaust gas flow
• Quality welded construction for strength and durability
• Thick machined flanges
• Pacemaker Blue heat-resistant finish rated to approximately 800°C
• Australian manufactured by Pacemaker

Additional Options

• PHC30 Ceramic Coating: Optional ceramic coating for improved heat management, surface durability and corrosion resistance
• DSF052: Recommended exhaust manifold/header gasket available separately
• Matching exhaust components may be available separately – contact Best Mufflers for advice
• Professional fitting service available – contact Best Mufflers to arrange installation

Vehicle Fitment

• Make: Toyota
• Model: Hilux / 4Runner
• Year: 2003-On
• Engine: 5L Diesel
• Capacity: 3.0L
• Emissions Equipment: EGR
• Steering: Suitable for applicable Left Hand Drive vehicles
• Air Conditioning: Suitable for factory air conditioning

Header Specifications

• Part Number: PH12581
• Design: Interference
• Primary Pipe Size: 42mm
• Secondary Pipe Size: 48mm
• Outlet Size: 57mm
• Engine: Toyota 5L 3.0L Diesel
• EGR: Designed for applicable EGR-equipped application

Fitment Notes

• Designed for selected Toyota Hilux and 4Runner 3.0L 5L diesel applications with EGR
• Confirm the engine is the 5L diesel and that the vehicle uses the applicable EGR configuration before ordering
• Will fit applicable Left Hand Drive vehicles
• Will fit vehicles with factory air conditioning
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during trial fitting and installation
• Check clearance around engine mounts, steering components, starter motor and surrounding components during installation
• Clearance may vary where non-original engine mounts, steering components or aftermarket parts have been fitted
• Check all EGR connections and associated components during installation
• Please check availability and current lead time before ordering.

What’s Included

• 1 x Pacemaker PH12581 header assembly

Recommended With

• DSF052 exhaust manifold/header gasket
• Matching intermediate pipes, joiners or adaptors where required
• Matching performance exhaust system where further exhaust flow improvement is required
• PHC30 ceramic coating where additional heat management is desired

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 3.0L Toyota 5L diesel engine theoretically draws in approximately 6,000 litres of intake air per minute and can expel around 18,000 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Apply penetrating lubricant to manifold fasteners and exhaust connections before removal
• Remove all traces of the original manifold gasket and inspect the cylinder-head sealing surface
• Fit a new DSF052 exhaust manifold/header gasket
• Trial-fit the header and confirm all EGR connections and clearances before fully tightening the mounting hardware
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during trial fitting and installation
• Check clearance around the steering, engine mounts, starter motor, transmission, wiring and surrounding components
• Check all exhaust and EGR connections after installation
• Check the exhaust system for leaks after installation
• Inspect and re-tighten the header mounting hardware after the initial heat cycles

Warranty & Compliance

Pacemaker PH12581 headers are backed by Pacemaker's 2-year manufacturer warranty, subject to the manufacturer's current warranty terms and conditions.

The vehicle's required EGR and other emissions-control equipment must remain correctly installed and operational. The completed exhaust system must comply with the emissions, roadworthiness and registration requirements applicable in your state or territory.

FAQ

Which vehicles do Pacemaker PH12581 headers fit?
PH12581 is designed for selected Toyota Hilux and 4Runner models from 2003 onwards fitted with the 3.0L 5L diesel engine with EGR.

What is the difference between PH12580 and PH12581?
PH12581 is specifically designed for the applicable later 3.0L 5L diesel application with EGR. PH12580 covers earlier selected Toyota 2L, 3L and 5L diesel applications. Confirm the engine and EGR configuration before ordering.

Does PH12581 retain the EGR system?
PH12581 is designed for the applicable EGR-equipped 5L diesel application. The vehicle's required EGR and emissions-control equipment must remain correctly connected and operational.

Will PH12581 fit Left Hand Drive vehicles?
Yes. PH12581 is suitable for applicable Left Hand Drive applications.

Will PH12581 fit with factory air conditioning?
Yes. PH12581 is suitable for applicable vehicles fitted with factory air conditioning.

What size are the PH12581 header pipes?
PH12581 uses 42mm primary pipes, 48mm secondary pipes and a 57mm outlet.

Which exhaust gasket is recommended?
The recommended exhaust manifold/header gasket is DSF052, available separately.

Can PH12581 headers be ceramic coated?
Yes. PHC30 ceramic coating is available as an optional upgrade for improved heat management and surface durability. Please contact us for current pricing and lead time.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
