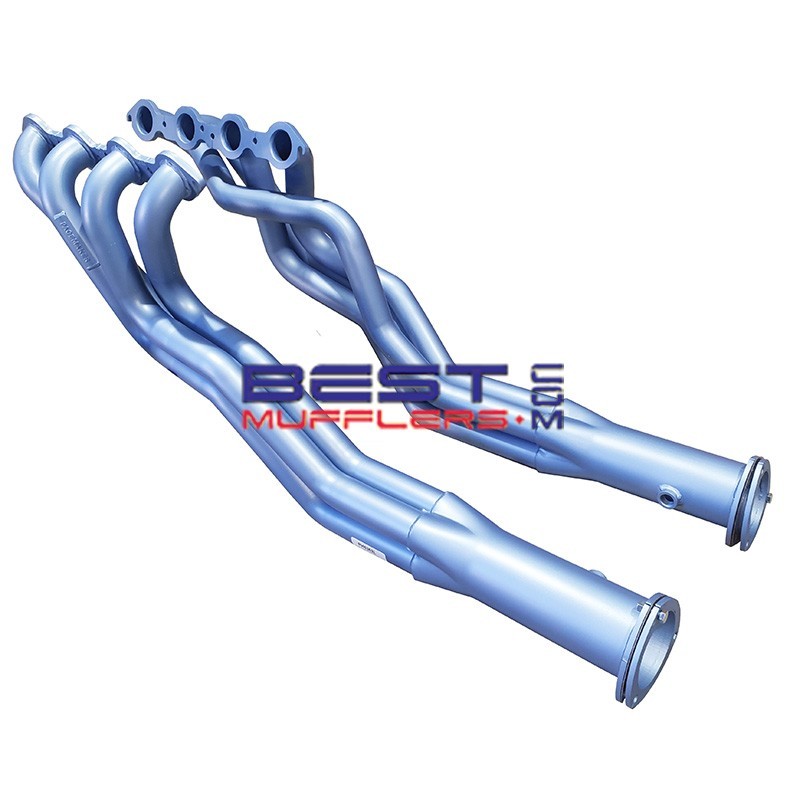

Holden Commodore VT VX VY VZ 5.7L LS1 6.0L LS2 Pacemaker Competition Headers PH5363
search

Holden Commodore VT VX VY VZ 5.7L LS1 6.0L LS2 Pacemaker Competition Headers PH5363

$1,220.59
Tax included

Holden Commodore VT VX VY VZ 5.7L LS1 6.0L LS2 1997-2003 Engine V8 5.7 Litre LS1 (Gen III) Pacemaker competition headers (extractors). 1 7/8" [48mm] primary pipes and 3.00" [76mm] outlets.
Click Image for larger view and more images
Best Mufflers provides expert advice and ships Australia-wide and internationally.

Quantity
In Stock

Holden Commodore VT VX VY VZ 5.7L LS1 6.0L LS2 Pacemaker Competition Headers PH5363

SKU: PH5363 Pacemaker Headers for Holden Commodore VT VX VY VZ 5.7L LS1 6.0L LS2. These headers use 1 7/8" [48mm] primary pipes and 3.00" [76mm] outlets to improve exhaust flow, torque and throttle response.

Jump to: Fitment | Specifications | Warranty | FAQ

Vehicle Fitment

MakeModelYearsBodySeriesEngineDrivetrain
HoldenCommodore / Stateman/Caprice1997-2003Sedan / Wagon / UteVT, VX, VY, WH, WKEngine V8 5.7 Litre LS1 (Gen III)RWD

Fitment Notes

  • This kit has no Oxygen Sensor Wiring Loom Extensions . These are required for Commodore models VY Series II and VZ and Statesman/Caprice models WK Series II and WL. Click on the links below for the right kit.
  • For VY Series II Commodore or WK Series II Statesman/Caprice you need Part No. (PH5363 L/R VY Series 2)
  • For VZ or WL 5.7Ltr LS1 Engine cars your need Part No. ( PH5363 L/R VZ 5.7L )
  • For VZ or WL 6Ltr LS2 Engine cars your need Part No. (PH5363 L/R VZ 6L)
  • Designed for Modified Engines and Super Charged Applications
  • Will not fit All Wheel Drive Commodore's - Refer to Part No. ( PH5366 ) for Adventra and Cross 8 AWD Headers
  • Confirm the vehicle, engine, transmission and existing modifications before ordering.
  • Verify emissions, noise and vehicle registration compliance in your state or territory before installation.

Specifications

Header Details
Part number SKU: PH5363
Brand Pacemaker
Design 4-1 Tuned Length Design
Primary pipes 1 7/8" [48mm]
Outlet 3.00" [76mm]
Finish Pacemaker Blue heat-resistant coating
Power steering Yes
Air conditioning Yes
Oxygen sensor fittings Incorporated into the headers
Header gasket DSF138 header gaskets, sold separately

What's Included and Recommended With

  • PH5363 Pacemaker headers.
  • Oxygen sensor fittings incorporated into the headers.
  • DSF138 header gaskets are available separately and are recommended for a reliable seal.
  • Ceramic coating is available as an optional upgrade. See PHC40.

Why Good Headers & Exhaust Systems Matter

A 6.0L LS V8 draws in about 10,200 L/min of air at 4,000 rpm and 85% volumetric efficiency, and expels an estimated 30,600 L/min of exhaust gas at 600°C.

Good quality headers and a correctly sized exhaust system help reduce exhaust restriction, improve exhaust scavenging, increase torque and engine performance.

Warranty & Compliance

Pacemaker headers are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions. The warranty applies to the supplied parts and does not cover labour, freight, removal, refitting or consequential costs.

Correct installation, adequate clearance, proper engine tuning and secure exhaust support are essential for warranty coverage. Vehicle modifications and exhaust requirements vary between states. The completed installation must comply with the roadworthy and emissions rules that apply where the vehicle is registered.

Frequently Asked Questions

What vehicles do PH5363 headers suit?

PH5363 suits Holden Commodore VT VX VY VZ 5.7L LS1 6.0L LS2 fitted with the Engine V8 5.7 Litre LS1 (Gen III). Confirm your vehicle, engine, transmission and existing modifications before ordering.

What size are the PH5363 header pipes?

Pacemaker specifies 1 7/8" [48mm] primary pipes and 3.00" [76mm] outlets.

Which exhaust gasket is recommended?

The recommended exhaust manifold/header gasket is DSF138, available separately.

Can you arrange for the PH5363 headers to be ceramic coated?

Yes. If you require ceramic coating for these headers see PHC40 for pricing details.

Can I pick up from the store?

Yes. Pick up is available but must be pre-arranged before collection. Contact Best Mufflers to confirm availability before travelling.

How much is freight?

Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?

Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
