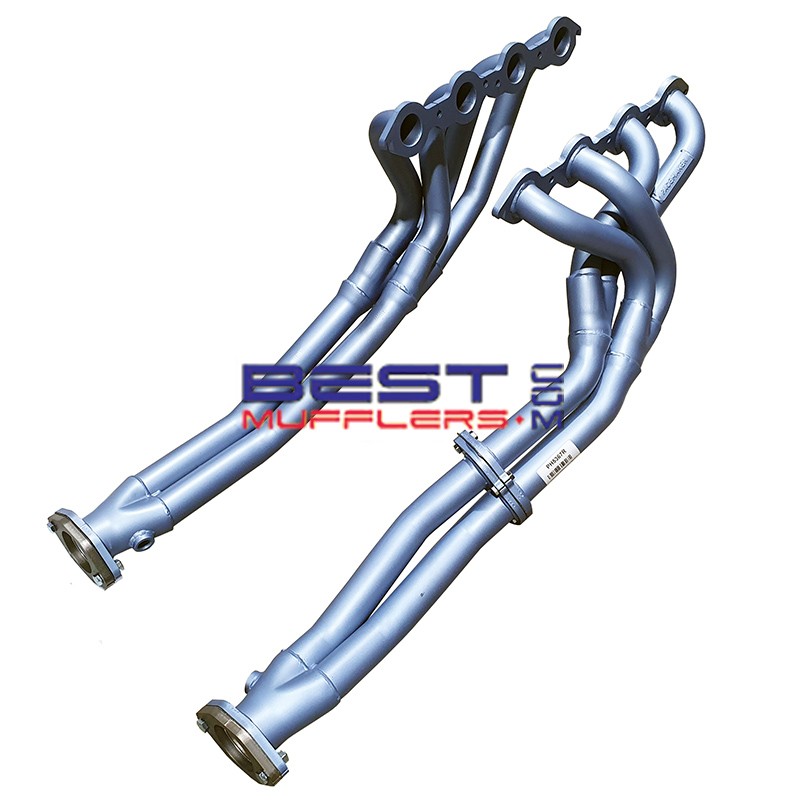

Holden Commodore VT VX VY VZ 5.7L LS1 6.0L LS2 Pacemaker Headers PH5367

Pacemaker PH5367 headers (extractors) are designed for selected Holden Commodore VT Series II, VX, VY and VZ models fitted with the 5.7L LS1 or 6.0L LS2 V8.

Featuring Pacemaker's Tri-Y header design, PH5367 uses 41mm primary pipes feeding into 48mm secondary pipes with 63mm flanged outlets. The system is designed to improve exhaust flow, scavenging, torque, throttle response and engine performance.

Pacemaker offers several PH5367 configurations to accommodate differences in the oxygen-sensor wiring between VT Series II-VY Series I, VY Series II, VZ 5.7L and VZ 6.0L vehicles.

NOT suitable for AWD Adventra or Cross 8 models – Pacemaker specifies PH5366 for the AWD application.

Please check availability and current lead time before ordering.

Key Features

• Pacemaker Tri-Y header design
• Suits selected Holden Commodore VT Series II, VX, VY and VZ models
• Suits 5.7L LS1 Gen III V8
• Suits selected VZ 6.0L LS2 V8 applications
• Manual and automatic transmission compatible
• 41mm (1⅝") primary pipes
• 48mm (1⅞") secondary pipes
• 63mm (2½") flanged outlets
• Power steering compatible
• Air conditioning compatible
• Oxygen sensor provision
• Designed for modified and supercharged applications

Construction

Pacemaker PH5367 uses a Tri-Y configuration with 41mm (1⅝") primary pipes feeding into 48mm (1⅞") secondary pipes with 63mm (2½") flanged outlets.

The standard Pacemaker finish uses the distinctive Pacemaker Blue heat-resistant coating, designed to withstand high exhaust temperatures.

Additional Options

Ceramic Coating: PHC20 ceramic coating may be available for improved heat management and corrosion resistance. Please contact Best Mufflers for current availability.

DSF138: Replacement cylinder-head exhaust gaskets are available separately.

Oxygen Sensor Wiring Extensions: Different PH5367 versions are required for later vehicles because of oxygen-sensor wiring location and length. Confirm the exact vehicle series and engine before ordering.

Vehicle Fitment

• Make: Holden
• Model: Commodore
• Series: VT Series II / VX / VU / VY / VZ
• Engine: 5.7L LS1 Gen III V8
• Engine: 6.0L LS2 V8 – selected VZ applications
• Transmission: Manual / Automatic
• Drive: Rear-Wheel Drive

IMPORTANT: PH5367 is NOT suitable for AWD Commodore-based models including Adventra and Cross 8. Pacemaker specifies PH5366 for these AWD applications.

PH5367 Application Variations

VT Series II, VX, VU & VY Series I – 5.7L LS1:
Uses the standard PH5367 L/R VT-VY Series I configuration. This version does not include the later oxygen-sensor wiring loom extensions.

VY Series II – 5.7L LS1:
Requires the PH5367 VY Series II configuration with oxygen-sensor wiring loom extensions to suit the later sensor positioning.

VZ – 5.7L LS1:
Requires the dedicated PH5367 VZ 5.7L configuration with the appropriate oxygen-sensor wiring loom extensions.

VZ – 6.0L LS2:
Requires the dedicated PH5367 VZ 6.0L configuration with the appropriate oxygen-sensor wiring loom extensions.

Please provide your exact Commodore model, series, engine capacity and year when ordering so the correct PH5367 configuration can be supplied.

Header Specifications

• Part Number: PH5367 L/R
• Brand: Pacemaker
• Design: Tri-Y
• Primary Pipe: 41mm (1⅝")
• Secondary Pipe: 48mm (1⅞")
• Outlet: 63mm (2½") flanged
• Power Steering: Yes
• Air Conditioning: Yes
• Oxygen Sensor Provision: Yes
• EGR: N/A
• Replacement Gasket: DSF138
• Approximate Fitting Time: 2½ hours

Fitment Notes

VT Application: PH5367 applies to the VT Series II 5.7L LS1. Earlier VT Series I V8 models used the Holden 5.0L engine and are not part of this PH5367 LS application.

VY Series II: Oxygen-sensor wiring extensions are required. Use the correct PH5367 VY Series II configuration.

VZ 5.7L: Use the dedicated PH5367 VZ 5.7L configuration with the appropriate oxygen-sensor extensions.

VZ 6.0L: Use the dedicated PH5367 VZ 6.0L configuration with the appropriate oxygen-sensor extensions.

AWD: PH5367 will not fit AWD Commodore-based applications. Pacemaker specifies PH5366 for Adventra and Cross 8 AWD models.

Modified Engines: Pacemaker specifically lists PH5367 as suitable for modified and supercharged applications.

What's Included

• Pacemaker PH5367L left-side header assembly
• Pacemaker PH5367R right-side header assembly
• Oxygen-sensor wiring extensions where supplied with the applicable VY Series II or VZ PH5367 configuration

Gaskets, header bolts and other installation hardware should not be assumed to be included unless specifically confirmed with the selected PH5367 kit before ordering.

Recommended With

DSF138 – replacement cylinder-head exhaust gaskets.

Pacemaker High-Flow Catalytic Converters: CAT5367-100 or CAT5361-300 may be available depending on the particular vehicle and exhaust configuration. Confirm the appropriate catalytic converter before ordering.

BOL02-10 – replacement header bolts where applicable.

A matching Pacemaker performance exhaust system may also be available depending on body style and model.

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 5.7L LS1 V8 theoretically draws approximately 11,400 litres of intake air per minute at 100% volumetric efficiency and expels around 34,200 litres of hot exhaust gas per minute at approximately 600°C.

At the same engine speed, the 6.0L LS2 V8 theoretically draws approximately 12,000 litres of intake air per minute and expels around 36,000 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Before installation, confirm the exact vehicle series, engine capacity and oxygen-sensor configuration.

Protect the header finish during trial fitting and check clearance around the steering, starter motor, transmission, engine mounts and other components before final tightening.

Ensure oxygen-sensor wiring is routed safely away from the headers and other high-temperature components.

Professional installation is recommended.

Warranty & Compliance

Pacemaker headers are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions.

All catalytic converters, oxygen sensors and other emissions-control equipment required for the vehicle must remain correctly installed and operational.

Installation must comply with applicable Australian state or territory requirements relating to emissions, exhaust noise and vehicle modifications.

FAQ

What Holden Commodores do PH5367 headers fit?
PH5367 is available for selected VT Series II, VX, VU, VY and VZ models fitted with the 5.7L LS1 V8, plus selected VZ models fitted with the 6.0L LS2 V8.

Are PH5367 headers an interference design?
No. Pacemaker currently specifies PH5367 as a Tri-Y header design.

What size are PH5367 headers?
Pacemaker specifies 41mm (1⅝") primary pipes, 48mm (1⅞") secondary pipes and 63mm (2½") outlets.

Does PH5367 fit both manual and automatic Commodores?
Yes. Pacemaker lists PH5367 for both manual and automatic transmission applications.

Does PH5367 fit a VT Series I 5.0L V8?
No. PH5367 is an LS-family application beginning with the VT Series II 5.7L LS1. The earlier Holden 5.0L V8 requires a different header application.

Do VY Series II models require oxygen-sensor wiring extensions?
Yes. Pacemaker supplies a specific PH5367 VY Series II configuration incorporating the required oxygen-sensor wiring loom extensions.

Does the VZ 5.7L use the same PH5367 kit as the VZ 6.0L?
No. Pacemaker lists separate PH5367 configurations for the VZ 5.7L LS1 and VZ 6.0L LS2. Select the correct version for the engine.

Will PH5367 fit an Adventra or Cross 8?
No. PH5367 does not fit the AWD application. Pacemaker specifies PH5366 for Adventra and Cross 8 AWD models.

What gasket suits PH5367?
Pacemaker specifies DSF138.
