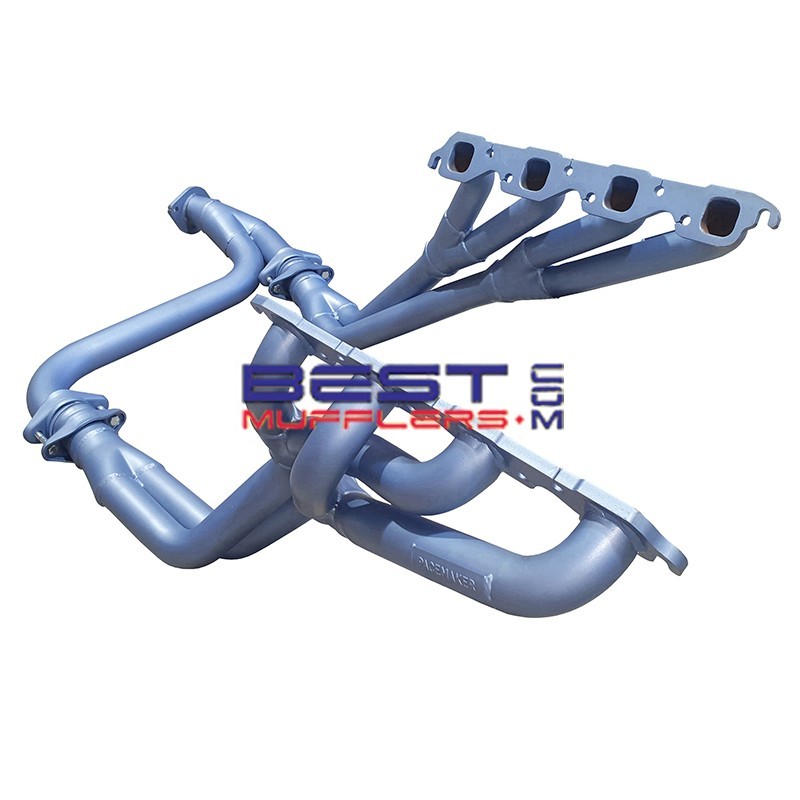

Holden Commodore VN VP VR VS 5.0L EFI V8 Automatic Pacemaker Headers PH5000A

Pacemaker PH5000A headers (extractors) are designed for Holden Commodore VN, VP, VR and VS models from 1988 to 1997 fitted with the 5.0L EFI Holden V8 and automatic transmission.

Featuring Pacemaker's proven Tri-Y header design, PH5000A is engineered to improve exhaust flow and scavenging while providing strong low-to-mid-range torque, improved throttle response and better engine breathing.

The headers use 41mm (1⅝") primary pipes, 48mm (1⅞") secondary pipes and a 63mm (2½") outlet.

Please check availability and current lead time before ordering.

Key Features

• Suits Holden Commodore VN, VP, VR and VS
• 1988-1997 standard automatic application
• Suits 5.0L EFI Holden V8
• Tri-Y header design
• 41mm (1⅝") primary pipes
• 48mm (1⅞") secondary pipes
• 63mm (2½") outlet
• Power steering compatible – excluding variable-ratio power steering
• Air-conditioning compatible
• Oxygen sensor provision
• Fits both Bosch starter motor configurations
• Y-branch/base pipe configuration

Construction

Pacemaker PH5000A uses performance header pipework with Pacemaker's Tri-Y configuration. The system uses 41mm primary pipes feeding into 48mm secondary pipes before transitioning to the 63mm outlet.

The standard Pacemaker finish uses the distinctive Pacemaker Blue heat-resistant coating, designed to withstand temperatures up to approximately 800°C.

Additional Options

Ceramic Coating: Ceramic-coated options may be available for improved heat management and corrosion resistance. Please contact Best Mufflers for current options and availability.

DSF063: Replacement cylinder-head exhaust gaskets are available separately.

Vehicle Fitment

• Make: Holden
• Model: Commodore
• Series: VN / VP / VR / VS
• Standard Application: 1988-1997
• Engine: 5.0L EFI Holden V8
• Transmission: Automatic
• Special Application: VS Series III Ute with Getrag 5-speed manual

IMPORTANT: PH5000A will NOT fit vehicles equipped with variable-ratio power steering.

Header Specifications

• Part Number: PH5000A
• Brand: Pacemaker
• Design: Tri-Y
• Primary Pipe: 41mm (1⅝")
• Secondary Pipe: 48mm (1⅞")
• Outlet: 63mm (2½")
• Power Steering: Yes – excluding variable-ratio power steering
• Air Conditioning: Yes
• Oxygen Sensor: Yes
• EGR: N/A
• Y Branch: Yes
• Replacement Gasket: DSF063

Fitment Notes

VN-VS Automatic: PH5000A is Pacemaker's standard application for VN, VP, VR and VS Commodore 5.0L EFI V8 models with automatic transmission from 1988-1997.

Variable-Ratio Power Steering: PH5000A will NOT fit vehicles equipped with variable-ratio power steering. Pacemaker lists a separate PH5000V application for appropriate VN-VS Calais, Caprice and Statesman vehicles using variable-ratio steering.

Starter Motor: PH5000A is compatible with both Bosch starter motor configurations listed by Pacemaker.

Six-Speed Manual: PH5000A is not the normal six-speed manual application. Pacemaker specifies PH5002 for vehicles fitted with a six-speed manual transmission.

VS Series III Ute – Getrag 5-Speed: Pacemaker specifically lists PH5000A for the VS Series III Ute fitted with the Getrag 5-speed manual transmission.

VS Series III Ute Automatic: PH5000A can suit the automatic VS Series III Ute, but will NOT fit vehicles fitted with the uncommon full-circle bellhousing. Confirm the bellhousing configuration before ordering.

What's Included

• Pacemaker PH5000L left-side header assembly
• Pacemaker PH5000R right-side header assembly
• PH5000A automatic Y-branch/base pipe assembly

Gaskets and other installation hardware should not be assumed to be included unless specifically confirmed when ordering.

Recommended With

DSF063 – replacement cylinder-head exhaust gasket set.

Inspect the existing catalytic converter, exhaust joints, engine mounts and exhaust mounting components before installation and replace worn components where required.

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 5.0L Holden V8 theoretically draws approximately 10,000 litres of intake air per minute at 100% volumetric efficiency and expels around 30,000 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Before installation, confirm the vehicle's transmission and power-steering configuration. PH5000A is not suitable for vehicles with variable-ratio power steering.

Lubricate manifold fasteners with WD-40 or a similar penetrating lubricant before removal. Protect the header finish during trial fitting and avoid tightening individual components fully until the complete system is correctly positioned.

Because VN-VS Commodores are now older vehicles, inspect engine mounts, transmission mounts, steering components and any previous exhaust modifications before installation.

Professional installation is recommended.

Warranty & Compliance

Pacemaker headers are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions.

Any catalytic converter, oxygen sensor and other emissions-control equipment required for the vehicle must remain correctly installed and operational.

Installation must comply with applicable Australian state or territory requirements relating to emissions, exhaust noise and vehicle modifications.

FAQ

What Commodores does PH5000A fit?
PH5000A is Pacemaker's standard application for Holden Commodore VN, VP, VR and VS 5.0L EFI V8 models with automatic transmission from 1988-1997.

Are PH5000A headers Tri-Y?
Yes. Pacemaker specifies PH5000A as a Tri-Y design.

What size are PH5000A headers?
Pacemaker specifies 41mm (1⅝") primary pipes, 48mm (1⅞") secondary pipes and a 63mm (2½") outlet.

Will PH5000A fit variable-ratio power steering?
No. Pacemaker specifically states that PH5000A will not fit vehicles with variable-ratio power steering.

Will PH5000A fit both Bosch starter motors?
Yes. Pacemaker lists PH5000A as compatible with both Bosch starter motor configurations.

Will PH5000A fit a six-speed manual?
No. Pacemaker specifies PH5002 for the six-speed manual application.

Will PH5000A fit a VS Series III Ute with a Getrag 5-speed manual?
Yes. Although PH5000A is primarily the automatic application, Pacemaker specifically lists it for the VS Series III Ute with the Getrag 5-speed manual transmission.

Will PH5000A fit an automatic VS Series III Ute?
Yes, subject to bellhousing configuration. It will not fit an automatic Series III Ute fitted with the uncommon full-circle bellhousing.

What gasket suits PH5000A?
Pacemaker specifies DSF063 for this header application.
