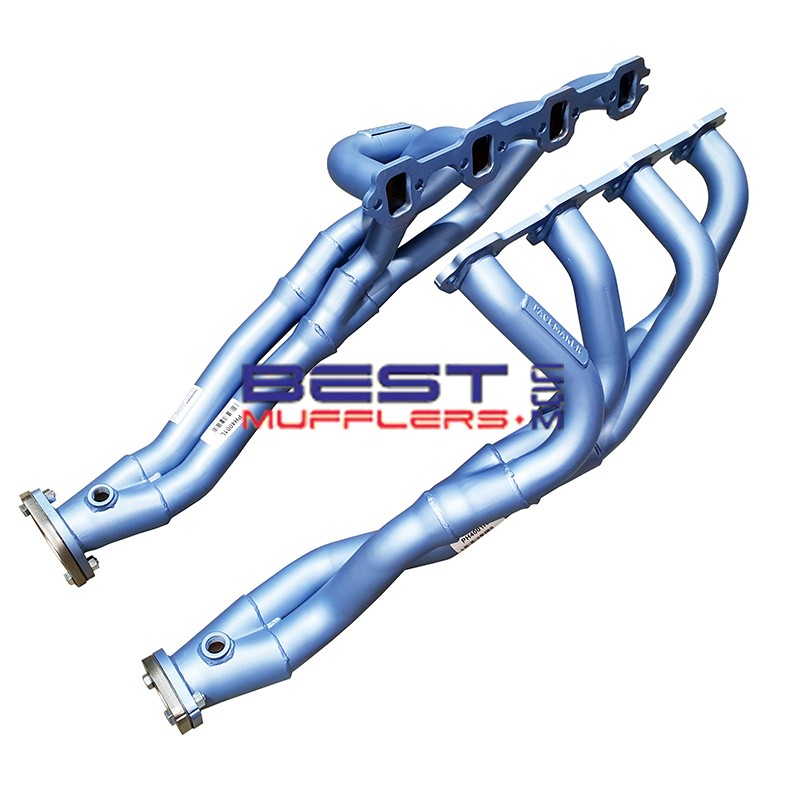

Ford Falcon AU XR8 TE50 1998-2002 5.0L Windsor V8 Pacemaker Headers PH4001

Pacemaker PH4001 headers (extractors) are designed for Ford Falcon AU 1998-2002 models, including XR8 and TE50 applications, fitted with the 5.0L EFI Windsor V8.

PH4001 uses Pacemaker's Tri-Y design with 41mm (1⅝") primary pipes, 48mm (1⅞") secondary pipes and 57mm (2¼") flanged outlets. The Tri-Y configuration is designed to improve exhaust flow and scavenging while providing strong usable torque and throttle response for street-driven Windsor V8 applications.

IMPORTANT – PH4001 is an AU Falcon application and will not fit E-Series Falcon models.

Not sure which headers to use for your Windsor engine? Read our Ford Windsor header guide here.

Please check availability and current lead time before ordering.

Key Features

• Designed for Ford Falcon AU 5.0L EFI Windsor V8 applications
• Tri-Y header design
• 41mm (1⅝") primary pipes
• 48mm (1⅞") secondary pipes
• 57mm (2¼") flanged outlets
• Manual and automatic transmission compatible
• Power steering compatible
• Air conditioning compatible
• Oxygen sensor provision
• Designed to improve exhaust flow, scavenging, torque and throttle response

Vehicle Fitment

• Make: Ford
• Model: Falcon AU
• Years: 1998-2002
• Applications: Including XR8 and TE50
• Engine: 5.0L EFI Windsor V8
• Capacity: 302ci / 5.0L
• Transmission: Manual / Automatic

Header Specifications

• Part Number: PH4001L/R
• Design: Tri-Y
• Primary Pipe: 41mm (1⅝")
• Secondary Pipe: 48mm (1⅞")
• Outlet: 57mm (2¼")
• Power Steering: Yes
• Air Conditioning: Yes
• Oxygen Sensor: Yes
• EGR: N/A
• Recommended Gasket: DSF3A
• Approximate Fitting Time: 2½ hours

Construction

Pacemaker PH4001 headers use mandrel-bent pipework and a vehicle-specific Tri-Y configuration developed for the Ford Falcon AU 5.0L EFI Windsor V8 application.

The standard headers are supplied in Pacemaker's protective blue finish. Ceramic coating is also available separately for customers wanting additional heat management and corrosion protection.

Additional Options

• Ceramic Coating: Available separately – please contact us for the current coating option
• Header Gaskets: DSF3A – available separately

Fitment Notes

• Designed for Ford Falcon AU 1998-2002 models fitted with the 5.0L EFI Windsor V8.
• Will not fit E-Series Falcon models.
• Suits manual and automatic transmission applications.
• Power steering and air conditioning compatible.
• Oxygen sensor provision is incorporated into the application.
• Confirm engine and cylinder-head configuration before ordering where the vehicle has been modified.
• Protect painted surfaces during trial fitting.
• Check starter motor, steering, engine mounts, wiring and surrounding components for adequate clearance during installation.
• Non-original engine mounts, steering components or other aftermarket modifications can affect header clearance.
• Professional installation is recommended.

What's Included

• Pacemaker PH4001L left-hand header assembly
• Pacemaker PH4001R right-hand header assembly

Gaskets, bolts, outlet flanges and other installation hardware should not be assumed included unless specifically confirmed with the current PH4001 package supplied.

Recommended With

• DSF3A: Header gasket set
• Matching high-flow catalytic converters
• Suitable downstream exhaust connections to match the 57mm (2¼") header outlets

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 5.0L 302 Windsor V8 theoretically draws approximately 10,000 litres of intake air per minute at 100% volumetric efficiency and expels around 30,000 litres of hot exhaust gas per minute at approximately 600°C.

Actual airflow varies with RPM, engine load, volumetric efficiency, intake restriction, camshaft specification and engine condition. These figures are theoretical values intended to illustrate the substantial volume of gas that must pass through the exhaust system at higher engine speeds.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Warranty & Compliance

Pacemaker headers are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions.

The vehicle's catalytic converters, oxygen sensors and other emissions-control equipment must remain correctly installed and operational where required. Check applicable state or territory requirements covering exhaust modifications, emissions, vehicle noise and roadworthiness.

FAQ

What vehicles do PH4001 headers suit?
Pacemaker PH4001 headers suit Ford Falcon AU 1998-2002 models, including XR8 and TE50 applications, fitted with the 5.0L EFI Windsor V8.

Are PH4001 headers Tri-Y?
Yes. Pacemaker currently specifies PH4001 as a Tri-Y design.

What size are the PH4001 header pipes?
PH4001 uses 41mm (1⅝") primary pipes, 48mm (1⅞") secondary pipes and 57mm (2¼") outlets.

Will PH4001 fit an EB, ED, EF or EL Falcon?
No. Pacemaker specifically states that PH4001 will not fit E-Series models. For applicable EB-EL 5.0L EFI Windsor applications, see Pacemaker PH4000.

What is the difference between PH4001 and PH4006?
Both are AU 5.0L EFI Windsor applications, but PH4001 uses a Tri-Y design with 41mm primaries, 48mm secondaries and 57mm outlets. PH4006 is Pacemaker's tuned-design AU header and is specifically listed as suitable for stroked or supercharged engines. Confirm the engine combination and intended use before choosing between them.

Do PH4001 headers suit manual and automatic transmissions?
Yes. Pacemaker specifies PH4001 for both manual and automatic applications.

Are header gaskets available?
Yes. Pacemaker currently specifies DSF3A for PH4001.

Are high-flow catalytic converters available?
Yes. Matching high-flow catalytic converters are available separately. Please contact us to confirm the correct components for your vehicle and exhaust configuration.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
