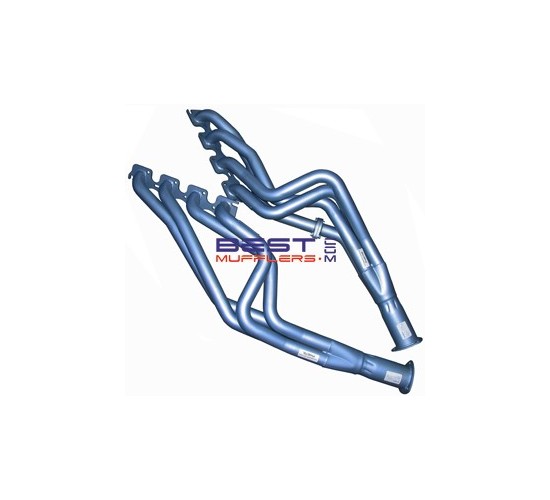

Pacemaker Headers PH4080 – Ford Falcon XA–XE 302 & 351 2V Cleveland

Pacemaker PH4080 headers (extractors) are a high-performance upgrade for Ford Falcon XA, XB, XC, XD and XE fitted with 302 and 351 2V Cleveland V8 engines. Designed for improved exhaust flow and increased output, these headers strengthen torque, sharpen throttle response, and deliver a deeper, more aggressive exhaust note.

With larger primary and collector sizing compared to standard designs, PH4080 headers are well suited to higher-output Cleveland builds requiring improved airflow and reduced restriction, while maintaining reliable fitment and durability.

Key Features

• High performance header design for modified and high-output applications
• Mandrel-bent 48mm primary pipes with 90mm flanged outlets
• Thick, machined flanges for durability and leak-free sealing
• Smooth merge collectors for improved scavenging and power delivery

Construction

• High-quality steel tubing with precision welding for long service life
• Pacemaker Blue heat-resistant finish rated to 800°C
• Australian made for proven fit and performance

Additional Options

• Ceramic Coating: See product code "PHC40"
• Gasket: See product code "DSF027"

Fitment Notes

• Will fit F.M.X automatic
• Will not fit C6 automatic
• Will not fit column change manual & automatic
• Suits 2V Cleveland heads; not designed for 4V or non-Cleveland applications
• For a scratch-free install, protect painted surfaces and wrap the headers during trial fitment
• Clearance may vary depending on engine mounts, steering, and aftermarket components; minor adjustment may be required
• Due to the tight engine bay design of early Falcons, clearance near the gearbox crossmember on the right-hand side may be minimal in some applications
• Large Item: Contact Us for freight charges before ordering

What’s Included

• Pacemaker PH4080L left header assembly
• Pacemaker PH4080R right header assembly
• Tapered outlet reducing cones with gaskets
• Header bolts [16]

Recommended With

• Header gasket set DSF027
• Matching exhaust system, intermediate pipes, and joiners may be available separately
• Ceramic coating option PHC40

Why Good Headers and Exhaust Systems Matter

• At 5000rpm, a 351 Cleveland moves approximately 12,200L/min intake airflow and expels around 36,600L/min exhaust gas [@600°C]
• At 6500rpm (600hp), airflow increases to approximately 22,000L/min intake and 66,000L/min exhaust output
• Efficient headers reduce restriction, improve scavenging, and support horsepower and torque gains

Warranty & Compliance

• Backed by Pacemaker 2-year manufacturer warranty

Frequently Asked Questions

Will these headers fit all XA to XE 2V Cleveland applications?
These headers are designed for Ford Falcon XA, XB, XC, XD and XE models fitted with 302 or 351 2V Cleveland engines, subject to the transmission and shifter restrictions listed above.

Will these headers fit C6 automatic vehicles?
No. Pacemaker PH4080 headers are not designed to fit C6 automatic applications.

Do these headers suit 4V Cleveland heads?
No. PH4080 is specifically designed for 2V Cleveland heads and is not suitable for 4V head applications.

Are gaskets and bolts included?
Header bolts and tapered outlet reducing cones with gaskets are included. The recommended header gasket for this application is DSF027.
