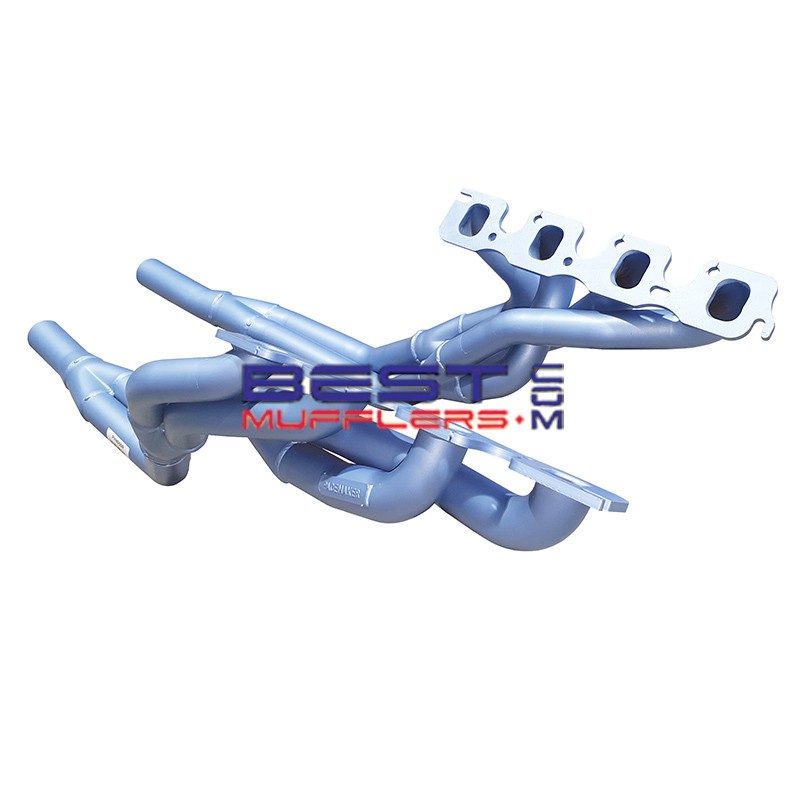

Ford Falcon XR XT XW XY 302 351 2V Cleveland V8 Pacemaker Headers PH4050

Pacemaker PH4050 headers (extractors) are designed for Ford Falcon XR, XT, XW and XY models fitted with 302 or 351 Cleveland V8 engines using 2V cylinder heads.
TRI-Y design with 44mm primary pipes, 51mm secondary pipes and 57mm outlets designed to improve exhaust flow, torque, throttle response and engine performance.

The TRI-Y configuration is designed to promote efficient exhaust gas flow and scavenging across a broad engine speed range, making Pacemaker PH4050 headers well suited to classic Falcon restorations and street performance Cleveland V8 applications.

Not sure which headers to use for your Cleveland engine? Read our Ford Cleveland header guide here.

Please check availability and current lead time before ordering.

Key Features

• Pacemaker Premium Quality
• Pacemaker TRI-Y design for street performance applications
• Pipe Over Cone Technology for improved collector flow and reduced turbulence
• Fits manual and automatic transmissions
• Fits C6 and FMX automatic transmissions
• Power steering and air conditioning compatible

Pipe Over Cone Technology

All Pacemaker headers are manufactured with the pipes flared and welded over the collector cone, so nothing protrudes inside the collector cone, therefore increasing exhaust gas flow and eliminating turbulence inside the exhaust header. The result is better gas flow and increased horsepower.

Construction & Finish

• Pacemaker heat proof finish tested to 1270°
• Designed and manufactured for street performance applications

Additional Options

• Ceramic Coating: see "PHC10"
• Exhaust Gaskets: see "DSF027"

Vehicle Application

• Make: Ford Falcon
• Series: XR / XT / XW / XY
• Years: 1966-1972
• Engine: 302 / 351 Cleveland V8
• Cylinder Heads: 2V Cleveland
• Transmission: Manual / Automatic
• Power Steering: Yes
• Air Conditioning: Yes

Header Specifications

• Primary Pipes: 44mm (1¾")
• Secondary Pipes: 51mm (2")
• Outlet: 57mm (2¼")

Fitment Notes

• Will fit C6 and FMX automatic transmissions.
• For 4V Cleveland cylinder heads, see Pacemaker PH4055.
• Confirm engine mounts, steering and transmission configuration where the vehicle has been modified.
• Check clearance around steering, starter motor, engine mounts and transmission before fully tightening the headers.

What's Included

• Pacemaker PH4050L left-hand header assembly
• Pacemaker PH4050R right-hand header assembly
• Header bolts [16]

Recommended With

• DSF027: Exhaust manifold/header gaskets
• Suitable exhaust system

Why Good Headers & Exhaust Systems Matter

• At 3000rpm, a 351 Cleveland draws in approximately 7,300L/min intake airflow and expels around 22,000L/min exhaust gas [@600°C]
• At 6500rpm, a 351 Cleveland draws in approximately 15,900L/min intake airflow and expels around 47,600L/min exhaust gas [@600°C]

Installation Tips

• Remove all traces of the old gaskets and inspect the cylinder-head sealing surfaces.
• Trial-fit both header assemblies and check all clearances before fully tightening the mounting hardware.
• Check clearance around the steering, starter motor, engine mounts, transmission, spark plugs and plug leads.
• Protect painted or ceramic-coated surfaces during trial fitting and installation.
• Check all exhaust connections for leaks after installation.
• Retighten the header bolts after the initial heat cycles.

Warranty & Compliance

Pacemaker PH4050 headers are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions.

FAQ

Will PH4050 fit both 302 and 351 Cleveland engines?
Yes. Pacemaker specifies PH4050 for both 302 and 351 Cleveland V8 engines.

Will PH4050 fit 4V Cleveland heads?
No. PH4050 headers are designed for 2V Cleveland cylinder heads. For 4V Cleveland cylinder heads, see Pacemaker PH4055.

What size are PH4050 headers?
PH4050 uses 44mm (1¾") primary pipes, 51mm (2") secondary pipes and 57mm (2¼") outlets.

What design are PH4050 headers?
PH4050 uses Pacemaker's TRI-Y design with Pipe Over Cone Technology.

What is Pacemaker Pipe Over Cone Technology?
The header pipes are flared and welded over the collector cone so nothing protrudes inside the collector. This reduces turbulence and improves exhaust gas flow.

Will PH4050 fit C6 automatic transmission?
Yes. PH4050 will fit a C6 automatic transmission.

Will PH4050 fit an FMX automatic transmission?
Yes. PH4050 will fit an FMX automatic transmission.

Are header bolts included?
Yes. Header bolts are included with these Pacemaker headers.

Which header gaskets are required?
See DSF027 for these headers.

Can PH4050 headers be ceramic coated?
Yes. Ceramic coating is available as an optional upgrade. Please contact us for current coating options, pricing and lead time.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
