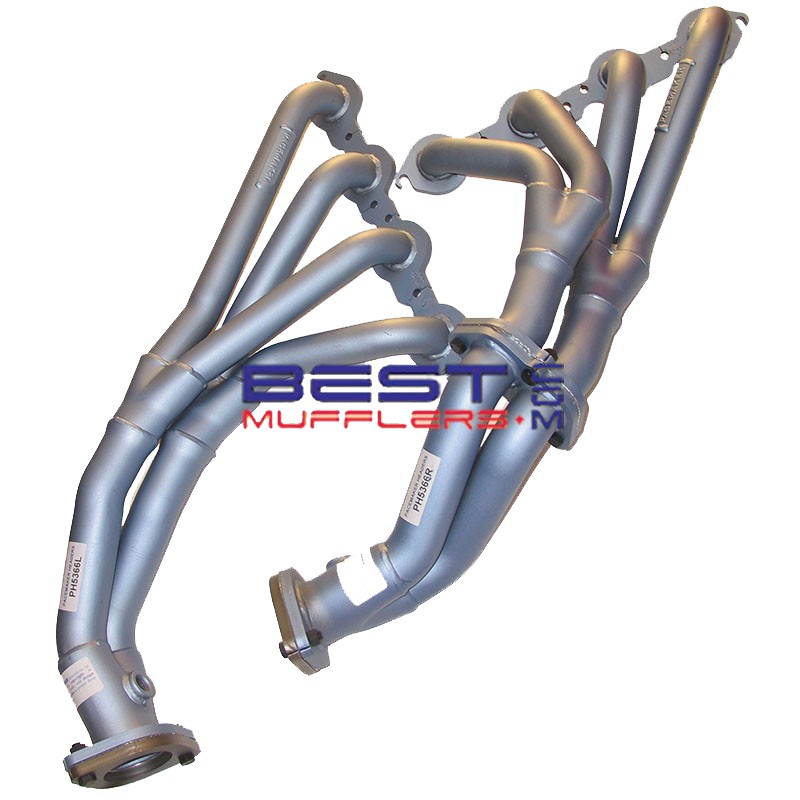

Holden Adventra Cross 8 VY VZ AWD 5.7L LS1 Pacemaker Headers PH5366

Pacemaker PH5366 headers (extractors) are specifically designed for Holden Adventra and Cross 8 VY-VZ AWD models fitted with the 5.7L Gen III LS1 V8 and automatic transmission.

The AWD drivetrain used in these models creates different exhaust clearance requirements compared with conventional rear-wheel-drive Commodore models. PH5366 is Pacemaker's dedicated Holden AWD header, using a Tri-Y design with 41mm (1⅝") primary pipes, 48mm (1⅞") secondary pipes and 63mm (2½") outlets.

Pacemaker currently lists PH5366 for 2003-2005 Holden Adventra and Cross 8 VY-VZ 5.7L Gen III AWD models.

IMPORTANT – VY Series II and VZ models require oxygen sensor wiring loom extensions. VY Series II requires PEX5367Y x1. VZ 5.7L requires PEX5367Z x1.

Will NOT fit Holden Crewman. Different Pacemaker headers are used for rear-wheel-drive Commodore and Crewman applications.

Please check availability and current lead time before ordering.

Key Features

• Designed specifically for Holden AWD applications
• Tri-Y header design
• 41mm (1⅝") primary pipes
• 48mm (1⅞") secondary pipes
• 63mm (2½") outlets
• Suits 5.7L Gen III LS1 V8
• Automatic transmission
• AWD drivetrain compatible
• Power steering compatible
• Air conditioning compatible
• Oxygen sensor provision

Construction

Pacemaker PH5366 uses a Tri-Y configuration with 41mm (1⅝") primary pipes feeding into 48mm (1⅞") secondary pipes and 63mm (2½") outlets.

The header layout is specifically designed around the additional drivetrain and chassis clearance requirements of the AWD Adventra and Cross 8.

Additional Options

DSF138: Replacement LS exhaust manifold/header gaskets are available separately.

PEX5367Y: One oxygen sensor wiring loom extension is required for VY Series II applications.

PEX5367Z: One oxygen sensor wiring loom extension is required for VZ 5.7L applications.

Vehicle Fitment

• Holden Adventra VY: 5.7L Gen III LS1 V8 AWD Automatic
• Holden Adventra VZ: 5.7L Gen III LS1 V8 AWD Automatic
• Holden Cross 8 VY: 5.7L Gen III LS1 V8 AWD Automatic
• Holden Cross 8 VZ: 5.7L Gen III LS1 V8 AWD Automatic
• Years: 2003-2005
• Engine: 5.7L Gen III LS1 V8
• Transmission: Automatic
• Drivetrain: AWD

Note: PH5366 will not fit Holden Crewman. Pacemaker directs conventional rear-wheel-drive applications to other PH5361, PH5362, PH5363 and PH5367 header configurations.

Header Specifications

• Part Number: PH5366 L/R Holden Kit
• Brand: Pacemaker
• Design: Tri-Y
• Primary Pipe: 41mm (1⅝")
• Secondary Pipe: 48mm (1⅞")
• Outlet: 63mm (2½")
• Power Steering: Yes
• Air Conditioning: Yes
• Oxygen Sensor: Yes
• EGR: N/A
• Replacement Gasket: DSF138
• Approximate Fitting Time: 3 hours

Fitment Notes

AWD Application: PH5366 is specifically designed around the drivetrain clearance requirements of the AWD Adventra and Cross 8.

Transmission: Pacemaker currently lists the Holden PH5366 application for automatic transmission.

VY Series II: Requires PEX5367Y x1 oxygen sensor wiring loom extension.

VZ 5.7L: Requires PEX5367Z x1 oxygen sensor wiring loom extension.

Crewman: PH5366 will not fit Holden Crewman.

HSV AWD Models: HSV Coupe 4, Avalanche and Avalanche XUV use the separate PH5366 L/R HSV Kit. Please contact Best Mufflers if you require the HSV application.

Protect painted surfaces during trial fitting and check steering, AWD drivetrain, transmission, engine mounts, oxygen sensor wiring and exhaust clearances before final tightening.

What's Included

• Pacemaker PH5366 left-side header assembly
• Pacemaker PH5366 right-side header assembly

Header bolts, gaskets, oxygen sensor extensions and other installation hardware should not be assumed to be included unless specifically confirmed with the current kit before ordering.

Recommended With

• DSF138 exhaust manifold/header gaskets
• PEX5367Y oxygen sensor extension – VY Series II
• PEX5367Z oxygen sensor extension – VZ 5.7L
• BOL02-10 header bolts where required
• Suitable 2½" exhaust connections

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 5.7L LS1 V8 theoretically draws approximately 11,400 litres of intake air per minute at 100% volumetric efficiency and expels around 34,200 litres of hot exhaust gas per minute at approximately 600°C.

Actual airflow varies with RPM, volumetric efficiency, engine load, camshaft, cylinder heads, induction system and engine tune.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

PH5366 is specifically designed for an AWD application, so check clearance around the front drivetrain, steering, transmission and exhaust system during installation.

Before fitting VY Series II or VZ models, ensure the correct oxygen sensor wiring extension is available.

Pacemaker lists an approximate fitting time of 3 hours. Actual fitting time may vary depending on vehicle condition and modifications.

Professional installation is recommended.

Warranty & Compliance

Pacemaker headers are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions.

Any catalytic converters, oxygen sensors and emissions-control equipment required for the vehicle must remain correctly installed and operational. Installation must comply with applicable Australian state or territory emissions, noise and roadworthiness requirements.

FAQ

What vehicles do PH5366 headers suit?
The PH5366 Holden kit is designed for VY-VZ Holden Adventra and Cross 8 AWD models fitted with the 5.7L Gen III LS1 V8 and automatic transmission.

What years does PH5366 cover?
Pacemaker currently lists the Holden Adventra and Cross 8 PH5366 application for 2003-2005.

Are PH5366 headers Tri-Y?
Yes. Pacemaker identifies PH5366 as a Tri-Y design.

What size are PH5366 headers?
They use 41mm (1⅝") primary pipes, 48mm (1⅞") secondary pipes and 63mm (2½") outlets.

Will PH5366 fit a Holden Crewman?
No. Pacemaker specifically states that PH5366 will not fit Crewman.

Will PH5366 fit an HSV Coupe 4 or Avalanche?
There is a separate PH5366 HSV Kit for HSV AWD applications including Coupe 4, Avalanche and Avalanche XUV. Please contact Best Mufflers for the correct version before ordering.

Does VY Series II require an oxygen sensor extension?
Yes. Pacemaker specifies PEX5367Y x1 for VY Series II.

Does VZ 5.7L require an oxygen sensor extension?
Yes. Pacemaker specifies PEX5367Z x1 for VZ 5.7L.

Will PH5366 fit with power steering?
Yes. Pacemaker lists PH5366 as power-steering compatible.

Will PH5366 fit with air conditioning?
Yes. Pacemaker lists PH5366 as air-conditioning compatible.

What gasket suits PH5366?
Pacemaker specifies DSF138.
