Datsun 1600, 180B, 200B, SSS ,Bluebird Pacemaker Headers PH9010
$549.95
Tax included
Pacemaker Headers PH9010 suit Datsun 1600, 180B, 200B, SSS and Bluebird 1.6L, 1.8L and 2.0L models. Australian-made with 42mm primaries, 45mm secondaries and a 51mm outlet, they improve torque, throttle response and exhaust flow for classic Datsun performance builds.

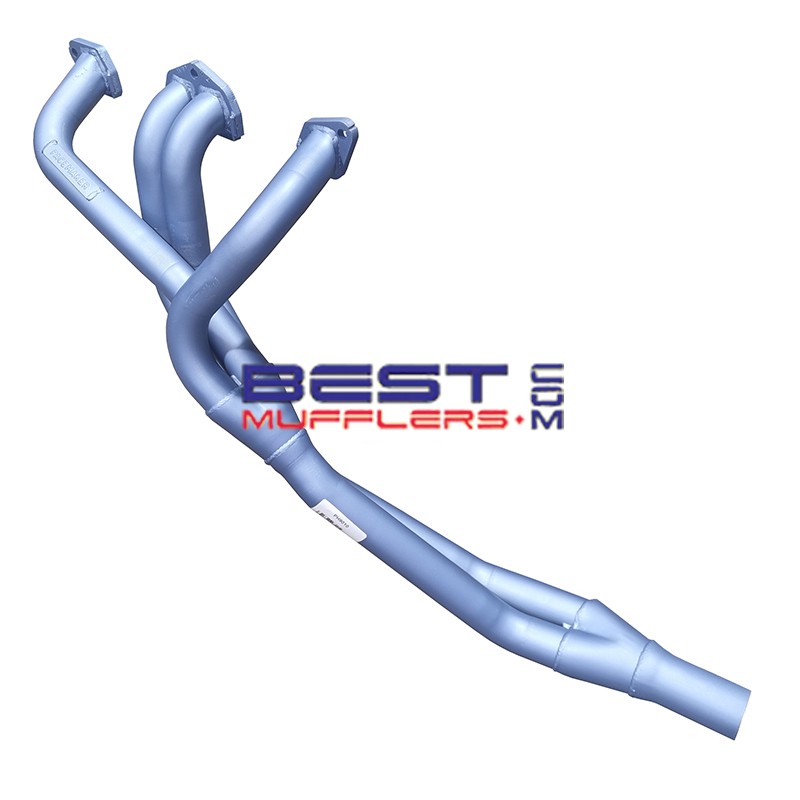

Pacemaker Headers PH9010 – Datsun 1600, 180B, 200B, SSS & Bluebird 1.6L, 1.8L & 2.0L
Pacemaker Headers PH9010 (extractors) are premium Australian-made performance headers designed to suit Datsun 1600, 180B, 200B, SSS and Bluebird models fitted with 1.6L, 1.8L and 2.0L four-cylinder engines. Featuring Pacemaker's proven tuned-length design, these headers improve exhaust scavenging for increased torque, sharper throttle response and a stronger, sportier exhaust note. Ideal for restorations, performance street cars and weekend cruisers, PH9010 headers deliver the renowned fitment and quality Pacemaker is known for.
Key Features
- Australian-made Pacemaker Headers
- Tuned-length design for high-performance street applications
- Mandrel-bent 42mm primary pipes
- 45mm secondary pipes
- 51mm outlet
- Heavy-duty machined flanges for reliable sealing
- Smooth merge collectors for improved exhaust scavenging
- Improves torque, throttle response and exhaust flow
- Direct replacement for the restrictive factory exhaust manifold
Construction
- Mandrel-bent high-quality steel tubing
- Precision MIG welded construction
- Heavy-duty laser-cut mounting flanges
- Pacemaker Blue high-temperature coating rated to approximately 800°C
- Australian manufactured
Additional Options
- PHC80 Ceramic Coating – Improves heat management, corrosion resistance and appearance.
- DSF015 Header Gasket – Recommended for reliable sealing and easy installation.
Why Good Headers & Exhaust Systems Matter
The Datsun L-Series 2.0L engine moves a significant volume of air for its size, making efficient exhaust flow essential for both performance and engine efficiency.
- At 4,000 rpm, the engine draws approximately 3,400 litres of intake air per minute and expels approximately 10,100 litres of exhaust gas (at approximately 600°C).
- At 5,000 rpm, airflow increases to approximately 4,250 litres of intake air per minute and approximately 12,600 litres of exhaust gas per minute.
- Pacemaker's tuned-length primary and secondary pipes improve exhaust scavenging, reduce backpressure and increase usable torque throughout the rev range.
What's Included
- Pacemaker Headers PH9010
Recommended With
- DSF015 Header gasket
- Matching 2" or 2¼" exhaust system (depending on engine specification)
- Replacement manifold studs and fasteners if required
- High-temperature exhaust sealant
Fitment Notes
- Designed to suit Datsun 1600, 180B, 200B, SSS and Bluebird applications listed for PH9010.
- Suitable for 1.6L, 1.8L and 2.0L four-cylinder engines.
- Protect painted engine bay surfaces during trial fitting to prevent accidental scratches.
- Use a new DSF015 gasket during installation.
- Apply anti-seize compound to manifold studs and fasteners before installation.
- Retighten all fasteners after the first complete heat cycle.
- Professional installation is recommended.
Warranty & Compliance
Pacemaker Headers are manufactured in Australia using premium materials and proven fabrication methods.
- Covered by Pacemaker's 2-year manufacturer's warranty (standard terms and conditions apply).
- Warranty applies to the supplied header assembly only.
- Damage resulting from incorrect installation, racing incidents, impact or vehicle modifications is not covered.
- Verify emissions and registration compliance applicable to your state or territory.
Frequently Asked Questions
Which vehicles do PH9010 headers fit?
PH9010 headers suit selected Datsun 1600, 180B, 200B, SSS and Bluebird models fitted with 1.6L, 1.8L and 2.0L four-cylinder engines.
Are these Australian made?
Yes. Pacemaker Headers are proudly designed and manufactured in Australia.
Do I need a new gasket?
Yes. We recommend fitting a new DSF015 gasket whenever new headers are installed.
Can these headers improve performance?
Yes. The tuned-length design improves exhaust scavenging, helping increase torque, throttle response and overall engine efficiency while producing a stronger exhaust note.
Can I have these ceramic coated?
Yes. Optional PHC80 ceramic coating is available for improved heat control, corrosion resistance and long-term durability.
Do you ship Australia wide?
Yes. Best Mufflers ships Pacemaker Headers and exhaust components throughout Australia.
Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.
Please note that import duties, tariffs, taxes and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
