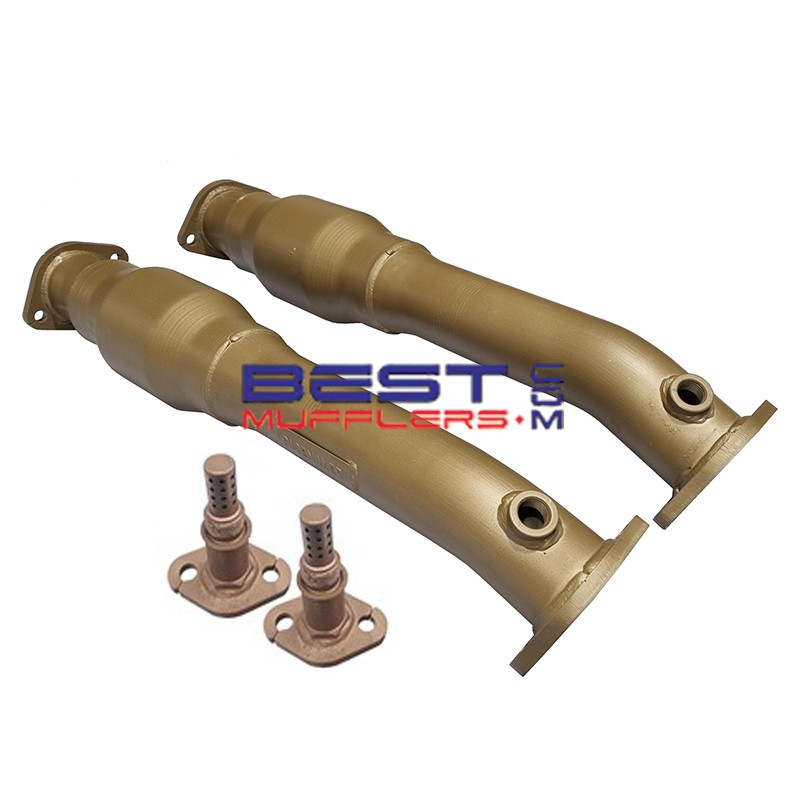

Toyota LandCruiser UZJ100 1998-2007 4.7L 2UZ-FE Pacemaker Catalytic Converters CAT12680-LR

Pacemaker CAT12680 high-flow catalytic converters are designed for the Toyota LandCruiser UZJ100 / UZJ100R fitted with the 4.7L 2UZ-FE petrol V8 from 1998-2007 when installing Pacemaker PH12680 headers.

Supplied as dedicated left- and right-hand catalytic converter assemblies, CAT12680 uses a 100 CPI metallic catalyst substrate with 63mm (2.50") inlet and outlet connections to provide increased exhaust flow and reduced restriction.

The converters feature a directional concave inlet designed to increase the effective catalyst surface area presented to the incoming exhaust gases and assist with distributing exhaust flow across the metallic substrate.

IMPORTANT – CAT12680 is designed specifically for use with Pacemaker PH12680 headers. These converters are not direct replacements for the original factory catalytic converter assemblies.

Key Features

• Designed specifically for Pacemaker PH12680 headers
• Suits Toyota LandCruiser UZJ100 / UZJ100R 4.7L 2UZ-FE V8
• 1998-2007 application
• Supplied as a matched left- and right-hand pair
• 100 CPI metallic catalyst substrate
• 63mm (2.50") inlet
• 63mm (2.50") outlet
• Directional concave inlet design
• Designed for high exhaust flow and reduced restriction
• 2 x PSA100 oxygen sensor adaptors included

Vehicle Fitment

• Vehicle: Toyota LandCruiser
• Series: 100 Series
• Chassis: UZJ100 / UZJ100R
• Years: 1998-2007
• Engine: 2UZ-FE
• Capacity: 4.7L / 4664cc
• Configuration: DOHC 32-valve petrol V8
• Transmission: Manual / Automatic
• Drive: 4WD
• Header Application: Pacemaker PH12680
• Steering: Right Hand Drive PH12680 application

Construction

• High-flow catalytic converter assemblies
• 100 CPI metallic catalyst substrate
• 63mm (2.50") inlet and outlet connections
• Directional concave inlet design
• Dedicated left- and right-hand assemblies
• Designed for use with Pacemaker PH12680 headers

PSA100 Check Engine Light Adaptors

The kit includes 2 x Pacemaker PSA100 oxygen sensor adaptors. Each PSA100 incorporates a small catalytic element designed to assist with catalyst-efficiency related check-engine light issues that can occur when fitting high-flow catalytic converters.

Note: PSA100 adaptors cannot guarantee that a check-engine light will not occur. Oxygen sensor condition, engine condition, ECU calibration and other factors can affect catalyst-efficiency monitoring.

Fitment Notes

• Suits Pacemaker PH12680 headers.
• Not designed as a direct replacement for the original factory catalytic converters.
• Designed for Toyota LandCruiser UZJ100 / UZJ100R 4.7L 2UZ-FE applications using PH12680 headers.
• PH12680 is a Right Hand Drive application and does not suit Left Hand Drive vehicles.
• 4 x FDG024 exhaust flange gaskets are required for installation.
• Confirm the vehicle, engine and Pacemaker header part number before ordering.
• Professional installation by an experienced exhaust workshop is recommended.

What's Included

• 1 x Pacemaker CAT12680L left-hand catalytic converter
• 1 x Pacemaker CAT12680R right-hand catalytic converter
• 2 x Pacemaker PSA100 oxygen sensor adaptors

Recommended With

• PH12680: Pacemaker headers – sold separately
• FDG024: Exhaust flange gaskets – 4 required
• Matching Pacemaker / King Brown performance exhaust system – available separately

Why High-Flow Catalytic Converters Matter

At 4,000 rpm, the 4.7L 2UZ-FE V8 theoretically draws approximately 9,400 litres of intake air per minute at 100% volumetric efficiency and expels around 28,200 litres of hot exhaust gas per minute at approximately 600°C.

Actual airflow varies with RPM, engine load, volumetric efficiency, intake restriction, camshaft timing and engine condition. These figures are theoretical values intended to illustrate the substantial volume of gas that must pass through the exhaust system at higher engine speeds.

Because the catalytic converters form part of this exhaust path, excessive restriction through the catalyst can limit overall exhaust flow. A high-flow metallic catalytic converter is designed to manage this gas volume efficiently while retaining catalytic converters within the exhaust system.

Important Catalytic Converter Information

Catalytic converter failure can be caused by engine misfires, excessive fuel delivery, oil consumption, coolant entering the combustion chamber, ignition problems or other engine faults. These conditions can cause excessive catalyst temperatures or contamination and lead to premature catalytic converter failure.

Any underlying engine, ignition or fuel-system problem should be diagnosed and repaired before new catalytic converters are installed.

Warranty & Compliance

Pacemaker catalytic converters are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions.

Catalytic converters and oxygen sensors form part of the vehicle's emissions-control system. Installation must comply with applicable state or territory requirements covering emissions, roadworthiness, vehicle modifications and exhaust noise.

FAQ

What vehicle does CAT12680 suit?
CAT12680 is designed for applicable Toyota LandCruiser UZJ100 / UZJ100R 4.7L 2UZ-FE V8 models from 1998-2007 when fitted with Pacemaker PH12680 headers.

Will CAT12680 fit the factory exhaust manifolds?
No. CAT12680 catalytic converters are designed specifically for use with Pacemaker PH12680 headers and are not direct replacement factory catalytic converters.

What size are the inlet and outlet connections?
CAT12680 uses 63mm (2.50") inlet and 63mm (2.50") outlet connections.

What substrate does CAT12680 use?
The converters use a 100 CPI metallic catalyst substrate designed for high exhaust flow and reduced restriction.

What are the PSA100 adaptors?
The kit includes 2 x Pacemaker PSA100 oxygen sensor adaptors. Each incorporates a small catalytic element designed to assist with catalyst-efficiency related check-engine light issues when high-flow catalytic converters are fitted.

Will PSA100 guarantee that the check-engine light stays off?
No. They are designed to assist with catalyst-efficiency related fault codes, but oxygen sensor condition, engine condition, ECU calibration and other factors can affect catalyst monitoring.

What gaskets are required?
4 x FDG024 exhaust flange gaskets are required for the CAT12680 installation.

Are both catalytic converters included?
Yes. The kit includes CAT12680L and CAT12680R together with 2 x PSA100 oxygen sensor adaptors.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
