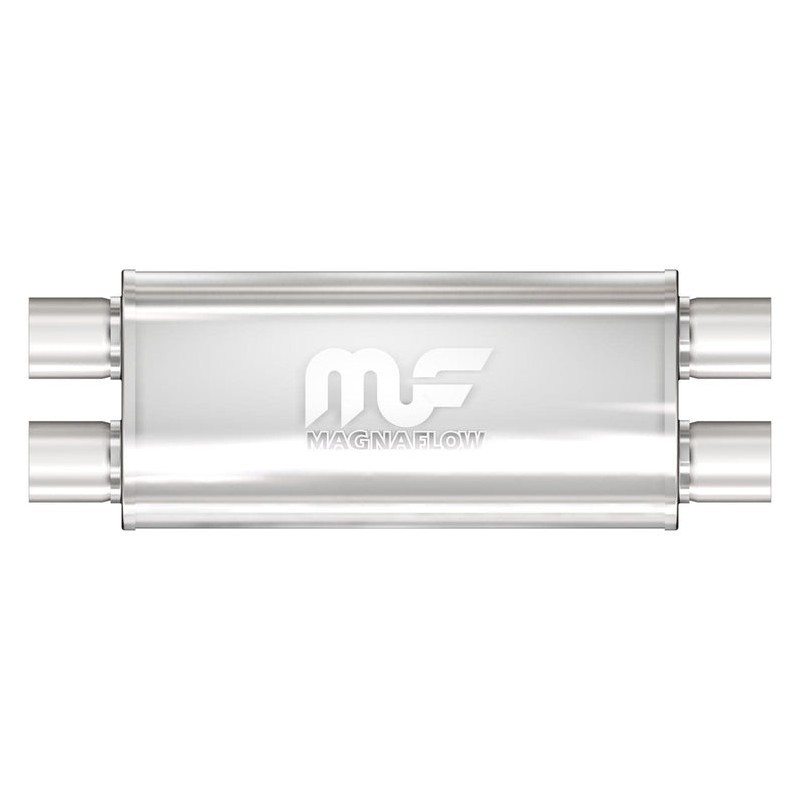

MagnaFlow Muffler 12469 – Twin 3" In/Out 5" x 8" Oval Stainless Steel

MagnaFlow 12469 straight-through performance muffler is designed for high-flow dual exhaust systems requiring twin 76mm (3") inlets and twin 76mm (3") outlets. Its internal crossover configuration allows interaction between the two exhaust paths while combining dual-system sound control into one compact muffler assembly.

The large 127mm x 202mm x 450mm (5" x 8" x 18") oval body provides substantial internal volume for acoustic packing while the perforated straight-through cores maintain excellent exhaust flow. This combination provides effective sound control while retaining the smooth, deep performance exhaust tone MagnaFlow is known for.

Key Features

• Genuine MagnaFlow performance muffler
• Twin 76mm (3") inlets
• Twin 76mm (3") outlets
• Internal crossover design for dual exhaust applications
• Allows both sides of a dual exhaust system to pass through one muffler assembly
• High-flow straight-through perforated stainless steel cores
• 127mm x 202mm (5" x 8") oval body
• 450mm (18") body length
• Smooth, deep performance exhaust tone
• Universal fit for custom exhaust fabrication

Construction

• 100% stainless steel construction
• Straight-through perforated stainless steel cores
• Stainless steel mesh wrap
• Acoustic fibre packing for refined sound control
• Precision welded construction
• Premium satin finish
• Designed for durability and corrosion resistance

Muffler Specifications

• Part Number: 12469
• Brand: MagnaFlow
• Application: Universal
• Inlet Size: Twin 76mm (3")
• Outlet Size: Twin 76mm (3")
• Configuration: Twin Inlet / Twin Outlet
• Crossover: Internal crossover design
• Body Profile: 127mm x 202mm (5" x 8") Oval
• Body Length: 450mm (18")
• Overall Length: Approx. 610mm (24")
• Material: Stainless Steel
• Finish: Satin
• Design: Straight-Through / Free Flow

Exhaust Sound & Performance

Fitment Notes

What's Included

• 1 x MagnaFlow 12469 Twin Inlet / Twin Outlet Stainless Steel Performance Muffler

Recommended With

• 76mm (3") Exhaust Pipe: See product code "ST076"
• 76mm Exhaust Clamps: See product code "Clamp 76mm"
• 3" Mandrel Bends: See product code "SB300"
• Exhaust hangers and mounting hardware

Warranty & Compliance

FAQ

What size exhaust pipe does MagnaFlow 12469 suit?
The 12469 has twin 76mm (3") inlets and twin 76mm (3") outlets and is designed for high-flow dual 3" exhaust systems.

Does MagnaFlow 12469 have a crossover?
Yes. The muffler incorporates an internal crossover arrangement between the two exhaust paths, making it particularly useful in custom dual exhaust systems.

Can this replace separate left and right mufflers?
Potentially, yes. The twin-inlet/twin-outlet configuration allows both sides of a dual exhaust system to pass through one muffler assembly, provided sufficient space and suitable exhaust routing are available.

What size is the muffler body?
The muffler body measures approximately 127mm x 202mm x 450mm (5" x 8" x 18"), with an overall length of approximately 610mm (24").

Is MagnaFlow 12469 a straight-through muffler?
Yes. It uses high-flow perforated cores surrounded by acoustic packing to provide exhaust flow and sound control.

Is this a direct-fit muffler?
No. MagnaFlow 12469 is a universal performance muffler. Welding and custom exhaust fabrication will normally be required.
