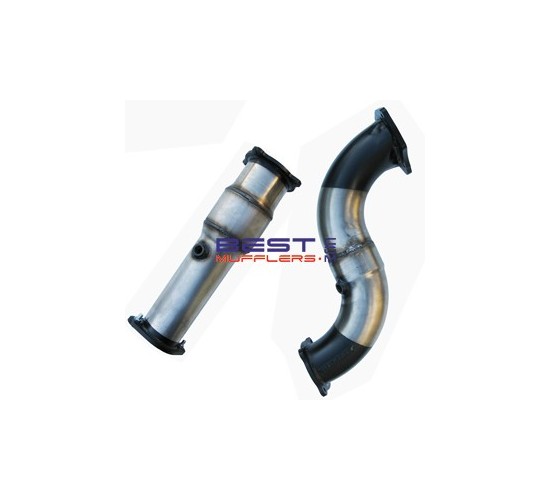

Ford Falcon FG XR6 Turbo 2008-2014 4.0L Turbo Dump Pipe & High Flow Cat TFG4-SS / TFG4C-SS

The TFG4-SS turbo dump pipe is an Australian-made performance exhaust upgrade designed for the Ford Falcon FG and FG MkII XR6 Turbo 2008-2014 fitted with the 4.0L turbocharged 6-cylinder engine.

Manufactured from 409 stainless steel, the dump pipe uses large 4.00" (102mm) mandrel-bent pipework to provide a high-flow exhaust path from the turbocharger. A matching TFG4C-SS high flow catalytic converter is also available, featuring a 4.00" inlet transitioning to a 3.50" outlet.

Please check availability and current lead time before ordering.

Key Features

• Designed for Ford Falcon FG and FG MkII XR6 Turbo
• 4.0L turbocharged 6-cylinder application
• TFG4-SS: 4.00" (102mm) turbo dump pipe
• TFG4C-SS: matching high flow catalytic converter
• 4.00" catalytic converter inlet
• 3.50" catalytic converter outlet
• 409 stainless steel construction
• Mandrel-bent pipework
• Direct-fit design
• Australian Made

Construction

The TFG4-SS dump pipe and matching TFG4C-SS high flow catalytic converter are manufactured from 409 stainless steel for durability and resistance to the demanding temperatures and operating conditions encountered in a turbocharged exhaust system.

The 4.00" (102mm) dump pipe uses mandrel-bent pipework to maintain the internal pipe diameter through the bends.

Additional Options

The components can be selected according to the exhaust configuration required:

• TFG4-SS – 4.00" (102mm) stainless steel turbo dump pipe
• TFG4C-SS – high flow catalytic converter with 4.00" inlet and 3.50" outlet

Vehicle Fitment

• Make: Ford
• Model: Falcon XR6 Turbo
• Series: FG / FG MkII
• Year Range: 2008-2014
• Engine: 4.0L turbocharged 6-cylinder

Fitment Note: FG X XR6 Turbo models are not included in this application unless fitment is confirmed before ordering.

Specifications

• Dump Pipe Part Number: TFG4-SS
• High Flow Cat Part Number: TFG4C-SS
• Material: 409 stainless steel
• Dump Pipe Diameter: 4.00" (102mm)
• Catalytic Converter Inlet: 4.00" (102mm)
• Catalytic Converter Outlet: 3.50" (89mm)
• Construction: Mandrel bent
• Fitment: Direct fit
• Manufacture: Australian Made

Fitment Notes

Before removal and installation, lubricate threaded fasteners and fittings with WD-40 or a similar penetrating lubricant to assist removal and reduce the risk of damaged or seized threads.

Vehicles that have been modified from their original turbocharger or exhaust configuration should be checked carefully before ordering.

What's Included

Supply depends on the option selected. The TFG4-SS dump pipe and TFG4C-SS high flow catalytic converter are identified as separate components and part numbers.

Recommended With

For a complete performance exhaust upgrade, the TFG4-SS dump pipe can be combined with the matching TFG4C-SS high flow catalytic converter.

Why Good Dump Pipes & Exhaust Systems Matter

The 4.0L engine theoretically draws approximately 8,000 litres of intake air per minute at 4,000 rpm at 100% volumetric efficiency. Once combustion has taken place, the resulting hot exhaust gases occupy substantially more volume as they travel through the turbocharger and exhaust system.

Using an illustrative exhaust temperature of approximately 600°C, this can represent around 24,000 litres of exhaust gas per minute. A well-designed dump pipe and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust flow, throttle response and engine performance.

Installation Tips

Professional installation is recommended. Check all mounting points, flanges, fasteners and exhaust clearances during installation. After the vehicle has completed several heat cycles, inspect the system and recheck accessible fasteners where appropriate.

Warranty & Compliance

Installation and use must comply with applicable Australian state or territory regulations, including requirements relating to catalytic converters, emissions equipment, exhaust noise and vehicle modifications.

FAQ

Is this product currently available?
Availability and lead times can vary. Please check availability and current lead time before ordering.

Does this suit the FG X XR6 Turbo?
This listing covers the FG and FG MkII XR6 Turbo from 2008-2014. Please contact us before ordering for an FG X so fitment can be confirmed.

Is the high flow catalytic converter included with the dump pipe?
The dump pipe and high flow catalytic converter have separate part numbers. TFG4-SS is the dump pipe and TFG4C-SS is the matching high flow catalytic converter. Please select the required component or contact us before ordering if you are unsure.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
