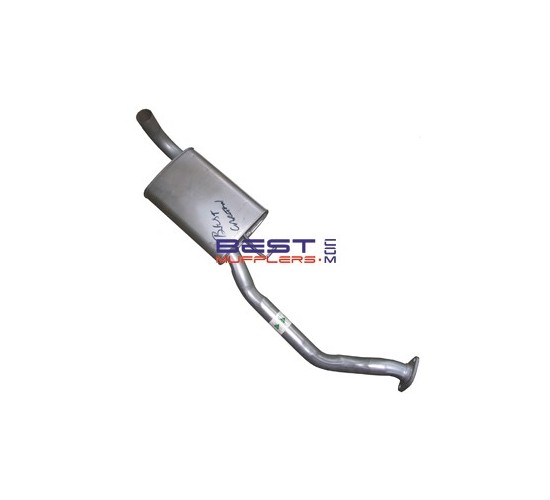

Holden Commodore VN Sedan 08/1988-10/1990 3.8L V6 Centre Muffler BM4174

BM4174 centre muffler assembly is an Australian-made direct-fit replacement exhaust component designed for Holden Commodore VN Sedans from 08/1988 to 10/1990 fitted with the early 3.8L V6 petrol engine.

BM4174 replaces the original centre/front muffler section and is designed for factory-style fitment, making it suitable for replacement of a rusted, damaged or leaking original muffler assembly.

IMPORTANT: This listing is for the early VN 3.8L V6 application up to 10/1990. Later VN models received a revised 3.8L V6 and should be checked separately before ordering.

Please check availability and current lead time before ordering.

Key Features

• Direct-fit replacement centre muffler assembly
• Suits Holden Commodore VN Sedan 3.8L V6 08/1988-10/1990
• Early VN 3.8L V6 application
• Factory-style replacement exhaust component
• Designed to use the original-style exhaust mounting locations
• Australian Made
• Quality replacement exhaust component
• Australia-wide delivery available

Construction

• Factory-style centre/front muffler assembly
• Complete muffler and connecting pipe section
• Designed for direct replacement of the applicable original exhaust section
• Australian Made

Additional Options

• GMG093: Front exhaust gasket available separately
• C11: Exhaust clamp available separately
• GMR008: Exhaust mounting rubber available separately
• Rear muffler and other replacement exhaust components for Holden Commodore VN models are available separately

Vehicle Fitment

• Make: Holden
• Model: Commodore
• Series: VN
• Body: Sedan
• Production Range: 08/1988-10/1990
• Engine: 3.8L V6 petrol
• Engine Family: LN3 / early VN V6
• Capacity: 3791cc
• Power: 125kW
• Fuel System: Multi-point fuel injection
• Drive: Rear Wheel Drive

The VN Commodore was released in August 1988 with the 3.8L LN3 V6 producing 125kW and 292Nm. Holden introduced a substantially revised L27/EV6 version of the 3.8L V6 in November 1990, producing 127kW and incorporating changes including revised induction and cast-iron exhaust manifolds.

Fitment Notes

• VN Sedan 3.8L V6 – early application
• 08/1988-10/1990 application as listed for BM4174 / M7623
• Later VN 3.8L V6 models from the late-1990 engine/exhaust change should be checked separately
• Direct-fit replacement for the applicable original centre/front muffler assembly
• Inspect the exhaust gasket, clamp and mounting rubber during installation and replace where required
• Lubricate mounting rubbers and exhaust fasteners with penetrating lubricant before removal to make removal and installation easier
• Vehicles of this age may have modified or previously replaced exhaust systems – compare the existing exhaust configuration before ordering if unsure

What’s Included

• 1 x BM4174 centre muffler assembly

Recommended With

• GMG093 – front exhaust gasket
• C11 – exhaust clamp
• GMR008 – exhaust mounting rubber
• BM4275 – rear muffler assembly for compatible VN Sedan 3.8L V6 applications

Installation Tips

Before removing the original exhaust, apply penetrating lubricant such as WD-40 to exhaust fasteners and clamps. Lubricating the exhaust mounting rubbers will also make removal and installation easier.

Inspect the GMG093 exhaust gasket, C11 clamp and GMR008 mounting rubber during installation and replace any components that are worn, cracked, stretched or corroded.

After installation, check the centre muffler and pipework for adequate clearance from the vehicle body, suspension and surrounding components. Start the engine and inspect all exhaust connections for leaks.

Warranty & Compliance

BM4174 is intended as a direct-fit factory-style replacement exhaust component for the listed Holden Commodore VN Sedan 3.8L V6 08/1988-10/1990 application.

As these vehicles are now more than 30 years old, previous exhaust modifications should be considered when confirming fitment. If the existing exhaust differs from the original configuration, please contact us before ordering.

FAQ

What vehicle does BM4174 fit?
BM4174 suits applicable Holden Commodore VN Sedans from 08/1988 to 10/1990 fitted with the early 3.8L V6 petrol engine.

Why does this muffler only list VN models up to 10/1990?
The VN 3.8L V6 received a significant engine update around November 1990. This BM4174 listing is specifically for the earlier VN exhaust application, so later vehicles should have their exhaust configuration confirmed before ordering.

Does BM4174 fit a VN 5.0L V8?
This listing is specifically for the VN Sedan 3.8L V6 application. Please confirm the correct exhaust component separately for 5.0L V8 models.

Does it fit a VN Wagon?
This listing is specifically for the VN Sedan. Wagon exhaust components should be checked separately.

Is BM4174 a direct-fit replacement?
Yes. BM4174 is designed as a direct-fit replacement for the applicable original centre/front muffler assembly.

Is BM4174 Australian made?
Yes. BM4174 is Australian made.

Are the gasket, clamp and mounting rubber included?
The GMG093 gasket, C11 clamp and GMR008 mounting rubber are listed separately. Inspect the existing components during installation and replace where required.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
