Ford Falcon XR-XF 302 Windsor Spread Port Pacemaker Competition Headers PH4038

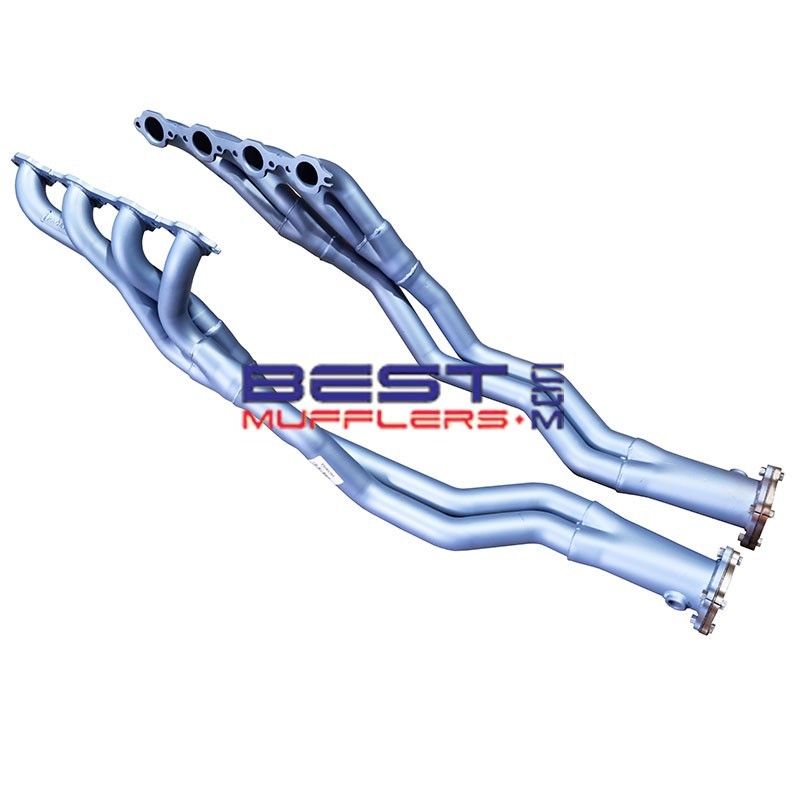

Pacemaker PH4038 Competition headers (extractors) are designed for Ford Falcon XR, XT, XW and XY models fitted with a 302 Windsor V8 using spread-port / wider dual-bolt-pattern cylinder heads. PH4038 also fit XA, XB, XC, XD, XE and XF Falcon 302 Windsor engine conversions.

PH4038 features Pacemaker's Competition TRI-Y design with 44mm (1¾") primary pipes, 51mm (2") secondary pipes and 76mm (3") outlets. The larger pipework is designed for high-performance 302 Windsor combinations where increased exhaust gas flow is required.

IMPORTANT – PH4038 requires spread-port / wider dual-bolt-pattern cylinder heads. It will not fit standard Windsor cylinder heads or 351 Windsor engines.

Not sure which headers to use for your Windsor engine? Read our Ford Windsor header guide here.

Please check availability and current lead time before ordering.

Key Features

• Competition header designed for 302 Windsor V8 performance applications
• Designed for spread-port / wider dual-bolt-pattern cylinder heads
• Pacemaker Competition TRI-Y design
• 44mm (1¾") primary pipes
• 51mm (2") secondary pipes
• 76mm (3") outlets
• Manual and automatic transmission compatible, subject to transmission restrictions
• Power steering compatible
• Air conditioning compatible
• Suitable for selected XA-XF Falcon 302 Windsor engine conversions
• Designed for high-performance applications requiring increased exhaust flow

Construction

Pacemaker PH4038 uses a performance-oriented tubular TRI-Y configuration developed specifically for 302 Windsor engines fitted with the required spread-port / wider dual-bolt-pattern cylinder heads.

The standard headers are supplied in Pacemaker's protective finish. Ceramic coating is also available separately for customers wanting additional heat management and surface protection.

Additional Options

• Ceramic Coating: Available separately – please contact us for current coating options, pricing and lead time
• Header Gaskets: Pacemaker currently lists the gasket specification as N/A – gasket selection should be matched to the specific cylinder heads being used
• Matching exhaust system components – available separately

Vehicle Fitment

• Make: Ford
• Model: Falcon
• Series: XR / XT / XW / XY / XA / XB / XC / XD / XE / XF
• Primary Application: XR-XY 302 Windsor
• Conversion Application: XA-XF 302 Windsor engine swap
• Engine: 302 Windsor V8
• Cylinder Heads: Spread Port / Wider Dual Bolt Pattern
• Transmission: Manual / Automatic – C6 excluded
• Power Steering: Yes
• Air Conditioning: Yes

Header Specifications

• Part Number: PH4038L/R
• Design: Competition TRI-Y
• Primary Pipe: 44mm (1¾")
• Secondary Pipe: 51mm (2")
• Outlet: 76mm (3")
• Power Steering: Yes
• Air Conditioning: Yes
• Gasket: N/A
• Oxygen Sensor: N/A
• EGR: N/A
• Approximate Fitting Time: 3½ hours

Fitment Notes

• Designed specifically for 302 Windsor V8 engines using spread-port / wider dual-bolt-pattern cylinder heads.
• Will not fit standard Windsor cylinder heads.
• Will not fit 351 Windsor engines.
• Suitable for XR, XT, XW and XY Falcon 302 Windsor applications using the required cylinder heads.
• Will fit XA, XB, XC, XD, XE and XF Falcon 302 Windsor engine conversions using the required cylinder heads.
• Also listed by Pacemaker for ZF, ZG, ZH, ZJ, ZK and ZL Fairlane engine-swap applications.
• Will not fit C6 automatic transmission.
• Column-change automatic applications require linkage modification.
• Power steering compatible.
• Air conditioning compatible.
• Confirm the exact cylinder-head exhaust bolt pattern before ordering.
• 302-based stroker engines may use similar block architecture, but fitment should be confirmed from the cylinder heads, engine configuration and vehicle before ordering.
• Confirm engine mounts, steering, starter and transmission configuration where the vehicle has been modified.
• Protect painted or ceramic-coated surfaces during trial fitting and installation.
• Check all clearances before fully tightening the headers.
• Professional installation is recommended.

What's Included

• Pacemaker PH4038L left-hand header assembly
• Pacemaker PH4038R right-hand header assembly

Gaskets, header bolts, outlet flanges and other installation hardware should not be assumed included unless specifically confirmed with the current PH4038 package supplied.

Recommended With

• Suitable exhaust manifold/header gaskets matched to the cylinder heads being used
• Suitable downstream exhaust connections to match the header outlets

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, a 302ci / 5.0L Windsor V8 theoretically draws approximately 10,000 litres of intake air per minute at 100% volumetric efficiency and expels around 30,000 litres of hot exhaust gas per minute at approximately 600°C.

Actual airflow varies considerably with RPM, engine load, volumetric efficiency, camshaft specification, cylinder-head flow and engine configuration. A modified or stroked Windsor using high-flow aftermarket cylinder heads may move substantially more air than a standard 302.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Verify the cylinder-head exhaust bolt pattern before ordering or beginning installation.
• Do not assume PH4038 will fit simply because the engine is a 302 Windsor – the required spread-port / wider dual-bolt-pattern cylinder heads are essential.
• Confirm the transmission type before installation – C6 automatic transmissions are not compatible.
• Apply penetrating lubricant to existing exhaust fasteners before removal.
• Use exhaust manifold/header gaskets suitable for the particular aftermarket cylinder heads fitted.
• Trial-fit both header assemblies and check all clearances before fully tightening the mounting hardware.
• Check clearance around the steering, starter motor, engine mounts, transmission, spark plugs and plug leads.
• Protect painted or ceramic-coated surfaces during trial fitting and installation.
• Check all exhaust connections for leaks after installation.
• Inspect header mounting hardware after the initial heat cycles.

Warranty & Compliance

Pacemaker PH4038 headers are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions.

As PH4038 is intended for modified and high-performance applications, the completed engine and exhaust installation must comply with applicable state or territory requirements covering engine modifications, exhaust noise and roadworthiness.

FAQ

Which Ford Falcons do PH4038 headers suit?
PH4038 is primarily designed for Ford Falcon XR, XT, XW and XY models fitted with a 302 Windsor V8 and the required spread-port / wider dual-bolt-pattern cylinder heads. Pacemaker also lists XA-XF Falcon 302 Windsor engine-swap applications.

Will PH4038 fit standard 302 Windsor cylinder heads?
No. Pacemaker specifically states that PH4038 will not fit standard Windsor cylinder heads. The cylinder heads must use the wider spread-port / dual-bolt-hole exhaust flange arrangement required by PH4038.

Will PH4038 fit a 351 Windsor?
No. Pacemaker specifically states that PH4038 will not fit a 351 Windsor. For a 351 Windsor using the corresponding spread-port cylinder-head configuration, see Pacemaker PH4036.

Will PH4038 fit a 347 Windsor stroker?
Pacemaker currently specifies PH4038 for the 302 Windsor and does not specifically list 347 stroker engines. Because many 347 combinations are based on the 302 Windsor architecture, possible fitment depends on the cylinder heads, engine configuration and vehicle. Please contact us with your cylinder-head details before ordering.

What size are the PH4038 header pipes?
PH4038 uses 44mm (1¾") primary pipes, 51mm (2") secondary pipes and 76mm (3") outlets.

What design are PH4038 headers?
Pacemaker specifies PH4038 as a TRI-Y Competition header.

Will PH4038 fit a C6 automatic transmission?
No. Pacemaker specifically states that PH4038 will not fit a C6 transmission.

Will PH4038 fit a column-change automatic?
Pacemaker states that a column automatic requires linkage modification.

Do PH4038 headers suit power steering?
Yes. Pacemaker specifies PH4038 as power-steering compatible.

Do PH4038 headers suit air conditioning?
Yes. Pacemaker specifies PH4038 as air-conditioning compatible.

Are PH4038 headers suitable for XA-XF Falcon engine conversions?
Yes. Pacemaker lists XA, XB, XC, XD, XE and XF Falcon engine-swap applications, provided the 302 Windsor is fitted with the required spread-port / wider dual-bolt-pattern cylinder heads and the other fitment requirements are met.

Can PH4038 headers be ceramic coated?
Yes. Ceramic coating is available as an optional upgrade. Please contact us for current coating options, pricing and lead time.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
This header assembly is a large item and freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
