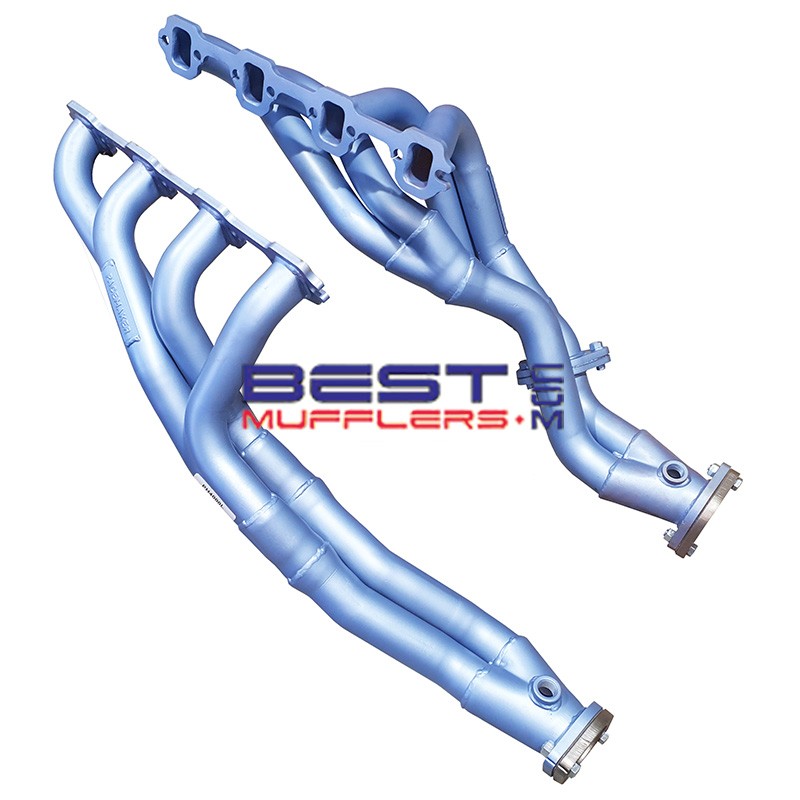

Ford Falcon EB ED EF EL XH 5.0L EFI Windsor V8 Pacemaker Headers PH4000

Pacemaker PH4000 headers (extractors) are designed for Ford Falcon EB, ED, EF, EL and XH models fitted with the 5.0L EFI 302 Windsor V8. They also suit selected Ford Fairlane NC, NF and NL 5.0L EFI V8 applications.

PH4000 uses Pacemaker's Tri-Y design with 41mm (1⅝") primary pipes, 48mm (1⅞") secondary pipes and 57mm (2¼") flanged outlets. This configuration is designed to improve exhaust flow and scavenging while providing strong usable torque and throttle response for street-driven Windsor V8 applications.

IMPORTANT – Will not fit GT40 cylinder heads as fitted to the 302 Windsor AU II due to the different spark-plug angle.

Not sure which headers to use for your Windsor engine? Read our Ford Windsor header guide here.

Please check availability and current lead time before ordering.

Key Features

• Designed for Ford 5.0L EFI Windsor V8 applications
• Tri-Y header design
• 41mm (1⅝") primary pipes
• 48mm (1⅞") secondary pipes
• 57mm (2¼") flanged outlets
• Manual and automatic transmission compatible
• Power steering compatible
• Air conditioning compatible
• Oxygen sensor provision
• Designed to improve exhaust flow, scavenging, torque and throttle response

Vehicle Fitment

• Ford Falcon EB – 5.0L EFI Windsor V8
• Ford Falcon ED – 5.0L EFI Windsor V8
• Ford Falcon EF – 5.0L EFI Windsor V8
• Ford Falcon EL – 5.0L EFI Windsor V8
• Ford Falcon XH Ute – 5.0L EFI Windsor V8
• Ford Fairlane NC – 5.0L EFI Windsor V8
• Ford Fairlane NF – 5.0L EFI Windsor V8
• Ford Fairlane NL – 5.0L EFI Windsor V8

Header Specifications

• Part Number: PH4000L/R
• Design: Tri-Y
• Engine: 5.0L EFI Windsor V8
• Transmission: Manual / Automatic
• Primary Pipe: 41mm (1⅝")
• Secondary Pipe: 48mm (1⅞")
• Outlet: 57mm (2¼") flanged
• Power Steering: Yes
• Air Conditioning: Yes
• Oxygen Sensor: Yes
• EGR: N/A
• Gasket: DSF3A
• Approximate Fitting Time: 2½ hours

Construction

Pacemaker PH4000 headers use mandrel-bent pipework and a vehicle-specific Tri-Y configuration developed for the Ford 5.0L EFI Windsor V8 application.

The standard headers are supplied in Pacemaker's distinctive protective blue finish. Ceramic coating is also available separately for improved heat management and corrosion resistance.

Additional Options

• Ceramic Coating: Available separately – please contact us for the current coating option
• Header Gaskets: DSF3A – available separately
• High-Flow Catalytic Converters: CATPH4000 – available separately

Fitment Notes

• Will not fit GT40 cylinder heads as fitted to the 302 Windsor AU II due to the different spark-plug angle.
• Designed for manual and automatic transmission applications.
• Power steering and air conditioning compatible.
• Oxygen sensor provision is incorporated into the application.
• Confirm cylinder-head type before ordering where the engine or cylinder heads have previously been changed.
• Protect painted surfaces during trial fitting.
• Check starter motor, steering, engine mounts, wiring and surrounding components for adequate clearance during installation.
• Non-original engine mounts, steering components or other aftermarket modifications can affect header clearance.
• Professional installation is recommended.

What's Included

• 1 x Pacemaker PH4000L left-hand header assembly
• 1 x Pacemaker PH4000R right-hand header assembly

Gaskets, bolts, outlet flanges and other installation hardware should not be assumed included unless specifically confirmed with the current PH4000 package supplied.

Recommended With

• DSF3A: Header gasket set
• CATPH4000: High-flow catalytic converters
• Suitable downstream exhaust connections to match the 57mm (2¼") header outlets

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 5.0L 302 Windsor V8 theoretically draws approximately 10,000 litres of intake air per minute at 100% volumetric efficiency and expels around 30,000 litres of hot exhaust gas per minute at approximately 600°C.

Actual airflow varies with RPM, engine load, volumetric efficiency, intake restriction, camshaft specification and engine condition. These figures are theoretical values intended to illustrate the substantial volume of gas that must pass through the exhaust system at higher engine speeds.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Warranty & Compliance

Pacemaker headers are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions.

The vehicle's catalytic converter, oxygen sensor and other emissions-control equipment must remain correctly installed and operational where required. Check applicable state or territory requirements covering exhaust modifications, emissions, vehicle noise and roadworthiness.

FAQ

What vehicles do PH4000 headers suit?
PH4000 suits Ford Falcon EB, ED, EF, EL and XH models fitted with the 5.0L EFI Windsor V8. The application also covers selected NC, NF and NL Fairlane 5.0L EFI V8 models.

Are PH4000 headers Tri-Y?
Yes. Pacemaker specifies PH4000 as a Tri-Y design.

What size are the PH4000 header pipes?
Pacemaker currently specifies 41mm (1⅝") primary pipes, 48mm (1⅞") secondary pipes and 57mm (2¼") flanged outlets.

Will PH4000 fit GT40 cylinder heads?
No. Pacemaker states that PH4000 will not fit GT40 heads as fitted to the 302 Windsor AU II because of the different spark-plug angle.

Will PH4000 fit an AU Falcon?
PH4000 is not the normal AU Falcon application. Pacemaker lists PH4001 for the AU 5.0L EFI Windsor. Confirm the vehicle and cylinder-head configuration before ordering.

Do PH4000 headers suit manual and automatic transmissions?
Yes. Pacemaker specifies PH4000 for both manual and automatic applications.

Are header gaskets available?
Yes. Pacemaker currently specifies DSF3A for PH4000.

Are high-flow catalytic converters available?
Yes. CATPH4000 high-flow catalytic converters are available separately for the PH4000 application.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
