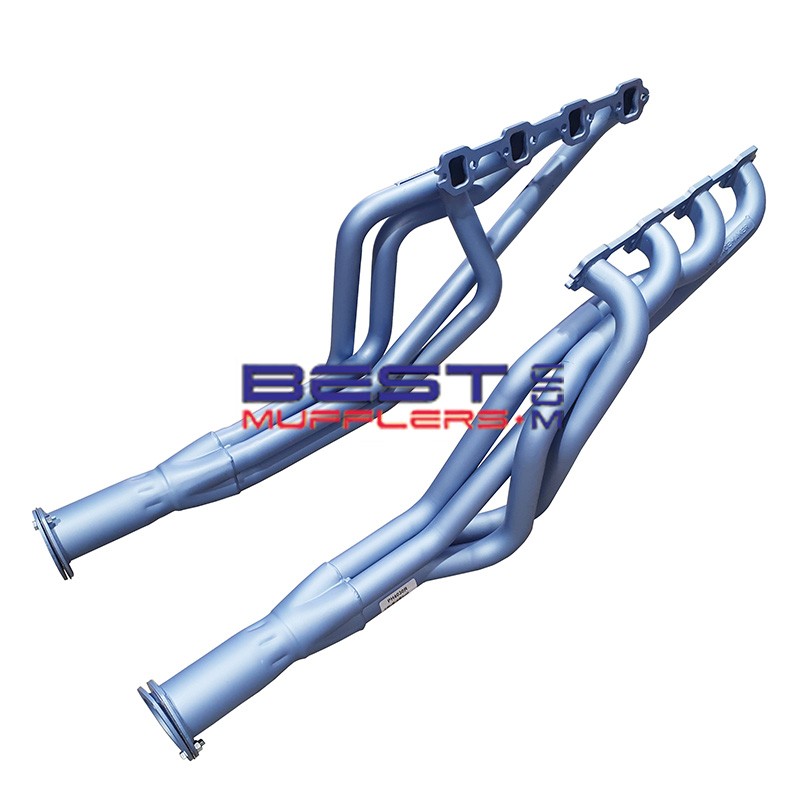

Ford Falcon XR XT XW XY 289 302 Windsor GT40P Pacemaker Headers PH4032

Pacemaker PH4032 headers (extractors) are designed for Ford Falcon XR, XT, XW and XY models fitted with 289, 302 or 5.0L EFI Windsor V8 engines. PH4032 is compatible with both standard Windsor cylinder heads and GT40P cylinder heads, providing a performance header option for classic Falcon Windsor V8 applications and later 5.0L Windsor engine combinations.

PH4032 features Pacemaker's TUNED design with 41mm (1⅝") primary pipes and 76mm (3") outlets. The larger primary and outlet configuration is designed to improve exhaust flow, torque, throttle response and engine performance.

GT40P COMPATIBLE – PH4032 is designed to accommodate the different spark-plug angle found on GT40P cylinder heads as fitted to the AU II 302 Windsor.

Not sure which headers to use for your Windsor engine? Read our Ford Windsor header guide here.

Please check availability and current lead time before ordering.

Key Features

• Designed for Ford Falcon XR, XT, XW and XY Windsor V8 applications
• Suitable for 289, 302 and 5.0L EFI Windsor V8 engines
• Compatible with standard Windsor cylinder heads and GT40P cylinder heads
• Pacemaker TUNED design
• 41mm (1⅝") primary pipes
• 76mm (3") outlets
• Manual and automatic transmission compatible
• Power steering compatible
• Designed to improve exhaust flow, torque, throttle response and engine performance

Construction

Pacemaker PH4032 headers use performance-oriented tubular construction and a vehicle-specific TUNED design developed for Ford Windsor V8 applications using either standard Windsor cylinder heads or GT40P cylinder heads.

The standard headers are supplied in Pacemaker's protective finish. Ceramic coating is also available separately for customers wanting additional heat management and surface protection.

Additional Options

• Ceramic Coating: Available separately – please contact us for current coating options, pricing and lead time
• DSF3: Recommended exhaust manifold/header gaskets – available separately
• Matching exhaust system components – available separately

Vehicle Fitment

• Make: Ford
• Model: Falcon
• Series: XR / XT / XW / XY
• Years: 1966-1972
• Engine: 289 / 302 / 5.0L EFI Windsor V8
• Cylinder Heads: Standard Windsor / GT40P
• Transmission: Manual / Automatic
• Power Steering: Yes

Header Specifications

• Part Number: PH4032L/R
• Design: TUNED
• Primary Pipe: 41mm (1⅝")
• Secondary Pipe: N/A
• Outlet: 76mm (3")
• Power Steering: Yes
• Air Conditioning: N/A
• Oxygen Sensor: N/A
• EGR: N/A
• Recommended Gasket: DSF3
• Approximate Fitting Time: 3 hours

Fitment Notes

• Designed for Ford Falcon XR, XT, XW and XY models fitted with 289, 302 or 5.0L EFI Windsor V8 engines.
• Suitable for both standard Windsor cylinder heads and GT40P cylinder heads.
• GT40P compatibility accommodates the different spark-plug angle found on the AU II 302 Windsor cylinder head.
• Suits manual and automatic transmission applications.
• Power steering compatible.
• Column-change automatic applications may require linkage modification.
• Confirm engine, cylinder-head, transmission, engine-mount and steering configuration before ordering where the vehicle has been modified.
• Check spark-plug and plug-lead clearance carefully, particularly with GT40P cylinder heads.
• Protect painted or ceramic-coated surfaces during trial fitting and installation.
• Check clearance around the steering, starter motor, engine mounts, transmission and surrounding components before fully tightening the headers.
• Clearance may vary where non-original engine mounts, steering components or other aftermarket parts have been fitted.
• Professional installation is recommended.

What's Included

• Pacemaker PH4032L left-hand header assembly
• Pacemaker PH4032R right-hand header assembly

Gaskets, bolts, outlet flanges and other installation hardware should not be assumed included unless specifically confirmed with the current PH4032 package supplied.

Recommended With

• DSF3: Exhaust manifold/header gaskets
• Suitable downstream exhaust connections to match the header outlets

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, a 289ci (4.7L) Windsor V8 theoretically draws approximately 9,400 litres of intake air per minute at 100% volumetric efficiency and expels around 28,200 litres of hot exhaust gas per minute at approximately 600°C.

At the same engine speed, a 302ci / 5.0L Windsor V8 theoretically draws approximately 10,000 litres of intake air per minute and expels around 30,000 litres of hot exhaust gas per minute at approximately 600°C.

Actual airflow varies with RPM, engine load, volumetric efficiency, camshaft specification and engine condition. These figures are theoretical values intended to illustrate the substantial volume of gas that must pass through the exhaust system at higher engine speeds.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Confirm the engine and cylinder-head combination before installation, particularly where GT40P cylinder heads have been fitted.
• Apply penetrating lubricant to existing exhaust fasteners before removal.
• Remove all traces of the old manifold gaskets and inspect the cylinder-head sealing surfaces.
• Fit new DSF3 exhaust manifold/header gaskets.
• Trial-fit both header assemblies and check all clearances before fully tightening the mounting hardware.
• Check spark-plug and plug-lead clearance carefully on GT40P-head applications.
• Check clearance around the steering, starter motor, engine mounts, transmission and surrounding components.
• Protect painted or ceramic-coated surfaces during trial fitting and installation.
• Check all exhaust connections for leaks after installation.
• Inspect header mounting hardware after the initial heat cycles.

Warranty & Compliance

Pacemaker PH4032 headers are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions.

Any modified engine, cylinder-head or exhaust installation must comply with applicable state or territory requirements covering vehicle modifications, exhaust noise and roadworthiness.

FAQ

Which Ford Falcons do these PH4032 headers suit?
This listing is for Ford Falcon XR, XT, XW and XY models fitted with 289, 302 or 5.0L EFI Windsor V8 engines.

Will PH4032 fit standard Windsor cylinder heads?
Yes. Pacemaker specifies PH4032 for standard Windsor cylinder heads as well as GT40P cylinder heads.

Will PH4032 fit GT40P heads?
Yes. PH4032 is designed to accommodate the different spark-plug angle found on GT40P cylinder heads as fitted to the AU II 302 Windsor.

What size are the PH4032 header pipes?
PH4032 uses 41mm (1⅝") primary pipes and 76mm (3") outlets.

What is the PH4032 header design?
Pacemaker specifies PH4032 as a TUNED design.

Do PH4032 headers suit manual and automatic transmissions?
Yes. Pacemaker specifies PH4032 for both manual and automatic transmission applications.

Do PH4032 headers suit power steering?
Yes. Pacemaker specifies PH4032 as power-steering compatible.

Which header gaskets are recommended?
Pacemaker currently specifies DSF3 exhaust manifold/header gaskets for PH4032.

What is the difference between PH4020 and PH4032?
PH4020 is a smaller Tri-Y design with 38mm primary pipes, 44mm secondary pipes and 51mm outlets and does not suit GT40P cylinder heads. PH4032 is a larger TUNED design with 41mm primary pipes and 76mm outlets and suits both standard Windsor and GT40P cylinder heads.

Can PH4032 headers be ceramic coated?
Yes. Ceramic coating is available as an optional upgrade. Please contact us for current coating options, pricing and lead time.
