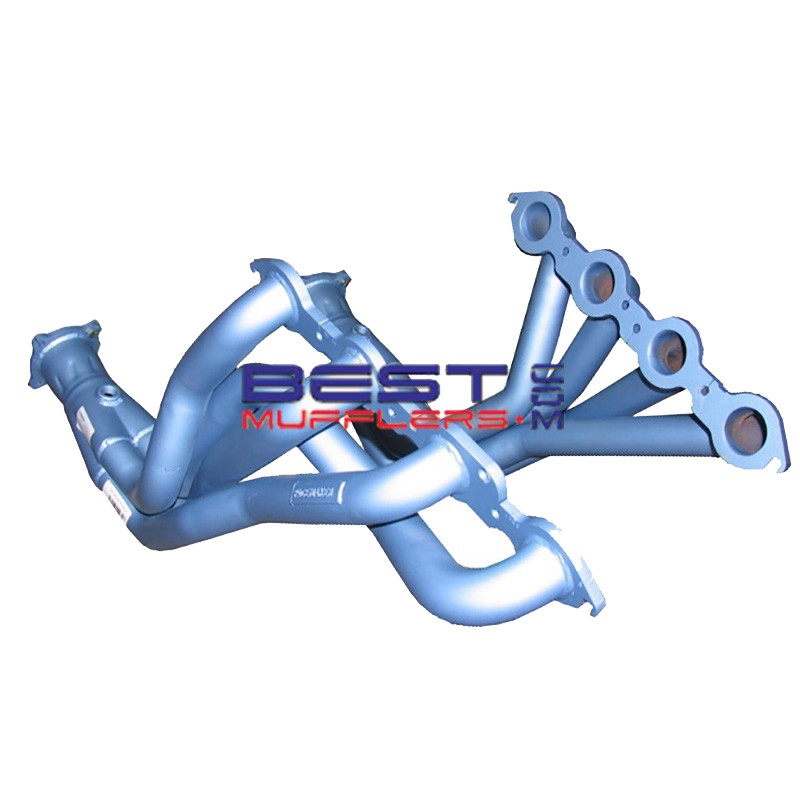

HSV VF GTS GEN-F GEN-F2 2013-2017 6.2L Supercharged LSA Pacemaker Headers PH5384

Pacemaker PH5384 Competition headers (extractors) are designed for HSV VF GEN-F and GEN-F2 models fitted with the 6.2L supercharged LSA V8.

PH5384 uses Pacemaker's tuned 4-into-1 competition design with 48mm (1⅞") primary pipes. Developed for the high exhaust-flow requirements of the supercharged LSA V8, these headers are designed to improve exhaust flow, torque, throttle response and engine performance.

PH5384 is Pacemaker's 1⅞" primary LSA competition header. For the larger 2" primary version, see Pacemaker PH5385.

Please check availability and current lead time before ordering.

Key Features

• Suits HSV VF GEN-F and GEN-F2 LSA applications
• Suits 6.2L supercharged LSA V8
• Competition header design
• Tuned 4-into-1 configuration
• 48mm (1⅞") primary pipes
• Designed for high-performance street and modified LSA applications
• Designed to improve exhaust flow, torque and throttle response
• Pacemaker PH5384L / PH5384R header assemblies

Construction

Pacemaker PH5384 uses a tuned 4-into-1 competition configuration with large 48mm (1⅞") primary pipes designed for the high exhaust-flow requirements of HSV's supercharged LSA V8.

The standard Pacemaker finish uses the distinctive Pacemaker Blue heat-resistant coating, designed to withstand temperatures up to approximately 800°C.

Additional Options

Ceramic Coating: PHC40 ceramic coating may be available for improved heat management and corrosion resistance. Please contact Best Mufflers for current availability.

DSF138: Replacement cylinder-head exhaust gaskets are available separately.

Oxygen Sensor Wiring Extensions: The supplied PH5384 information specifies PEX5385 x 2 oxygen sensor wiring extensions. Please confirm current kit requirements when ordering.

Vehicle Fitment

• Make: HSV
• Platform: VF
• Series: GEN-F / GEN-F2
• Year Range: 2013-2017
• Engine: LSA V8
• Capacity: 6.2L / 6162cc
• Aspiration: Supercharged
• Drive: Rear-Wheel Drive

PH5384 is an LSA application. The 6.2L supercharged LSA should not be confused with the naturally aspirated 6.2L LS3.

HSV Applications

GEN-F GTS: PH5384 is specifically listed by Pacemaker for the HSV VF GTS LSA GEN-F Series 1.

GEN-F2: Pacemaker currently describes PH5384 as suitable for all GEN-F2 LSA HSV models.

This includes applicable LSA-powered GEN-F2 variants such as GTS, Clubsport, Maloo, Senator and GTSR, subject to the vehicle retaining the LSA engine and compatible exhaust configuration.

GTSR W1: The GTSR W1 uses the supercharged LS9 rather than the LSA and should not be included as a PH5384 LSA application.

Header Specifications

• Part Number: PH5384 L/R
• Brand: Pacemaker
• Design: Tuned 4-into-1 Competition Header
• Primary Pipe: 48mm (1⅞")
• Engine: 6.2L Supercharged LSA V8

PH5384 vs PH5385

Pacemaker offers two different 4-into-1 competition header sizes for the HSV LSA application.

PH5384: 48mm (1⅞") primary pipes.

PH5385: 51mm (2") primary pipes with 89mm (3½") outlets.

PH5384 therefore provides the smaller of the two Pacemaker LSA primary-pipe options, while PH5385 provides increased primary-pipe capacity for higher-output combinations.

Fitment Notes

GEN-F: Pacemaker specifically lists PH5384 for the HSV VF GTS LSA GEN-F Series 1.

GEN-F2: Pacemaker lists PH5384 for all GEN-F2 LSA HSV models.

LSA Only: Confirm that the vehicle is fitted with the 6.2L supercharged LSA V8. PH5384 should not be selected simply because the vehicle is a VF HSV.

Modified Vehicles: Many LSA-powered HSVs have modified exhaust systems, catalytic converters, supercharger upgrades or other engine modifications. Check the complete exhaust configuration before ordering.

Protect painted surfaces during trial fitting and check all clearances before final tightening.

What's Included

• Pacemaker PH5384L left-side header assembly
• Pacemaker PH5384R right-side header assembly
• Outlet flange plates with gaskets x 2 to adapt to the exhaust system, based on supplied PH5384 product information

Other gaskets, oxygen sensor extensions, bolts and installation components should not be assumed to be included unless confirmed with the current kit before ordering.

Recommended With

DSF138 – replacement cylinder-head exhaust gaskets.

PEX5385 x 2 – oxygen sensor wiring loom extensions where required.

A suitable high-flow catalytic converter and performance exhaust system should be selected to match the PH5384 header outlet and vehicle configuration.

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 6.2L LSA V8 theoretically displaces approximately 12,400 litres of air per minute at 100% volumetric efficiency before taking the additional airflow supplied by the supercharger into account.

Because the LSA is supercharged, actual intake and exhaust gas flow under boost can be substantially greater than the naturally aspirated theoretical displacement calculation. Actual flow depends on boost pressure, engine speed, load, tuning and engine modifications.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Before installation, confirm the vehicle is fitted with the 6.2L supercharged LSA and check the existing catalytic converters and downstream exhaust configuration.

Protect the header finish during trial fitting and ensure oxygen sensor wiring is routed safely away from the headers and other high-temperature components.

Professional installation is recommended.

Warranty & Compliance

Pacemaker headers are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions.

All catalytic converters, oxygen sensors and other emissions-control equipment required for the vehicle must remain correctly installed and operational.

Installation must comply with applicable Australian state or territory requirements relating to emissions, exhaust noise and vehicle modifications.

FAQ

What vehicles do PH5384 headers fit?
Pacemaker currently lists PH5384 for the HSV VF GTS LSA GEN-F Series 1 and all GEN-F2 LSA HSV models.

What engine does PH5384 fit?
PH5384 is designed for the 6.2L supercharged LSA V8.

Is the LSA the same as the LS3?
No. Both are 6.2L GM V8 engines, but the LSA used in these HSV applications is supercharged, while the LS3 is naturally aspirated.

Are PH5384 headers 4-into-1?
Yes. Pacemaker currently describes PH5384 as a 4-into-1 header.

What size are PH5384 headers?
PH5384 uses 1⅞" (approximately 48mm) primary pipes.

What is the difference between PH5384 and PH5385?
PH5384 uses 1⅞" (48mm) primary pipes. PH5385 is the larger version using 2" (51mm) primary pipes.

Does PH5384 fit GEN-F2 HSV models?
Yes. Pacemaker's current catalogue describes PH5384 as suitable for all GEN-F2 LSA HSV models.

Does PH5384 fit the GTSR?
The LSA-powered GTSR falls within Pacemaker's GEN-F2 LSA description. The GTSR W1 is different because it uses the LS9 engine.

Should I use PH5384 or PH5385?
Both are LSA 4-into-1 competition headers. PH5384 has 1⅞" primaries while PH5385 has larger 2" primaries. Contact Best Mufflers with your engine modifications and intended use if you need help selecting the appropriate size.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times. Pacemaker warehouses are located in VIC, SA and QLD.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
