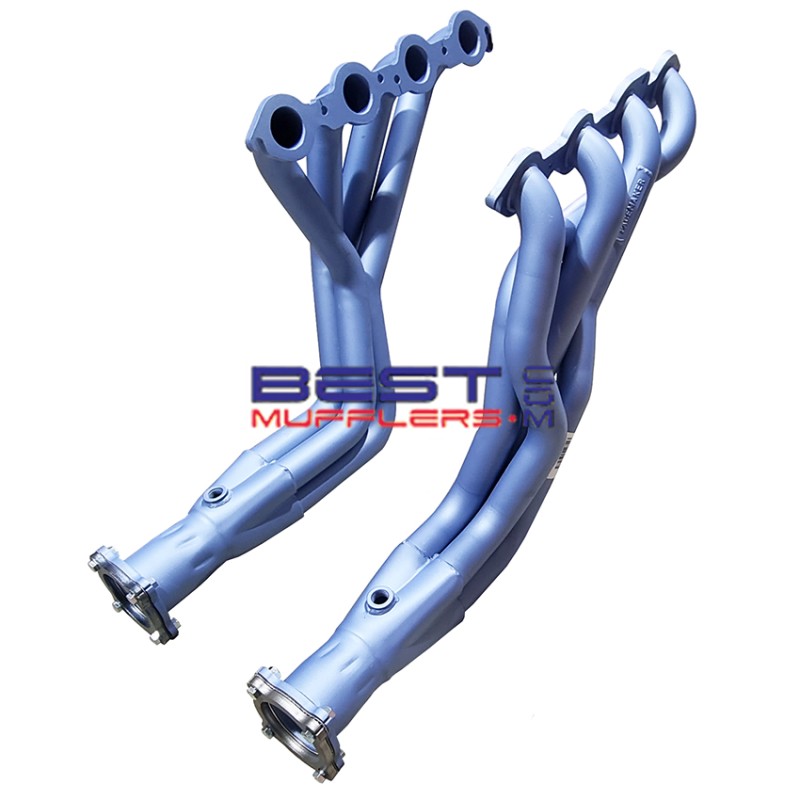

Holden Commodore VE VF 2006-2017 6.0L 6.2L V8 Pacemaker Competition Headers PH5381

Pacemaker PH5381 Competition headers (extractors) are designed for Holden Commodore VE and VF V8 models from 2006-2017 and applicable WM and WN Statesman/Caprice models fitted with selected 6.0L and 6.2L V8 engines.

PH5381 uses Pacemaker's performance-oriented 4-into-1 tuned-length competition design with large 44mm (1¾") primary pipes and 76mm (3") collector outlets. This configuration is designed to improve exhaust flow, torque, throttle response and engine performance.

The PH5381 application covers a broad range of Holden and HSV V8 engines including selected 6.0L Gen IV, LS2 and 6.2L LS3 applications. It is not suitable for the supercharged HSV LSA engine.

IMPORTANT – PH5381 requires aftermarket catalytic converters. It does not connect directly to the original factory catalytic converters.

Does NOT fit HSV models fitted with the supercharged LSA engine – see Pacemaker PH5385.

Please check availability and current lead time before ordering.

Key Features

• Suits selected Holden Commodore VE and VF V8 models
• Suits applicable WM and WN Statesman/Caprice V8 models
• Application range: July 2006-October 2017 for VE-VF Commodore
• Application range: August 2006-October 2017 for WM-WN Statesman/Caprice
• Suits selected 6.0L and 6.2L V8 engines
• 4-into-1 competition header design
• Tuned design
• 44mm (1¾") primary pipes
• 76mm (3") collector outlets
• Manual and automatic transmission compatible
• Power steering compatible
• Air conditioning compatible
• Oxygen sensor provision
• Aftermarket catalytic converters required
• PEX5367Z oxygen sensor wiring loom extension included

Construction

Pacemaker PH5381 uses a 4-into-1 competition header configuration with large 44mm (1¾") primary pipes feeding directly into 76mm (3") collector outlets.

The standard Pacemaker finish uses the distinctive Pacemaker Blue heat-resistant coating, designed to withstand temperatures up to approximately 800°C.

Additional Options

Ceramic Coating: PHC40 ceramic coating may be available for improved heat management and corrosion resistance. Please contact Best Mufflers for current availability.

DSF138: Replacement cylinder-head exhaust gaskets are available separately.

Pacemaker High-Flow Catalytic Converters: PH5381 requires aftermarket catalytic converters. Pacemaker lists CAT5380-100L/R for a 2½" exhaust connection and CAT5387-100L/R for a 3" exhaust connection.

Vehicle Fitment

• Make: Holden / HSV
• Models: Commodore / Statesman / Caprice and applicable HSV derivatives
• Series: VE / VF / WM / WN
• VE-VF Commodore: July 2006-October 2017
• WM-WN Statesman/Caprice: August 2006-October 2017
• Engine Capacity: 6.0L / 6.2L V8
• Transmission: Manual / Automatic
• Drive: Rear-Wheel Drive

EXCLUSION: PH5381 does NOT fit HSV models equipped with the supercharged 6.2L LSA V8. See Pacemaker PH5385 for the LSA application.

Engine Applications

VE Commodore: Australian VE Commodore V8 models used several 6.0L Gen IV engines during production, including L98, L76 and L77 depending on model, transmission and production date.

VF Commodore: Early VF V8 models continued with the 6.0L L77. The VF Series II introduced the 6.2L LS3 into Holden Commodore V8 models.

HSV: Applicable naturally aspirated HSV VE/VF derivatives used engines including the 6.0L LS2 and 6.2L LS3. The later supercharged 6.2L LSA is excluded from PH5381.

The original listing description of “LS1 / LS2 / LS3” is not correct for this application. PH5381 is not an LS1 header application.

Header Specifications

• Part Number: PH5381 L/R
• Brand: Pacemaker
• Design: 4-into-1 Competition Header
• Header Type: Tuned Design
• Primary Pipe: 44mm (1¾")
• Secondary Pipe: N/A
• Outlet: 76mm (3")
• Power Steering: Yes
• Air Conditioning: Yes
• Oxygen Sensor Provision: Yes
• EGR: N/A
• Replacement Gasket: DSF138
• Approximate Fitting Time: 2 hours

Fitment Notes

Aftermarket Catalytic Converters Required: PH5381 is designed to be used with aftermarket catalytic converters rather than the original factory catalytic converters.

2½" Catalytic Converters: Pacemaker lists CAT5380-100L/R for applications using a 2½" exhaust connection.

3" Catalytic Converters: Pacemaker lists CAT5387-100L/R for applications using a 3" exhaust connection.

Oxygen Sensor Extension: One PEX5367Z oxygen sensor wiring loom extension is required and Pacemaker currently specifies that this extension is included with the PH5381 kit.

LSA: PH5381 does not fit HSV vehicles equipped with the supercharged LSA engine. Use the appropriate Pacemaker PH5385 application.

Because many VE and VF V8 vehicles have already been modified, check existing headers, catalytic converters, exhaust diameter, engine mounts and other aftermarket components before installation.

What's Included

• Pacemaker PH5381L left-side header assembly
• Pacemaker PH5381R right-side header assembly
• 1 x PEX5367Z oxygen sensor wiring loom extension

Pacemaker's current listing confirms the PEX5367Z extension is included. Gaskets, catalytic converters, header bolts and other installation components should not be assumed to be included unless specifically confirmed before ordering.

Recommended With

DSF138 – replacement cylinder-head exhaust gaskets.

CAT5380-100L/R – Pacemaker high-flow catalytic converters for a 2½" exhaust connection.

CAT5387-100L/R – Pacemaker high-flow catalytic converters for a 3" exhaust connection.

BOL02-10 – replacement header bolts where required.

Matching Pacemaker performance exhaust systems are also available for selected VE and VF applications.

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, a 6.0L V8 theoretically draws approximately 12,000 litres of intake air per minute at 100% volumetric efficiency and expels around 36,000 litres of hot exhaust gas per minute at approximately 600°C.

At the same engine speed, a 6.2L V8 theoretically draws approximately 12,400 litres of intake air per minute and expels around 37,200 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Before installation, confirm the exact vehicle model, engine and existing exhaust configuration.

PH5381 requires aftermarket catalytic converters, so plan the complete header, catalytic converter and exhaust configuration before commencing installation.

Protect the header finish during trial fitting and ensure oxygen-sensor wiring is routed safely away from the headers and other high-temperature components.

Professional installation is recommended.

Warranty & Compliance

Pacemaker headers are covered against manufacturing defects subject to Pacemaker's current warranty terms and conditions.

All catalytic converters, oxygen sensors and other emissions-control equipment required for the vehicle must remain correctly installed and operational.

Installation must comply with applicable Australian state or territory requirements relating to emissions, exhaust noise and vehicle modifications.

FAQ

What vehicles do PH5381 headers fit?
Pacemaker lists PH5381 for selected VE-VF Commodore and WM-WN Statesman/Caprice models from 2006-2017 fitted with applicable 6.0L and 6.2L V8 engines.

What engines suit PH5381?
The application covers selected 6.0L Gen IV V8 engines, 6.0L LS2 and 6.2L LS3. Holden VE/VF applications also include engines such as the L98, L76 and L77 within Pacemaker's broader 6.0L Gen IV listing.

Does PH5381 fit an LS1?
No. The VE/VF PH5381 application does not include the earlier 5.7L LS1 engine.

Does PH5381 fit the supercharged HSV LSA?
No. PH5381 specifically excludes the 6.2L supercharged LSA. See Pacemaker PH5385 for the appropriate LSA application.

Are PH5381 headers Tri-Y?
No. PH5381 is a 4-into-1 competition header.

What size are PH5381 headers?
Pacemaker specifies 44mm (1¾") primary pipes with 76mm (3") outlets.

Do PH5381 headers fit manual and automatic vehicles?
Yes. Pacemaker lists PH5381 for both manual and automatic transmissions.

Can I use the original catalytic converters?
No. Pacemaker specifies that aftermarket catalytic converters are required with PH5381.

Which Pacemaker catalytic converters suit PH5381?
Pacemaker lists CAT5380-100L/R for a 2½" exhaust connection and CAT5387-100L/R for a 3" exhaust connection.

Do I need an oxygen sensor wiring extension?
Yes. One PEX5367Z oxygen sensor wiring loom extension is required, and Pacemaker currently specifies that it is included with the PH5381 kit.

What gasket suits PH5381?
Pacemaker specifies DSF138.
