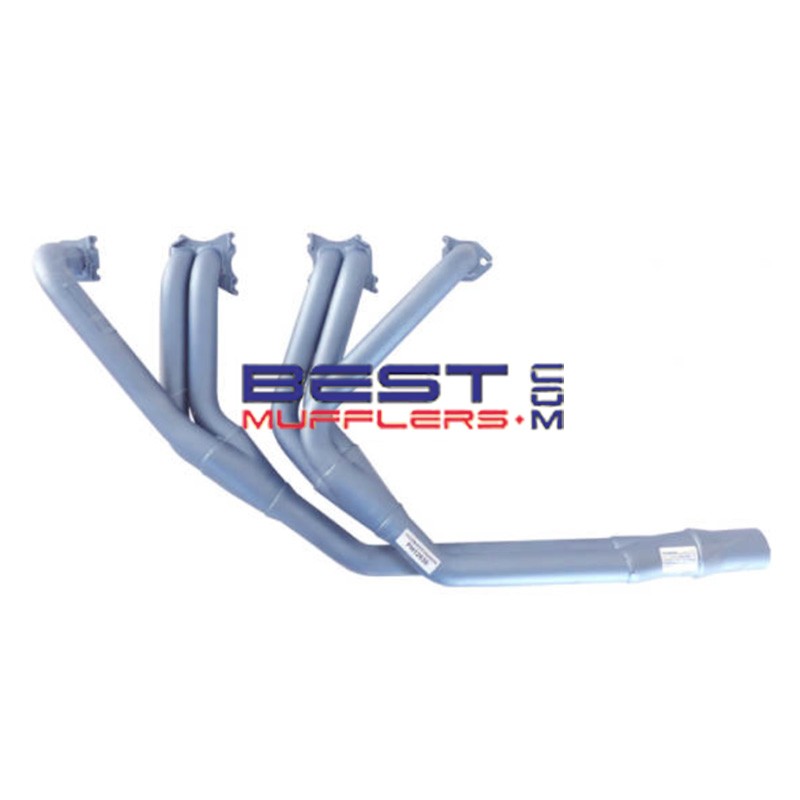

Toyota LandCruiser FJ62 FJ75 4.0L 3F Pacemaker Headers PH12630

Pacemaker PH12630 exhaust headers (extractors) are designed for selected Toyota LandCruiser FJ62 and FJ75 models fitted with the 4.0L 3F petrol engine.

Replacing the restrictive factory exhaust manifold, PH12630 features an interference design with mandrel-bent 42mm primary pipes, 48mm secondary pipes and a 57mm outlet. The system is designed to improve exhaust gas flow and scavenging for better torque, throttle response and engine performance.

Important: PH12630 uses an inside-chassis design. Left Hand Drive compatibility should be confirmed before ordering.

Key Features

• Designed for selected Toyota LandCruiser FJ62 & FJ75 applications
• Suits the 4.0L 3F petrol engine
• Interference-design performance headers
• Mandrel-bent 42mm primary pipes
• 48mm secondary pipes
• 57mm outlet
• Inside-chassis fitment
• Thick machined flanges for durability and reliable sealing
• Smooth collector design for improved exhaust gas flow and scavenging

Construction

• High-quality steel tubing
• Mandrel-bent pipework for smooth exhaust gas flow
• Strong welded construction for durability
• Thick machined flanges
• Pacemaker Blue heat-resistant finish rated to approximately 800°C
• Australian manufactured by Pacemaker

Additional Options

• PHC70 Ceramic Coating: Optional ceramic coating for improved heat management, surface durability and corrosion resistance
• DSF040: Recommended exhaust manifold/header gasket available separately
• Matching exhaust components may be available separately – contact Best Mufflers for advice
• Professional fitting service available – contact Best Mufflers to arrange installation

Vehicle Fitment

• Make: Toyota
• Model: LandCruiser
• Series: FJ62 / FJ75
• Engine: 3F
• Capacity: 4.0L / 3956cc
• Configuration: Inline 6 Petrol

Header Specifications

• Part Number: PH12630
• Design: Interference
• Primary Pipe Size: 42mm
• Secondary Pipe Size: 48mm
• Outlet Size: 57mm
• Fitment: Inside chassis

Fitment Notes

• Designed for selected Toyota LandCruiser FJ62 and FJ75 models fitted with the 4.0L 3F petrol engine
• Inside-chassis fitment
• Left Hand Drive compatibility should be confirmed before ordering
• Confirm the vehicle, chassis and engine configuration before ordering
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during trial fitting and installation
• Check clearance around engine mounts, steering components, starter motor and surrounding components during installation
• Clearance may vary where non-original engine mounts, steering components or aftermarket parts have been fitted
• Please check availability and current lead time before ordering.

What’s Included

• 1 x Pacemaker PH12630 header assembly

Recommended With

• DSF040 exhaust manifold/header gasket
• Matching intermediate pipes, joiners or adaptors where required
• Matching performance exhaust system where further exhaust flow improvement is required
• PHC70 ceramic coating where additional heat management is desired

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 3956cc Toyota 3F six-cylinder engine theoretically draws in approximately 7,912 litres of intake air per minute and can expel around 23,736 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Apply penetrating lubricant to manifold fasteners and exhaust connections before removal
• Remove all traces of the original manifold gasket and inspect the cylinder-head sealing surface
• Fit a new DSF040 exhaust manifold/header gasket
• Trial-fit the header before fully tightening the mounting hardware
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during trial fitting and installation
• Pay particular attention to steering and chassis clearance due to the inside-chassis header design
• Check clearance around engine mounts, starter motor, transmission, wiring and other surrounding components
• Check all exhaust connections for leaks after installation
• Inspect and re-tighten the header mounting hardware after the initial heat cycles

Warranty & Compliance

Pacemaker PH12630 headers are backed by Pacemaker's 2-year manufacturer warranty, subject to the manufacturer's current warranty terms and conditions.

For vehicles manufactured from 1986 onwards, the completed exhaust system must retain any emissions-control equipment required for the vehicle and comply with the emissions, roadworthiness and registration requirements applicable in your state or territory.

FAQ

Which vehicles do Pacemaker PH12630 headers fit?
PH12630 is designed for selected Toyota LandCruiser FJ62 and FJ75 models fitted with the 4.0L 3F petrol engine.

What engine does PH12630 suit?
PH12630 is designed for the Toyota 3F 3956cc inline-six petrol engine in the applicable FJ62 and FJ75 LandCruiser applications.

Do PH12630 headers run inside the chassis?
Yes. PH12630 uses an inside-chassis fitment. Steering, chassis and surrounding clearances should be checked carefully during installation.

Will PH12630 fit a Left Hand Drive LandCruiser?
Left Hand Drive compatibility should be confirmed before ordering because steering location and inside-chassis clearance can affect fitment.

What size are the PH12630 header pipes?
PH12630 uses 42mm primary pipes, 48mm secondary pipes and a 57mm outlet.

Which exhaust gasket is recommended?
The recommended exhaust manifold/header gasket is DSF040, available separately.

Can PH12630 headers be ceramic coated?
Yes. PHC70 ceramic coating is available as an optional upgrade for improved heat management and surface durability. Please contact us for current pricing and lead time.
