Ford Falcon XR-XF 1966-1988 302 351 Cleveland CHI 3V Raised Port Pacemaker Headers PH4096

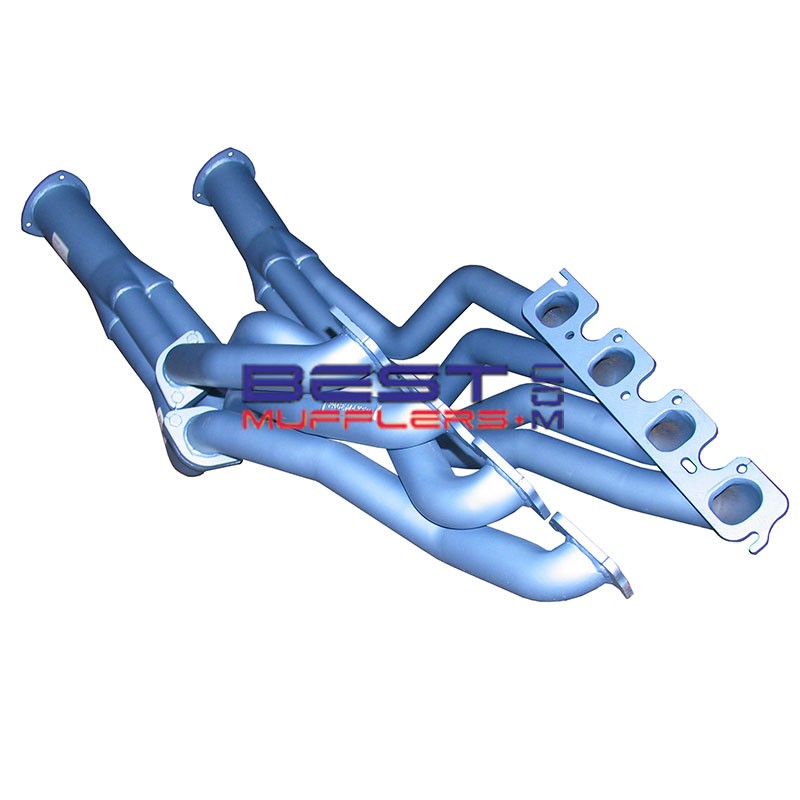

Pacemaker PH4096 exhaust headers (extractors) are designed for Ford Falcon XR, XT, XW, XY, XA, XB, XC, XD, XE and XF applications running 302 or 351 Cleveland V8 engines fitted with compatible aftermarket 3V raised-port cylinder heads.

PH4096 features a tuned design with large 48mm (1⅞") primary pipes and 89mm (3½") outlets. Designed for high-performance Cleveland combinations, these headers provide the exhaust flow capacity required by modified engines using raised-port aftermarket cylinder heads.

Important: Not all aftermarket 3V cylinder heads have raised exhaust ports. PH4096 will only fit compatible raised-port heads. Confirm your cylinder-head configuration before ordering.

Please check availability and current lead time before ordering.

Not sure which headers to use for your Cleveland engine? Read our Ford Cleveland header guide here.

Key Features

• Designed for Ford Falcon XR-XF applications
• Suits 302 & 351 Cleveland V8 engines fitted with compatible aftermarket 3V raised-port cylinder heads
• Tuned header design
• Large 48mm (1⅞") primary pipes
• Large 89mm (3½") outlets
• Designed for high-performance Cleveland engine applications
• Suitable for power steering
• Suitable for factory air conditioning
• Designed to improve exhaust gas flow and scavenging

Construction

• High-quality steel tubing
• Mandrel-bent pipework for consistent exhaust gas flow
• Quality welded construction
• Thick header flanges
• Pacemaker Blue heat-resistant finish

Additional Options

• PHC40 Ceramic Coating: Optional ceramic coating for improved heat management and surface durability
• DSF018: Replacement exhaust manifold/header gasket set available separately

Vehicle Fitment

• Make: Ford
• Model: Falcon
• Series: XR / XT / XW / XY / XA / XB / XC / XD / XE / XF
• Falcon Chassis Range: 1966-1988
• Engine: 302 / 351 Cleveland V8
• Cylinder Heads: Compatible aftermarket 3V raised-port heads

Note: The 1966-1988 range represents the XR-XF Falcon chassis range. Later applications may involve an engine conversion or modified vehicle rather than a factory-installed Cleveland V8.

Header Specifications

• Part Number: PH4096
• Design: Tuned
• Primary Pipe Size: 48mm (1⅞")
• Outlet Size: 89mm (3½")
• Power Steering: Yes
• Air Conditioning: Yes
• Oxygen Sensor: N/A
• EGR: N/A
• Recommended Gasket: DSF018
• Pacemaker Fitting Time: Approximately 3 hours

Fitment Notes

• Will only fit compatible aftermarket 3V raised-port cylinder heads
• Not all aftermarket 3V heads have raised exhaust ports – confirm your cylinder-head specifications before ordering
• Will fit FMX automatic transmission
• Will not fit C6 automatic transmission
• Will not fit column-change manual or automatic transmission applications
• Pacemaker recommends considering its applicable 4V header range for standard deck-height cylinder-head applications
• Older Falcons are commonly modified; engine position, transmission, steering, suspension and engine mounts can affect header clearance
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during trial fitting and installation
• Please check availability and current lead time before ordering.

What’s Included

• Pacemaker PH4096 left and right header assemblies
• Tapered outlet reducing cones
• 16 x header bolts

Recommended With

• DSF018 exhaust manifold/header gasket set
• Matching intermediate pipes or exhaust system suitable for the large 89mm header outlets
• PHC40 ceramic coating where additional heat management is desired

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, a 302ci (approximately 4.95L) Cleveland V8 theoretically draws in approximately 9,900 litres of intake air per minute and can expel around 29,700 litres of hot exhaust gas per minute at approximately 600°C.

At the same engine speed, a 351ci (approximately 5.75L) Cleveland V8 theoretically draws in approximately 11,500 litres of intake air per minute and can expel around 34,500 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Confirm the exact cylinder-head make, model and exhaust-port position before ordering
• Apply penetrating lubricant to existing exhaust fasteners before removal
• Fit new DSF018 exhaust manifold/header gaskets
• Trial-fit both headers before fully tightening the mounting hardware
• Check transmission, steering, engine mounts, starter motor and chassis clearance carefully
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during installation
• Check all exhaust connections for leaks after installation
• Inspect and re-tighten the header mounting hardware after the initial heat cycles

Warranty & Compliance

Pacemaker PH4096 headers are covered by the applicable Pacemaker manufacturer warranty, subject to Pacemaker's current warranty terms and conditions.

PH4096 is intended for modified engine applications. Engine, cylinder-head, transmission and exhaust modifications can affect vehicle compliance. The completed vehicle must comply with applicable modification, exhaust noise and roadworthiness requirements.

FAQ

Which Falcons do Pacemaker PH4096 headers fit?
Pacemaker lists PH4096 for Ford Falcon XR, XT, XW, XY, XA, XB, XC, XD, XE and XF applications running 302 or 351 Cleveland engines with compatible aftermarket 3V raised-port cylinder heads.

Do PH4096 headers fit 302 Cleveland engines?
Yes. Pacemaker lists PH4096 for both 302 and 351 Cleveland applications when fitted with the correct aftermarket 3V raised-port cylinder heads.

Do PH4096 headers fit all CHI 3V heads?
No. The important requirement is the raised exhaust-port configuration. Not all aftermarket 3V cylinder heads have raised ports, so the cylinder-head specification must be confirmed before ordering.

Will PH4096 fit standard 2V or 4V Cleveland heads?
PH4096 is specifically designed around aftermarket 3V raised-port cylinder heads. Pacemaker recommends its applicable 4V header range for standard deck-height applications.

Will PH4096 fit an FMX automatic?
Yes. Pacemaker currently specifies that PH4096 will fit an FMX automatic transmission.

Will PH4096 fit a C6 automatic?
No. PH4096 will not fit a C6 automatic transmission.

Will PH4096 fit a column-change transmission?
No. Pacemaker specifies that PH4096 will not fit column-change manual or automatic applications.

What size are the PH4096 header pipes?
Pacemaker specifies 48mm (1⅞") primary pipes with 89mm (3½") outlets.

Which gasket suits PH4096?
Pacemaker specifies DSF018 for this application.

Can PH4096 headers be ceramic coated?
Yes. PHC40 ceramic coating is available as an optional upgrade. Please contact us for current pricing and lead time.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
