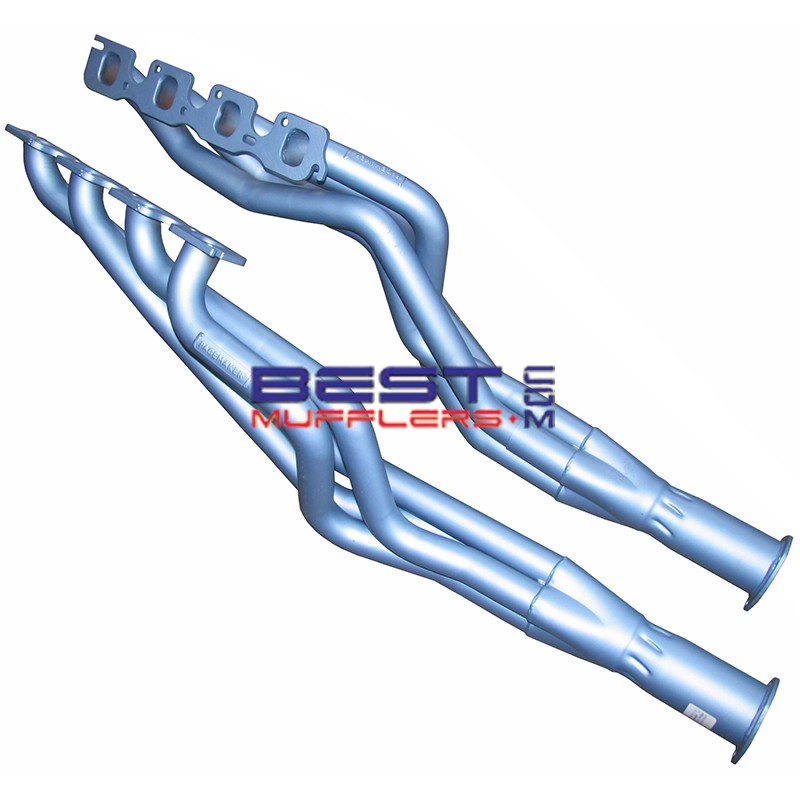

Ford Falcon XR XT XW XY 302 & 351 2V Cleveland Pacemaker Headers PH4070

Pacemaker PH4070 exhaust headers (extractors) are designed for selected Ford Falcon XR, XT, XW and XY models fitted with 302 or 351 Cleveland V8 engines using 2V cylinder heads.

Featuring a tuned-length performance design with 45mm primary pipes and 76mm flanged outlets, PH4070 is designed to improve exhaust gas flow and scavenging for better torque, throttle response and usable engine performance.

Important: PH4070 will fit FMX automatic applications but will not fit C6 automatic or column-change manual/automatic applications.

Not sure which headers to use for your Cleveland engine? Read our Ford Cleveland header guide here.

Large Item, please contact us for freight charges before ordering.

Key Features

• Designed for selected Ford Falcon XR, XT, XW & XY applications
• Suits 302 & 351 Cleveland V8 engines with 2V cylinder heads
• Tuned-length performance header design
• 45mm primary pipes
• 76mm flanged outlets
• Thick machined flanges for strength, durability and reliable sealing
• Smooth collector design for improved exhaust gas flow and scavenging
• Designed to improve torque, throttle response and engine performance
• Australian-made Pacemaker performance headers

Construction

• High-quality steel tubing
• Precision welded construction for strength and durability
• Thick machined cylinder-head flanges
• Pacemaker Blue heat-resistant finish rated to approximately 800°C
• Australian manufactured by Pacemaker

Additional Options

• PHC40 Ceramic Coating: Optional ceramic coating for improved heat management, surface durability and corrosion resistance
• DSF027: Recommended exhaust manifold/header gasket set available separately
• Matching performance exhaust components may be available separately
• Professional fitting service available – contact Best Mufflers to arrange installation

Vehicle Fitment

• Make: Ford
• Model: Falcon
• Series: XR / XT / XW / XY
• Engine: 302 / 351 Cleveland V8
• Cylinder Heads: 2V Cleveland

Fitment Notes

• Suits selected Ford Falcon XR, XT, XW and XY applications fitted with 302 or 351 Cleveland V8 engines
• Designed specifically for 2V Cleveland cylinder heads
• Will fit FMX automatic
• Will not fit C6 automatic
• Will not fit column-change manual or automatic applications
• Not designed for 4V Cleveland cylinder heads or non-Cleveland engine combinations
• Due to the tight engine bay design of early Falcons, clearance near the right-hand-side gearbox crossmember may be minimal in some applications
• Engine mount condition and exhaust alignment can affect final header clearance
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during trial fitting and installation
• Modified engines, transmissions, steering systems, engine mounts or chassis components may affect fitment
• Please check availability and current lead time before ordering.

What’s Included

• 1 x Pacemaker PH4070L left-hand header assembly
• 1 x Pacemaker PH4070R right-hand header assembly
• Tapered outlet reducing cones with gaskets
• 16 x header bolts

Recommended With

• DSF027 exhaust manifold/header gasket set
• Matching exhaust system, intermediate pipes and joiners where required
• PHC40 ceramic coating where additional heat management is desired

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, a 302 Cleveland V8 (approximately 4.95L) theoretically draws in approximately 9,900 litres of intake air per minute and can expel around 29,700 litres of hot exhaust gas per minute at approximately 600°C.

At the same engine speed, a 351 Cleveland V8 (approximately 5.75L) theoretically draws in approximately 11,500 litres of intake air per minute and can expel around 34,500 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Apply penetrating lubricant to manifold bolts and exhaust fasteners before removal
• Remove all traces of the old manifold gaskets and inspect the cylinder-head sealing surfaces
• Fit new DSF027 exhaust manifold/header gaskets
• Trial-fit both header assemblies before fully tightening the mounting hardware
• Protect the Pacemaker Blue or optional ceramic-coated surfaces during trial fitting and installation
• Pay particular attention to clearance around the right-hand-side gearbox crossmember
• Check clearance around the steering, starter motor, engine mounts, transmission, wiring and surrounding components
• Check the condition of the engine and transmission mounts, as worn mounts can alter drivetrain position and header clearance
• Check all exhaust connections for leaks after installation
• Inspect and re-tighten the header mounting hardware after the initial heat cycles

Warranty & Compliance

Pacemaker PH4070 headers are backed by Pacemaker's 2-year manufacturer warranty, subject to the manufacturer's current warranty terms and conditions.

Vehicle modifications and exhaust requirements vary between applications and jurisdictions. The completed installation must comply with the roadworthiness, noise and emissions requirements applicable to the vehicle in your state or territory.

FAQ

Which vehicles do PH4070 headers suit?
Pacemaker PH4070 headers are designed for selected Ford Falcon XR, XT, XW and XY models fitted with 302 or 351 Cleveland V8 engines using 2V cylinder heads, subject to the transmission and shifter restrictions listed above.

Do PH4070 headers suit both 302 and 351 Cleveland engines?
Yes. PH4070 is designed for applicable 302 and 351 Cleveland V8 combinations fitted with 2V cylinder heads.

Will PH4070 fit an FMX automatic?
Yes. PH4070 is listed to fit applicable FMX automatic applications.

Will PH4070 fit a C6 automatic?
No. Pacemaker PH4070 headers are not designed to fit C6 automatic applications.

Will PH4070 fit a column-change vehicle?
No. PH4070 is not designed for column-change manual or automatic applications.

Do PH4070 headers suit 4V Cleveland heads?
No. PH4070 is designed specifically for 2V Cleveland cylinder heads and is not intended for 4V Cleveland heads.

What size are the PH4070 header pipes?
PH4070 uses 45mm primary pipes with 76mm flanged outlets.

Which header gasket is recommended?
The recommended exhaust manifold/header gasket set is DSF027.

What is included with PH4070?
The set includes PH4070L and PH4070R header assemblies, tapered outlet reducing cones with gaskets and 16 header bolts.

Can PH4070 headers be ceramic coated?
Yes. PHC40 ceramic coating is available as an optional upgrade for improved heat management and surface durability. Please contact us for current pricing and lead time.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
