Exhaust System Flange Gasket 3 Bolt 051mm ID 078 x 123mm Bolt Distance Suits Headers to Base Pipe.
Free Shipping! (Australia only)
$7.95
Tax included

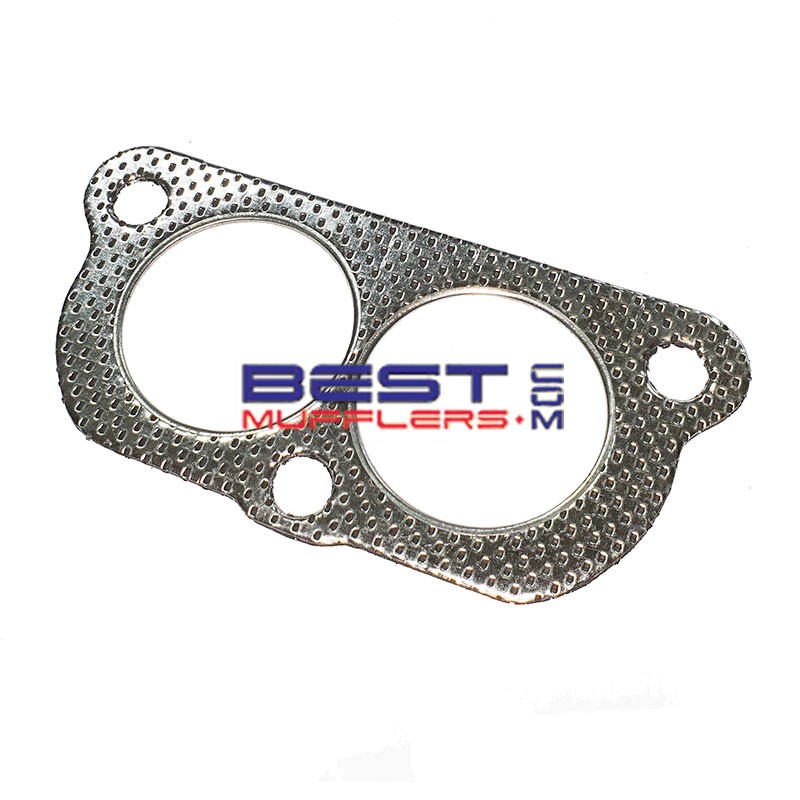

Exhaust System Flange Gasket GEN001 / GMG705 – Suits Genie, Hurricane & Pacemaker Headers
GEN001 / EFR018 exhaust flange gasket designed for Genie, Hurricane, and Pacemaker headers between headers and base pipe assemblies. Precision-cut gasket with a 123mm × 78mm bolt pattern and 50mm centre holes, featuring a fire ring for superior sealing under heat and pressure.
Exhaust System Flange Gasket GEN001 / GMG705 – Suits Genie, Hurricane & Pacemaker Headers
The GEN001 / GMG705 flange gasket is engineered for a secure, leak-free seal between header flanges and base pipes on performance exhaust headers. Ideal for use with Genie, Hurricane, and Pacemaker brand headers, this gasket delivers long-lasting reliability under high-temperature exhaust conditions.
Key Specifications
- Part Number: GEN001 / GMG705
- Bolt Hole Centres: 123mm × 78mm
- Centre Hole Size: 50mm
- Thickness: 1.8mm
- Fire Ring: Yes
- Compatible With: Genie, Hurricane, and Pacemaker header flanges
- Material: High-temperature gasket composite with steel fire ring
Notes
- Ensure both mating surfaces are clean before installation.
- Tighten bolts evenly in a criss-cross pattern for best sealing performance.
- Australian supplied, OE-quality part.
Recommended With
- Header Flange Plates – see Flange Plates
- Header Studs & Nuts – see TYS001
- Header Gasket Set – see DSF063
