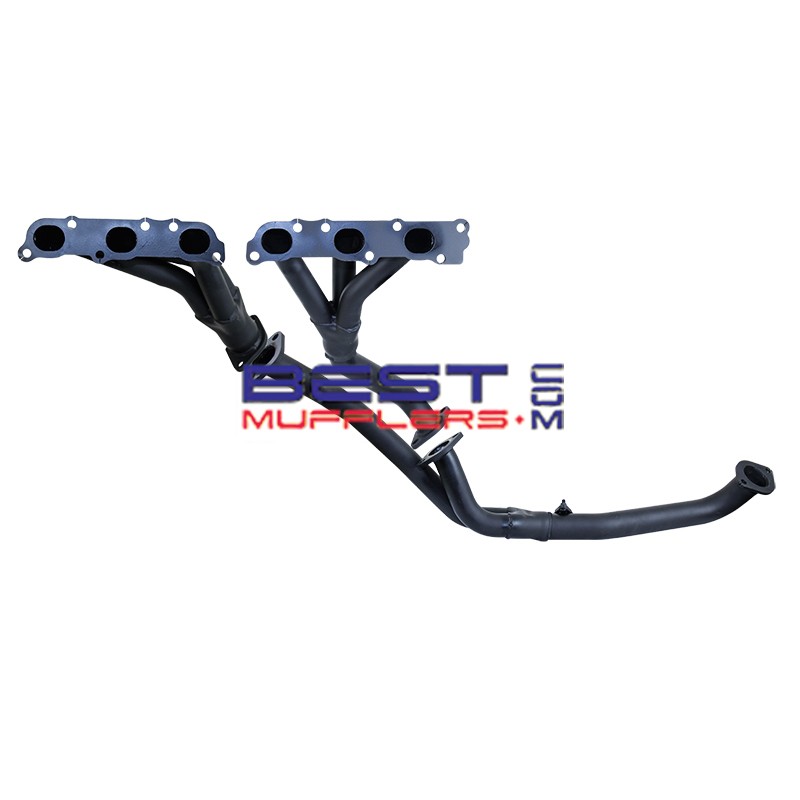

Toyota LandCruiser FZJ80 1992-1998 4.5L 1FZ-FE Wildcat Exhaust Headers WILD043

Wildcat WILD043 headers (extractors) are designed for the Toyota LandCruiser FZJ80 80 Series from late 1992 to early 1998 fitted with the 4.5L 1FZ-FE DOHC 24-valve naturally aspirated petrol engine.

Featuring an interference design for street performance applications, WILD043 provides a performance replacement for the original exhaust manifold and is designed to improve exhaust flow, torque, throttle response and engine performance.

The supplied WILD043 specifications list 44mm (1¾") primary pipes, 51mm (2") secondary pipes and a 63mm (2½") outlet.

Australian Made.

Please check availability and current lead time before ordering.

Key Features

• Suits Toyota LandCruiser FZJ80 80 Series
• Approximately November 1992-February 1998 Australian application
• Suits 4.5L 1FZ-FE petrol engine
• 4477cc inline six-cylinder
• DOHC 24-valve engine
• Naturally aspirated application
• Interference design for street performance applications
• 44mm (1¾") primary pipes
• 51mm (2") secondary pipes
• 63mm (2½") outlet
• Direct-fit application
• Australian Made

Construction

Wildcat WILD043 headers are Australian Made and designed specifically around the Toyota 4.5L 1FZ-FE six-cylinder petrol engine installation used in the FZJ80 LandCruiser.

The header configuration uses approximately 44mm (1¾") primary pipes feeding into 51mm (2") secondary pipes with a 63mm (2½") outlet.

Additional Options

A replacement exhaust manifold/header gasket is available separately – see DSF084.

Please contact Best Mufflers if you require advice on gaskets, exhaust components or installation parts for your FZJ80 LandCruiser.

Vehicle Fitment

• Make: Toyota
• Model: LandCruiser 80 Series
• Chassis: FZJ80 / FZJ80R
• Australian Application: Approximately 11/1992-02/1998
• Engine: 1FZ-FE
• Capacity: 4.5L / 4477cc
• Configuration: DOHC 24-valve inline six-cylinder petrol
• Aspiration: Naturally aspirated
• Drive: 4WD

IMPORTANT: WILD043 is for the 4.5L 1FZ-FE petrol engine. The earlier 1990-1992 80 Series petrol models used the 4.0L 3F/3F-E engine and are not covered by this application.

Header Specifications

• Design: Interference design for street performance applications
• Primary Pipe: 44mm (1¾")
• Secondary Pipe: 51mm (2")
• Outlet: 63mm (2½")
• Fitment: Direct fit
• Replacement Gasket: DSF084

Fitment Notes

1FZ-FE Engine Only: WILD043 is designed for the 4.5L 1FZ-FE DOHC 24-valve petrol engine.

Correct Year Range: Although the Toyota 80 Series was introduced in Australia in 1990, the 4.5L 1FZ-FE was not introduced until late 1992. Earlier petrol 80 Series vehicles used the 4.0L 3F/3F-E engine.

Direct Fit: WILD043 is listed as a direct-fit application. However, because these vehicles are now more than 25 years old, check for previous exhaust modifications, engine conversions or non-standard components before installation.

Confirm the chassis and engine code before ordering, particularly on imported or modified vehicles.

What's Included

• 1 x Wildcat WILD043 header/extractor assembly

Gaskets, bolts and other installation hardware should not be assumed to be included unless specifically confirmed before ordering.

Recommended With

DSF084 – replacement exhaust manifold/header gasket.

Before installation, inspect the existing exhaust system, manifold studs, engine mounts and associated mounting hardware.

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 4.5L 1FZ-FE six-cylinder engine theoretically draws approximately 9,000 litres of intake air per minute at 100% volumetric efficiency and expels around 27,000 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Before installation, confirm that the vehicle is an FZJ80 LandCruiser fitted with the 4.5L 1FZ-FE engine.

Lubricate threaded fasteners with WD-40 or a similar penetrating lubricant before removal to assist with easier removal and installation.

Professional installation is recommended. After installation and several heat cycles, inspect the exhaust system for leaks and recheck accessible fasteners where appropriate.

Warranty & Compliance

Any catalytic converter, oxygen sensor and other emissions-control equipment required for the particular vehicle must remain correctly installed and operational.

Installation must comply with applicable Australian state or territory requirements relating to emissions, exhaust noise and vehicle modifications.

FAQ

What Toyota LandCruiser does WILD043 fit?
WILD043 is designed for the Toyota LandCruiser FZJ80 80 Series fitted with the 4.5L 1FZ-FE petrol engine.

What is the correct year range?
For the Australian 4.5L 1FZ-FE FZJ80 application, approximately November 1992 to February 1998 is the appropriate range. The 80 Series itself began in 1990, but the 4.5L 1FZ-FE was introduced later.

Does WILD043 fit a 1990 or 1991 LandCruiser 80 Series?
Not if the vehicle still has its original petrol engine. Early Australian 80 Series petrol models used the 4.0L 3F/3F-E. WILD043 is specifically for the later 4.5L 1FZ-FE application.

What engine is the 1FZ-FE?
The Toyota 1FZ-FE is a 4477cc naturally aspirated inline six-cylinder petrol engine with DOHC and 24 valves.

What size are WILD043 headers?
The supplied specifications list 44mm (1¾") primary pipes, 51mm (2") secondary pipes and a 63mm (2½") outlet.

Are WILD043 headers direct fit?
Yes. The supplied Wildcat application information lists WILD043 as a direct-fit application. Existing exhaust modifications should still be checked before installation.

What gasket suits WILD043?
The supplied application information lists DSF084 as the replacement exhaust manifold/header gasket.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
