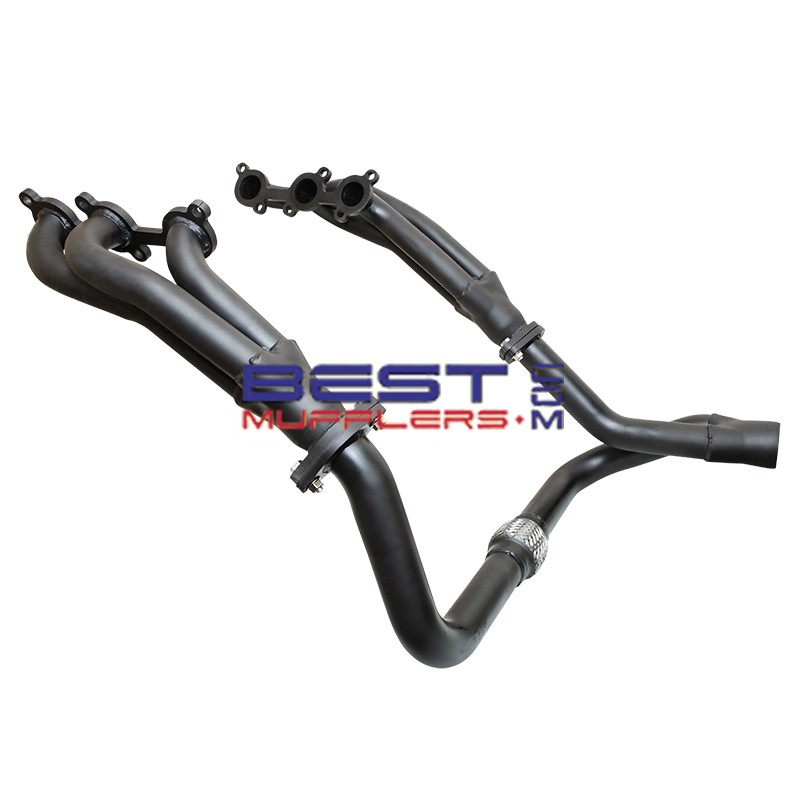

Toyota Prado 90 Series 3.4L 5VZ-FE Automatic Headers – Wildcat WILD290A

Wildcat WILD290A exhaust headers (extractors) are designed for the Toyota LandCruiser Prado 90 Series fitted with the 3.4L V6 5VZ-FE petrol engine from 1996 to 2002 and a automatic gearbox.

Featuring an interference-style extractor design, WILD290A replaces the restrictive factory exhaust manifolds with larger, smoother-flowing pipework designed to improve exhaust gas flow and scavenging. Improved exhaust flow can help increase low and mid-range torque, throttle response and overall engine performance, making these headers well suited to street, touring, towing and 4WD applications.

Key Features

• Designed for Toyota LandCruiser Prado 90 Series
• Suits the 3.4L V6 5VZ-FE petrol engine
• Automatic gearbox models only
• Interference-style design for street and 4WD performance
• 1.58" primary pipes
• 2.00" secondary pipes
• 2.25" outlets
• Designed to improve exhaust flow, torque, throttle response and engine performance

Construction

• Australian-made Wildcat performance headers
• Quality mild steel construction
• Strong welded construction for durability
• Heat-resistant painted finish rated to approximately 600°C
• Precision mounting flanges for reliable sealing

Additional Options

• RBG276: Replacement exhaust manifold/header gaskets available separately

Vehicle Fitment

• Make: Toyota
• Model: LandCruiser Prado
• Series: 90 Series
• Engine: 5VZ-FE V6 petrol
• Capacity: 3.4L / 3378cc
• Year: 1996–2002
• Transmission: Automatic gearbox only

Fitment Notes

• IMPORTANT: WILD290A suits automatic gearbox models only
• Will not suit manual transmission models
• Not a direct-fit installation – modification/fabrication is required to connect the headers to the existing exhaust system
• Professional exhaust installation is recommended
• Replacement manifold/header gaskets – see RBG276
• Please confirm your Prado is fitted with the 3.4L 5VZ-FE V6 and manual gearbox before ordering

What’s Included

• Wildcat WILD290A header / extractor assemblies

Recommended With

• RBG276 exhaust manifold/header gaskets
• Replacement exhaust flange gaskets where required
• Replacement manifold studs and nuts where existing hardware is worn or corroded
• Professional exhaust fabrication for connection to the existing exhaust system
• Free-flowing exhaust system for further reduction in exhaust restriction

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 3.4L 5VZ-FE V6 draws in approximately 6,756 litres of intake air per minute and expels around 20,300 litres of hot exhaust gas per minute at approximately 600°C. A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Apply penetrating lubricant such as WD-40 or similar to the manifold studs, nuts and exhaust fasteners before removal. Trial-fit both headers and exhaust connections before cutting, welding or fully tightening the system. Protect the painted surfaces during installation to minimise scratching or damage.

Warranty & Compliance

Wildcat headers are covered by the manufacturer's warranty subject to standard warranty terms and conditions.

Exhaust and emissions requirements vary between Australian states and territories. Installation must retain the catalytic converters, oxygen sensors and any other emissions-control equipment required for the vehicle and comply with the regulations applicable in your state or territory.

FAQ

What Toyota Prado does WILD290A suit?
WILD290A is designed for the Toyota LandCruiser Prado 90 Series fitted with the 3.4L V6 5VZ-FE petrol engine from 1996 to 2002 and a automatic gearbox.

Will WILD290A fit an Manual Prado?
No. WILD290A is designed for automatic gearbox models only.

Are WILD290A headers a direct fit?
No. Exhaust modification/fabrication is required to connect the headers to the existing exhaust system. Professional exhaust installation is recommended.

What size are the header pipes?
WILD290A uses 1.58" primary pipes, 2.00" secondary pipes and 2.25" outlets.

What manifold/header gaskets are required?
The recommended replacement gaskets are RBG276, available separately.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.
