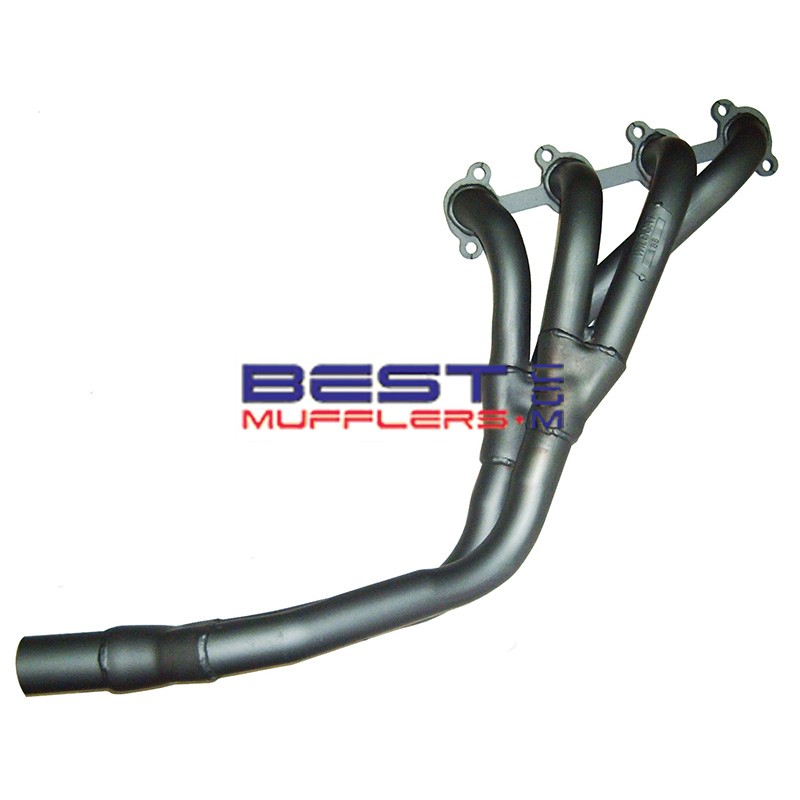

Toyota HiAce RZH103-RZH125 1989-1998 2.4L 2RZ Wildcat Exhaust Headers WILD185

Wildcat WILD185 exhaust headers (extractors) are designed for selected Toyota HiAce RZH103–RZH125 models from 08/1989–07/1998 fitted with the 2.4L 2RZ petrol engine.

WILD185 features a Tri-Y header design with mandrel-bent pipework, 38mm (1.50") primary pipes, 45mm (1.75") secondary pipes and a 51mm (2.00") slip outlet. The Tri-Y configuration is designed to maintain exhaust gas velocity and improve scavenging, making it particularly well suited to a HiAce where usable low- and mid-range torque is important.

The Wildcat application also lists WILD185 as suitable for the later 2RZ-E engine from 08/1998–07/2004; however, an oxygen-sensor mounting nut/bung must be welded into the header when fitting it to the 2RZ-E application.

Please check availability and current lead time before ordering.

Key Features

• Designed for selected Toyota HiAce RZH103–RZH125 applications
• Main application: 08/1989–07/1998 2.4L 2RZ petrol engine
• Can also suit selected 2RZ-E applications from 08/1998–07/2004 with oxygen-sensor modification
• Tri-Y header design
• Mandrel-bent pipework
• 38mm (1.50") primary pipes
• 45mm (1.75") secondary pipes
• 51mm (2.00") slip outlet
• Suits manual and automatic transmissions
• Suits vehicles equipped with air conditioning
• Suits vehicles equipped with power steering
• Designed to improve exhaust gas flow and scavenging
• Helps improve torque, throttle response and engine performance
• Australian-made Wildcat performance headers

Construction

• Quality mild steel construction
• Mandrel-bent pipework for smooth exhaust gas flow
• Strong welded construction for durability
• Heat-resistant painted finish rated to approximately 600°C
• Australian manufactured by Wildcat

Additional Options

• RBG185 exhaust manifold/header gasket
• RHF185 header plate where required
• Oxygen-sensor mounting nut/bung for 08/1998–07/2004 2RZ-E applications
• Replacement manifold studs and nuts where existing hardware is worn or corroded
• Performance exhaust system where further exhaust flow improvement is required

Vehicle Fitment

• Make: Toyota
• Model: HiAce
• Chassis: RZH103–RZH125
• Main Year Range: 08/1989–07/1998
• Engine Capacity: 2.4L
• Engine: 2RZ petrol
• Transmission: Manual / Automatic
• Air Conditioning: Suitable
• Power Steering: Suitable

Fitment Notes

• Primary application is selected Toyota HiAce RZH103–RZH125 models from 08/1989–07/1998 fitted with the 2.4L 2RZ petrol engine
• Wildcat also lists WILD185 as suitable for the 2RZ-E engine from 08/1998–07/2004
• 2RZ-E applications require an oxygen-sensor mounting nut/bung to be welded into the header
• Suits both manual and automatic transmissions
• Suits vehicles with air conditioning and power steering
• Approximate listed fitting time is 2 hours; actual installation time will depend on vehicle condition and any previous modifications
• Engine conversions, replacement engines or modified exhaust systems may affect fitment
• Please check availability and current lead time before ordering.

What’s Included

• 1 x Set Wildcat WILD185 exhaust headers / extractors
• Outlet components as supplied

Recommended With

• RBG185 exhaust manifold/header gasket
• Replacement manifold studs and nuts where existing hardware is worn or corroded
• Quality performance exhaust system where further exhaust flow improvement is required

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, a 2.4L petrol engine theoretically draws in approximately 4,800 litres of intake air per minute and can expel around 14,400 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Apply penetrating lubricant such as WD-40 or similar to the manifold studs, nuts and exhaust fasteners before removal
• Remove all traces of the old manifold gasket before installing the headers
• Inspect the cylinder-head sealing surface, manifold studs and threads before installation
• Fit a new RBG185 exhaust manifold/header gasket
• Trial-fit the headers before fully tightening the mounting hardware
• Check clearance around the engine mounts, steering, transmission and surrounding components
• For 2RZ-E applications from 08/1998–07/2004, correctly position and weld an oxygen-sensor mounting nut/bung into the header before final installation
• Ensure the oxygen sensor is positioned with adequate clearance from surrounding components and wiring
• Protect the painted header surfaces during trial fitting and installation
• Check all exhaust connections for leaks after installation
• Inspect and re-tighten the header mounting hardware after the initial heat cycles

Warranty & Compliance

Wildcat headers are covered by the applicable 2-year manufacturer's warranty subject to standard warranty terms and conditions.

Installation must retain the catalytic converter, oxygen sensor and any other emissions-control equipment required for the vehicle. Exhaust and emissions requirements vary between Australian states and territories, and the completed installation must comply with the regulations applicable in your state or territory.

FAQ

Which Toyota HiAce models does WILD185 suit?
WILD185 is primarily designed for selected Toyota HiAce RZH103–RZH125 models from 08/1989–07/1998 fitted with the 2.4L 2RZ petrol engine.

Will WILD185 fit the later 2RZ-E engine?
Yes. Wildcat lists WILD185 as suitable for the 2RZ-E engine from 08/1998–07/2004, but an oxygen-sensor mounting nut/bung must be welded into the header for this application.

Does WILD185 suit manual and automatic HiAce models?
Yes. The Wildcat application lists WILD185 for both manual and automatic transmissions.

Does WILD185 suit air conditioning and power steering?
Yes. The Wildcat application lists WILD185 as suitable for vehicles equipped with air conditioning and power steering.

What size are the WILD185 header pipes?
WILD185 uses 38mm (1.50") primary pipes, 45mm (1.75") secondary pipes and a 51mm (2.00") slip outlet.

Are WILD185 headers mandrel bent?
Yes. WILD185 uses mandrel-bent pipework.

Which exhaust gasket is required?
The recommended exhaust manifold/header gasket is RBG185.

How long does installation take?
Wildcat lists an approximate fitting time of 2 hours. Actual fitting time may vary depending on the condition and configuration of the vehicle.

What finish is used on WILD185?
The headers have a heat-resistant painted finish rated to approximately 600°C.

Are WILD185 headers Australian made?
Yes. Wildcat WILD185 headers are manufactured in Australia.
