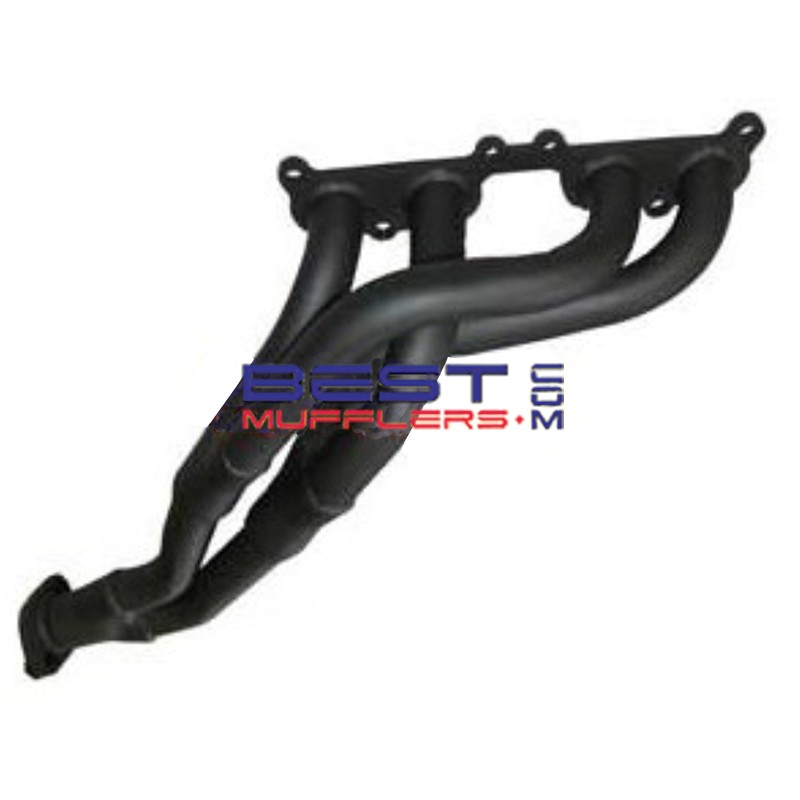

Toyota Hilux RZN169 RZN174 1997-2002 2.7L 3RZ-FE 4WD Wildcat Exhaust Headers WILD237

Wildcat WILD237 headers (extractors) are designed for Toyota Hilux RZN169 and RZN174 4WD models fitted with the 2.7L 3RZ-FE DOHC 16-valve petrol engine.

WILD237 features an interference design developed for street performance applications, using 41mm primary pipes, 51mm secondary pipes and a 63mm outlet.

4WD MODELS ONLY – adaptation to the existing exhaust system is required.

Please check availability and current lead time before ordering.

Key Features

• Designed for Toyota Hilux RZN169 and RZN174 4WD models
• Suits the 2.7L 3RZ-FE DOHC 16-valve petrol engine
• Interference design for street performance applications
• 41mm (1⅝") primary pipes
• 51mm (2") secondary pipes
• 63mm (2½") outlet
• Australian Made

Construction

Wildcat WILD237 headers use 41mm primary pipes feeding into 51mm secondary pipes with a large 63mm outlet.

Wildcat headers are manufactured in Australia by the same Australian manufacturer responsible for Genie headers.

Additional Options

Please contact Best Mufflers for current availability and advice regarding compatible exhaust components for your Toyota Hilux.

Vehicle Fitment

• Make: Toyota
• Model: Hilux
• Series: RZN169 / RZN174
• Year Range: Approximately 11/1997-10/2002 depending on chassis and body configuration
• Engine: 2.7L / 2694cc 3RZ-FE
• Engine Type: DOHC 16-valve EFI petrol
• Drive: 4WD only

Important: RZN149 and RZN154 are 2WD/RWD Hilux chassis and should not be included as 4WD applications. The Australian 3RZ-FE 4WD chassis applicable to this listing are RZN169 and RZN174.

Header Specifications

• Part Number: WILD237
• Design: Interference design for street performance applications
• Primary Pipes: 1⅝" (approximately 41mm)
• Secondary Pipes: 2" (approximately 51mm)
• Outlet: 2½" (approximately 63mm)
• Exhaust Connection: Adapt to existing exhaust system
• Manufacture: Australian Made

Fitment Notes

WILD237 is the 4WD application. Confirm the vehicle is an RZN169 or RZN174 Hilux fitted with the 2.7L 3RZ-FE petrol engine before ordering.

Adaptation to the existing exhaust system is required. This should not be described as a direct-fit connection to the factory exhaust.

Because these vehicles may have undergone suspension, engine or exhaust modifications, check exhaust routing and surrounding clearances during installation.

What's Included

Wildcat WILD237 header assembly. Gaskets and other installation components should not be assumed to be included unless specifically shown or stated with the product.

Recommended With

DSF803 – exhaust manifold/header gasket for the Toyota 2.7L 3RZ-FE application.

Why Good Headers & Exhaust Systems Matter

The 2.7L 3RZ-FE four-cylinder engine theoretically draws approximately 5,400 litres of intake air per minute at 4,000 rpm at 100% volumetric efficiency. Once combustion has taken place, the hot exhaust gases occupy substantially more volume as they travel through the exhaust system.

Using an illustrative exhaust temperature of approximately 600°C, this represents around 16,200 litres of exhaust gas per minute. A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Professional installation is recommended because the headers must be adapted to the existing exhaust system. Check exhaust alignment and clearance around the chassis, drivetrain, steering and suspension before completing the installation.

Lubricate threaded fasteners with WD-40 or a similar penetrating lubricant before removal to assist with easier removal and installation. After installation and several heat cycles, inspect the system for exhaust leaks and recheck accessible fasteners where appropriate.

Warranty & Compliance

Installation and use must comply with applicable Australian state or territory requirements relating to emissions equipment, catalytic converters, exhaust noise and vehicle modifications.

FAQ

Is this product currently available?
Availability and lead times can vary. Please check availability and current lead time before ordering.

Does WILD237 suit the Toyota Hilux RZN169?
Yes. This application is for the RZN169 4WD Hilux fitted with the 2.7L 3RZ-FE petrol engine.

Does WILD237 suit the RZN174?
The RZN174 is also a 4WD 2.7L 3RZ-FE Hilux chassis. Please confirm the vehicle details before ordering.

Does WILD237 suit RZN149 or RZN154?
No for this 4WD application. RZN149 and RZN154 are 2WD/RWD chassis. The Wildcat 2WD 3RZ-FE application should be selected instead.

Does WILD237 bolt directly to the original exhaust?
The supplied application information specifies “adapt to exhaust”, so modification or fabrication of the exhaust connection is required.

What gasket suits WILD237?
DSF803 is the exhaust manifold/header gasket for the Toyota 2.7L 3RZ-FE application.
