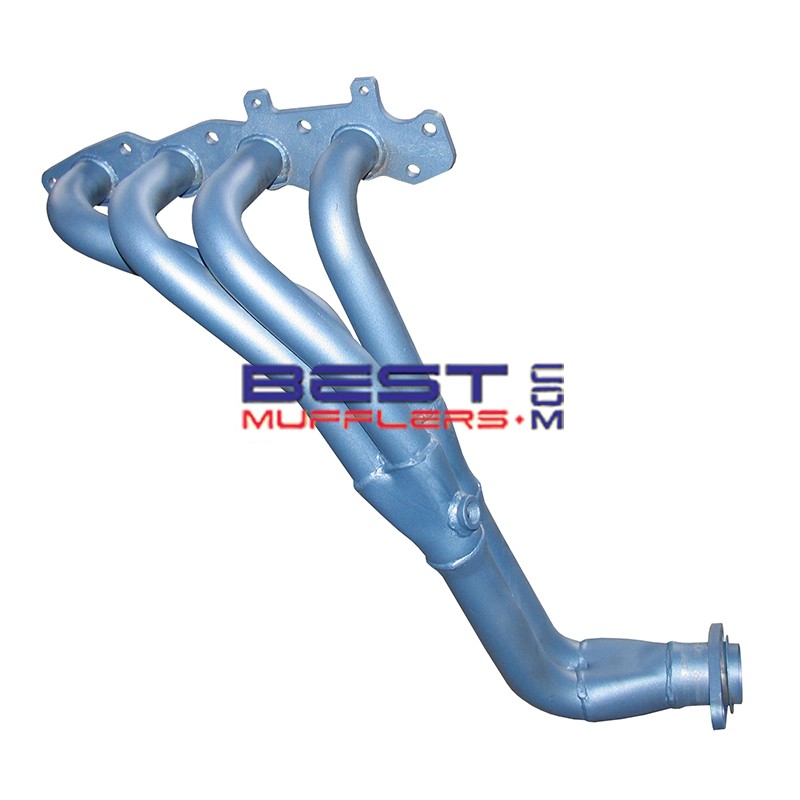

Suzuki Vitara SE416 1.6L G16B Hurricane Exhaust Headers HU428STM

Hurricane HU428STM exhaust headers (extractors) are Australian-made performance headers designed for selected Suzuki Vitara SE416 models fitted with the 1.6L G16B SOHC 16-valve petrol engine.

The Australian-market G16B is a 1590cc multi-point fuel-injected four-cylinder engine. It was used in 4-door Vitara models from the early 1990s and became available in Australian 2-door models from 1994.

HU428STM uses 38mm primary pipes, 45mm secondary pipes and a 51mm flanged outlet. The header design is intended to reduce exhaust restriction and improve scavenging compared with the original exhaust manifold, helping improve exhaust flow, torque, throttle response and engine performance.

Please check availability and current lead time before ordering.

Key Features

• Australian Made Hurricane performance headers
• Designed for selected Suzuki Vitara SE416 1.6L G16B applications
• 38mm primary pipes
• 45mm secondary pipes
• 51mm flanged outlet
• Mandrel-bent pipework
• Oxygen sensor provision
• Designed to improve exhaust flow and scavenging
• Suitable for street, restoration and off-road applications

Construction

• Steel header construction
• Mandrel-bent pipework
• 38mm primary / 45mm secondary / 51mm outlet
• Heat-resistant painted finish rated to approximately 800°C
• Australian Made

Additional Options

• Ceramic Coating: Available as an additional option – contact us for current pricing and lead time
• HG428: Replacement header/manifold gasket available separately
• MAG19: Catalytic converter/exhaust gasket available separately

Vehicle Fitment

• Make: Suzuki
• Model: Vitara
• Series: SE416
• Engine: G16B
• Capacity: 1590cc / 1.6L
• Configuration: SOHC 16-valve inline four-cylinder
• Fuel System: Multi-point fuel injection
• Fuel Type: Petrol
• Drive: 4WD
• Steering: Australian RHD applications

Australian G16B production dates vary according to body style. Australian vehicle data shows the 4-door SE416 G16B from approximately 08/1991-12/1998, while 2-door G16B models are listed from approximately 12/1994-04/2000.

Header Specifications

• Brand: Hurricane Headers
• Part Number: HU428STM
• Primary Pipe Size: 38mm
• Secondary Pipe Size: 45mm
• Outlet Size: 51mm
• Outlet: Flanged
• Oxygen Sensor Provision: Yes
• Manufacture: Australian Made

Fitment Notes

• Designed for selected Suzuki Vitara SE416 models fitted with the G16B 1.6L 16-valve engine
• Do not confuse the G16B 16-valve engine with the earlier G16A 8-valve engine
• Suitable for Australian right-hand-drive applications as specified
• Left-hand-drive fitment is not confirmed – contact us before ordering for an LHD vehicle
• Oxygen sensor provision included
• Catalytic converter connection is designed for the applicable original exhaust configuration
• Protect the painted header during trial fitting to prevent unnecessary finish damage
• Check steering, starter motor, engine mounts and surrounding components for adequate clearance during installation
• Vehicles with engine conversions or modified exhaust systems may require additional fitment work

What’s Included

• 1 x Hurricane HU428STM header assembly

Recommended With

• HG428 – exhaust manifold/header gasket
• MAG19 – catalytic converter/exhaust gasket
• Ceramic coating option where additional heat management and finish durability are desired

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 1.6L G16B four-cylinder theoretically draws approximately 3,200 litres of intake air per minute at 100% volumetric efficiency and may expel around 9,600 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Before removing the original exhaust manifold, apply penetrating lubricant to exhaust studs, nuts and threaded connections. Inspect the manifold studs and mounting hardware and replace damaged or heavily corroded components where required.

During trial fitting, protect the painted header surface and check clearance around the steering system, starter motor, engine mounts and surrounding components.

After installation, start the engine and inspect the manifold flange, oxygen sensor fitting and downstream exhaust connections for leaks.

Warranty & Compliance

Hurricane HU428STM headers are covered by the manufacturer's applicable warranty conditions.

As this application is fitted to vehicles manufactured after 1986, installation must maintain applicable emissions equipment and comply with the relevant roadworthiness and emissions requirements in your Australian state or territory.

FAQ

What Suzuki Vitara engine does HU428STM fit?
HU428STM is designed for selected Suzuki Vitara SE416 models fitted with the 1.6L G16B SOHC 16-valve petrol engine.

Does HU428STM fit the G16A 8-valve engine?
This listing is specifically for the G16B 16-valve engine. Do not order for a G16A 8-valve Vitara without confirming the correct header application.

What size are the header pipes?
HU428STM uses 38mm primary pipes, 45mm secondary pipes and a 51mm flanged outlet.

Does HU428STM have an oxygen sensor fitting?
Yes. An oxygen sensor provision is included for the applicable G16B application.

Will HU428STM fit a left-hand-drive Suzuki Sidekick, Geo Tracker or Chevrolet Tracker?
Left-hand-drive fitment is not confirmed. Although international models may use the G16B engine, steering and chassis clearance can differ from Australian right-hand-drive Vitara models. Please contact us before ordering for an LHD vehicle.

Is HU428STM Australian made?
Yes. Hurricane HU428STM headers are Australian made.

Is ceramic coating available?
Yes. Ceramic coating is available as an additional option. Please contact us for current pricing and lead time.

Which header gasket is recommended?
HG428 is the replacement header/manifold gasket listed for this application.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
