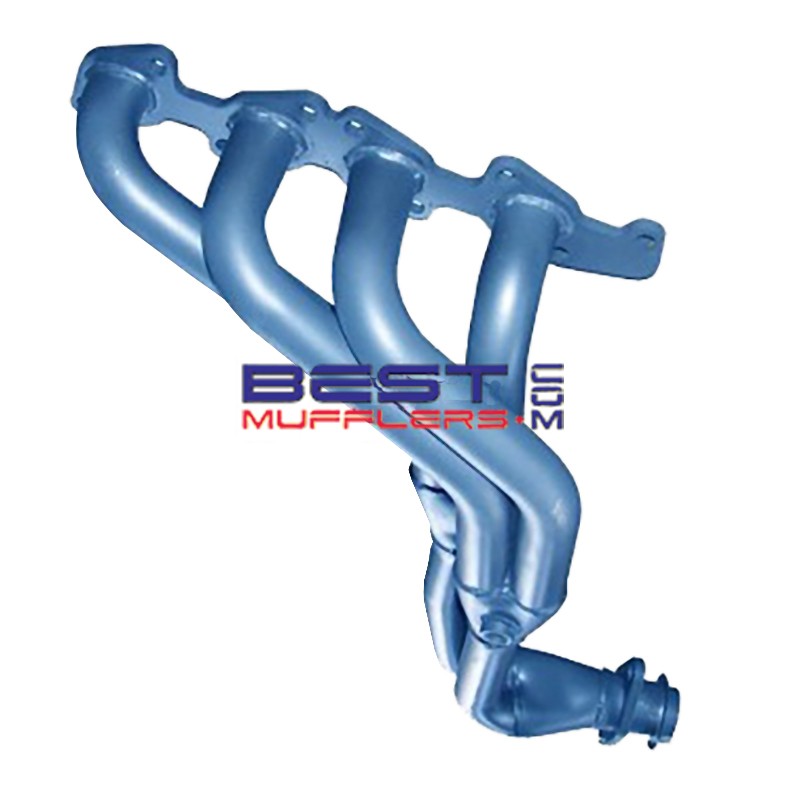

Suzuki Vitara and Grand Vitara 2.0L J20A Hurricane Headers HU333STM

Hurricane HU333STM headers (extractors) suit Suzuki Vitara and Grand Vitara 2.0L J20A models from 1998–2005. Featuring mandrel-bent 42mm primary pipes, 45mm secondary pipes and a 51mm flanged outlet, these headers are designed to improve exhaust flow, torque, throttle response and engine performance.

Please check availability and current lead time before ordering.

Key Features

• Mandrel-bent 42mm primary pipes
• 45mm secondary pipes
• 51mm flanged outlet
• Direct-fit design for compatible vehicle applications
• Oxygen sensor fitting included
• Thick machined flanges for reliable sealing
• Smooth merge collectors to support exhaust scavenging
• Designed to connect to the existing catalytic converter

Construction

• Steel tubing with welded construction
• Mandrel-bent header pipes
• Heat-resistant paint rated to 800°C

Additional Options

• Ceramic coating: Available as an option – contact us for pricing and details
• HG333: Header gasket, available separately
• FDG018W: Catalytic converter gasket, available separately

Vehicle Fitment

• Make: Suzuki
• Models: Vitara and Grand Vitara
• Years: 1998–2005
• Engine: 2.0L J20A 4-cylinder
• Other possible applications: Suzuki Escudo and Mazda Proceed Levante – fitment confirmation required

Header Specifications

• Part number: HU333STM
• Primary pipes: 42mm
• Secondary pipes: 45mm
• Outlet: 51mm flanged
• Pipe bending: Mandrel bent
• Oxygen sensor provision: Yes
• Finish: Heat-resistant paint rated to 800°C

Fitment Notes

• Designed for compatible Suzuki Vitara and Grand Vitara 2.0L J20A models from 1998–2005
• Left-hand-drive fitment is not confirmed on narrow body – please contact us before ordering
• Direct connection to the existing catalytic converter on compatible applications
• Check engine mounts, steering clearance and any aftermarket modifications before installation
• Suzuki Escudo and Mazda Proceed Levante applications require fitment confirmation
• Made to order – approximately 2–3 weeks
• Please check availability and current lead time before ordering.

What's Included

• 1 × Hurricane HU333STM header assembly

Recommended With

• HG333: Header gasket
• FDG018W: Catalytic converter gasket

Why Good Headers and Exhaust Systems Matter

• On average, a 2.0L engine draws ~4,000 L of air per minute and expels ~12,000 L per minute at 4000rpm

Installation Tips

• Confirm engine and vehicle compatibility before installation
• Check engine mounts and steering clearance
• Protect the painted finish during trial fitting
• Use suitable new gaskets and inspect the catalytic converter connection
• Check oxygen sensor wiring and clearance from hot exhaust components
• Inspect all exhaust joints for leaks after installation

Warranty & Compliance

• Backed by a Hurricane Headers 2-year warranty, subject to standard warranty terms
• Warranty applies to the supplied part only, subject to applicable Australian Consumer Law rights
• Confirm applicable emissions, catalytic converter and roadworthiness requirements before installation

Frequently Asked Questions

Will HU333STM fit my Suzuki Vitara or Grand Vitara?
HU333STM is designed for compatible 1998–2005 Suzuki Vitara and Grand Vitara 2.0L J20A models. Confirm your vehicle details before ordering.

Will these headers fit a left-hand-drive vehicle?
Left-hand-drive compatibility has not been confirmed. Steering and engine-bay clearance may differ. Please contact us before ordering.

Will they fit a Suzuki Escudo or Mazda Proceed Levante?
They may fit certain applications sharing the appropriate engine and exhaust arrangement. Compatibility must be confirmed before ordering.

Do these headers connect to the factory catalytic converter?
They are designed to connect to the existing catalytic converter on compatible applications.

Do they have an oxygen sensor fitting?
Yes. An oxygen sensor fitting is provided.

Are gaskets included?
The recommended HG333 header gasket and FDG018W catalytic converter gasket are available separately.

Is ceramic coating available?
Yes. Ceramic coating is an optional finish. Please contact us for pricing and details.

How long before my headers are available?
HU333STM Please check availability and current lead time before ordering.

Can I collect my order?
Yes. Pickup must be pre-arranged. Please contact us to confirm availability and collection arrangements.

How much is freight?
Freight varies depending on your delivery location and stock availability. Please contact us before ordering for freight charges.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States. Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
