Wildcat Headers WILD714 – Suzuki Grand Vitara 2.5L V6 H25A 1998–2005

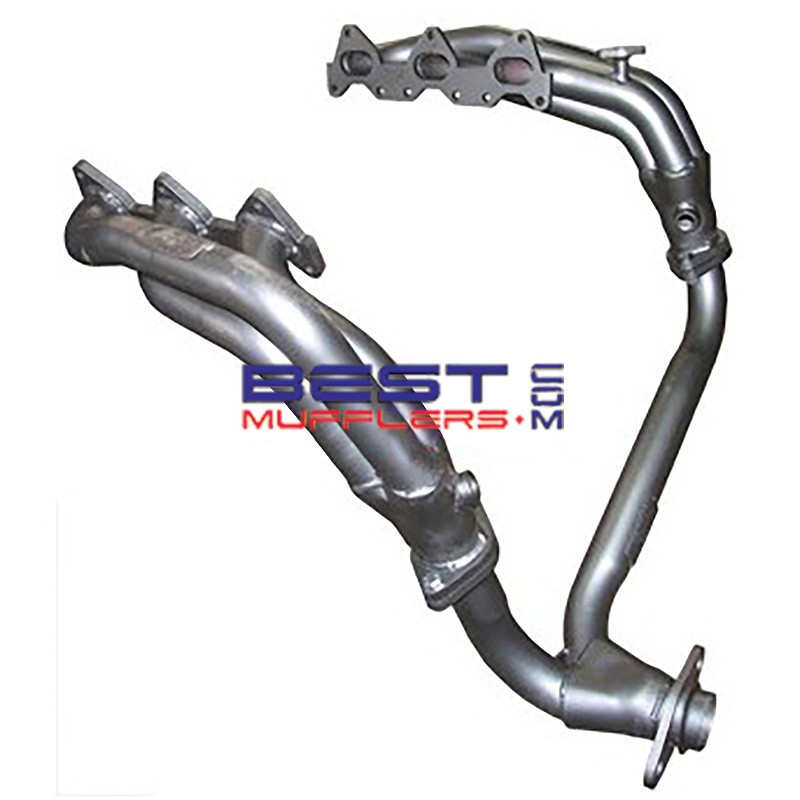

Wildcat WILD714 exhaust headers (extractors) are designed for selected Suzuki Grand Vitara models from 1998 to 2005 fitted with the 2.5L V6 H25A petrol engine.

Manufactured in Australia, WILD714 features an interference header design for street performance applications. The combination of 1.58" primary pipes, 2.00" secondary pipes and 2.25" flanged outlets is designed to improve exhaust gas flow, torque, throttle response and usable engine performance.

WILD714 is suitable for both right-hand-drive and left-hand-drive models. This makes the headers suitable for selected overseas-market Grand Vitara applications as well as Australian vehicles.

Key Features

• Please contact us before ordering to confirm current availability.
• Australian made Wildcat performance headers
• Interference design for street performance applications
• Designed for the Suzuki Grand Vitara 2.5L V6 H25A
• 1.58" primary pipes
• 2.00" secondary pipes
• 2.25" flanged outlets
• Designed to improve exhaust flow, torque, throttle response and engine performance
• Suitable for RHD and LHD models

Vehicle Fitment

• Make: Suzuki
• Model: Grand Vitara
• Year Range: 1998–2005 – selected applications
• Engine: H25A
• Capacity: 2.5L
• Configuration: V6 Petrol
• Steering: RHD / LHD

Header Specifications

• Brand: Wildcat
• Part Number: WILD714
• Header Design: Interference
• Primary Pipe Size: 1.58"
• Secondary Pipe Size: 2.00"
• Outlet Size: 2.25"
• Outlet: Flanged
• Application: Street Performance
• Manufacture: Australian Made

Construction

Wildcat WILD714 headers use formed steel pipework and an interference design developed to provide an efficient path for exhaust gases leaving the H25A V6. The primary and secondary pipe configuration is designed to improve exhaust gas flow and cylinder scavenging across the engine's normal street operating range.

2.7L H27A Applications

WILD714 can also be adapted to selected Suzuki 2.7L V6 H27A applications. This is a modified installation and should not be considered a standard direct-fit H27A application.

• Catalytic converter and exhaust modifications are required.
• The original catalytic converter arrangement cannot be retained in its standard configuration.
• Exhaust fabrication may be required to complete the installation.
• Changes to catalytic converters and oxygen-sensor operation may cause a check-engine light.
• ECU calibration may be required after modification.
• Check local emissions and registration requirements before installation.

Fitment Notes

What's Included

• Wildcat WILD714 header / extractor assemblies
• Flanged exhaust outlet connections as supplied

Recommended With

• Replacement exhaust manifold gaskets where required
• High-temperature exhaust gasket sealant
• New exhaust flange bolts and hardware where required
• Suitable catalytic converters and exhaust components where modifying an H27A application

Installation Tips

• Lubricate manifold studs, nuts and exhaust fasteners with WD-40 or a similar penetrating lubricant before removal.
• Inspect the original manifold gaskets and replace them if damaged or deteriorated.
• Clean the cylinder-head sealing surfaces before installing the headers.
• Check exhaust, oxygen-sensor and catalytic converter positioning before completing the installation.
• Check clearance around the steering, transmission, starter motor, suspension and bodywork before final tightening.
• Re-tighten the header/manifold bolts after approximately 500km to help maintain a reliable gasket seal.

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 2.5L H25A V6 processes a substantial volume of intake air and hot exhaust gas. A well-designed header and exhaust system helps reduce unnecessary restriction and improve exhaust scavenging, torque, throttle response and usable engine performance.

Warranty & Compliance

Frequently Asked Questions

Which Suzuki Grand Vitara does WILD714 suit?
WILD714 is designed primarily for selected Suzuki Grand Vitara models from 1998 to 2005 fitted with the 2.5L V6 H25A petrol engine.

What size are the Wildcat WILD714 headers?
WILD714 uses 1.58" primary pipes, 2.00" secondary pipes and 2.25" flanged outlets.

Will WILD714 fit a left-hand-drive Grand Vitara?
Yes. WILD714 will fit compatible LHD models as well as RHD applications.

Will WILD714 fit the Suzuki 2.7L H27A V6?
WILD714 can be adapted to selected 2.7L H27A applications, but it is not a standard direct-fit installation. Catalytic converter and exhaust modifications are required, and ECU calibration may also be necessary.

Can I reuse the original manifold gaskets?
The original gaskets can be reused if they are undamaged and in serviceable condition. We recommend replacing any gasket showing deterioration, damage or evidence of exhaust leakage.

Are these headers Australian made?
Yes. WILD714 Wildcat Headers are Australian made.
