Pacemaker Headers PH12700 – Toyota LandCruiser HZJ75 HZJ78 HZJ79 4.2L 1HZ Diesel

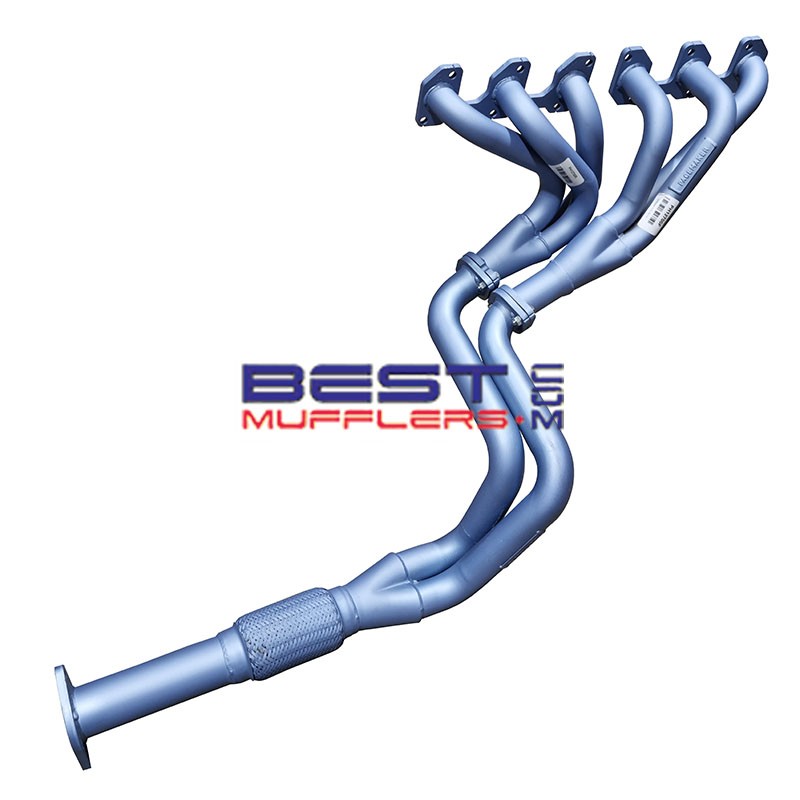

Pacemaker PH12700 exhaust headers (extractors) with PHB075 base pipe are designed for selected Toyota LandCruiser HZJ75, HZJ78 and HZJ79 models fitted with the naturally aspirated 4.2L 1HZ diesel engine without EGR.

Pacemaker's Tri-Y header design replaces the restrictive factory exhaust manifold with tuned tubular pipework designed to improve exhaust gas flow and reduce restriction. This is particularly useful on hard-working 1HZ LandCruisers used for towing, touring and off-road applications.

The PH12700 uses 41mm (1 5/8") primary pipes feeding into 51mm (2") secondary pipes and a 63mm (2 1/2") outlet. The supplied PHB075 base pipe connects the headers into the exhaust system and incorporates a flex section.

Key Features

• Pacemaker PH12700 performance exhaust headers
• Tri-Y design
• Designed for the 4.2L 1HZ naturally aspirated diesel engine
• 41mm (1 5/8") primary pipes
• 51mm (2") secondary pipes
• 63mm (2 1/2") outlet
• Mandrel-bent pipework for smooth exhaust gas flow
• Designed to improve exhaust flow and reduce exhaust restriction
• Suitable for manual and automatic transmission applications where listed
• Power steering and air conditioning compatible
• Supplied with PHB075 base pipe with flex section
• Suitable for towing, touring, off-road and everyday use

Construction

• Quality steel tubular construction
• Mandrel-bent primary and secondary pipework
• Precision manufactured exhaust flanges
• Pacemaker collector design for smooth exhaust gas transition
• Pacemaker Blue high-temperature painted finish

Vehicle Fitment

• Make: Toyota
• Model: LandCruiser
• Series: 75 / 78 / 79 Series
• Chassis: HZJ75 / HZJ78 / HZJ79 – selected applications
• Engine: 1HZ
• Capacity: 4.2L
• Fuel: Diesel
• Aspiration: Naturally Aspirated
• EGR: Non-EGR applications

Header Specifications

• Header Part Number: PH12700
• Base Pipe: PHB075
• Design: Tri-Y
• Primary Pipe: 41mm (1 5/8")
• Secondary Pipe: 51mm (2")
• Outlet: 63mm (2 1/2")
• Base Pipe: Includes flex section
• Power Steering: Yes
• Air Conditioning: Yes

Additional Options

• Ceramic Coating: Available as an optional upgrade where listed
• DSF082 Header Gasket: Replacement cylinder-head-to-header gasket available separately

What’s Included

• 1 x PH12700F front header assembly
• 1 x PH12700R rear header assembly
• 1 x PHB075 base pipe with flex section
• Header-to-base-pipe connection gaskets and hardware as supplied

Recommended With

• DSF082 exhaust manifold/header gasket
• 63mm (2 1/2") performance exhaust system
• Replacement exhaust mounting hardware where required

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 4.2L 1HZ diesel draws in approximately 7,100 litres of intake air per minute at an estimated 85% volumetric efficiency and can expel around 21,300 litres of hot exhaust gas per minute. These are calculated estimates and illustrate the large volume of exhaust gas that must flow through the headers and exhaust system under operating conditions.

Fitment Notes

Warranty & Compliance

Frequently Asked Questions

Will PH12700 fit an EGR-equipped 1HZ?
No. PH12700 is intended for compatible non-EGR 1HZ applications. For compatible vehicles fitted with EGR, see Pacemaker PH12701.

What size are the PH12700 headers?
PH12700 uses 41mm (1 5/8") primary pipes, 51mm (2") secondary pipes and a 63mm (2 1/2") outlet.

Is the PHB075 base pipe included?
Yes. This package includes the PHB075 base pipe for the 75/78/79 Series application, including the flex section.

Will these headers fit left-hand-drive models?
Pacemaker application information indicates this configuration can suit left-hand-drive applications; however, overseas LandCruiser specifications can vary, so please contact us with your vehicle details before ordering for an LHD vehicle.

Are these suitable for towing and off-road use?
Yes. The improved exhaust flow and reduced restriction make PH12700 a suitable upgrade for 1HZ LandCruisers used for towing, touring, off-road work and everyday driving.

Do I need a new cylinder-head gasket?
A new DSF082 header/manifold gasket is recommended when installing the headers to help provide a reliable exhaust seal.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
