Toyota LandCruiser Prado 3.4L V6 VZJ95 1996-2003 Pacemaker Headers PH12660
$895.00
Tax included
Pacemaker Headers PH12660 – Toyota LandCruiser Prado VZJ95 3.4L V6 5VZ-FE 1996–2003
Pacemaker PH12660 Headers (extractors) are Australian-made tuned-length performance headers designed for Toyota LandCruiser Prado VZJ95 models fitted with the 3.4L V6 5VZ-FE petrol engine from 1996 to 2003. Featuring 38mm mandrel-bent primary pipes and a 57mm flanged outlet, these headers improve exhaust flow and scavenging for stronger torque, improved throttle response and more efficient exhaust gas evacuation.
The PH12660 kit includes left and right header assemblies plus the PHB12600 base pipe, providing a complete engineered connection from the headers into the exhaust system.
Pacemaker Headers PH12660 – Toyota LandCruiser Prado VZJ95 3.4L V6 5VZ-FE 1996–2003
Pacemaker PH12660 Headers (extractors) are designed for Toyota LandCruiser Prado VZJ95 models fitted with the 3.4L V6 5VZ-FE petrol engine from 1996 to 2003.
Featuring a tuned-length design with 38mm mandrel-bent primary pipes and a 57mm flanged outlet, the PH12660 is designed to improve exhaust gas velocity and scavenging compared with the restrictive factory exhaust manifolds. This can improve usable torque, throttle response and overall engine breathing across the normal driving range.
The complete assembly includes separate left and right headers together with the PHB12600 base pipe, providing a purpose-designed connection between both cylinder banks and the vehicle's exhaust system.
Key Features
- Australian Made
- Designed for Toyota LandCruiser Prado VZJ95
- Suitable for the 3.4L 5VZ-FE V6 petrol engine
- Tuned-length header design
- Mandrel-bent 38mm primary pipes
- 57mm flanged outlet
- Designed to improve exhaust scavenging and gas velocity
- Improved throttle response and usable torque
- Heavy-duty machined mounting flanges
- Quality welded steel construction
- Pacemaker Blue high-temperature finish
Specifications
- Part Number: PH12660
- Vehicle: Toyota LandCruiser Prado
- Chassis: VZJ95
- Engine: 5VZ-FE
- Engine Capacity: 3.4L
- Configuration: V6 Petrol
- Year Range: 1996–2003
- Header Design: Tuned Length
- Primary Pipe Size: 38mm
- Outlet Size: 57mm flanged
- Brand: Pacemaker
- Manufacture: Australian Made
Construction
- High-quality mandrel-bent steel tubing
- Heavy-duty machined flanges for reliable sealing
- Quality welded construction for long service life
- Pacemaker Blue heat-resistant finish rated to approximately 800°C
Additional Options
- Ceramic Coating (PHC30): Available for improved heat management, appearance and durability
- Header Gaskets (DSF009): Available separately
- Matching performance exhaust system – contact us for available options

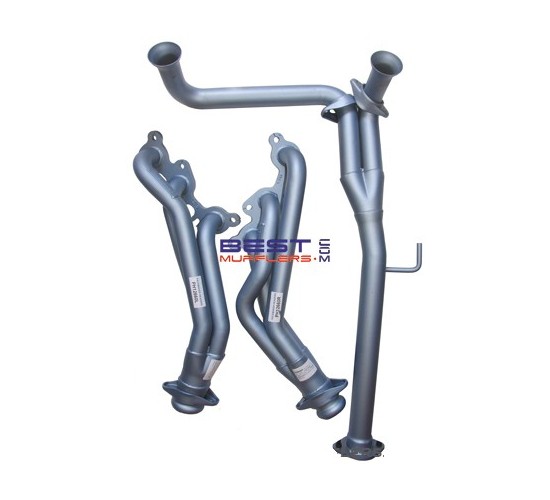

What's Included
- PH12660L – Left Header Assembly
- PH12660R – Right Header Assembly
- PHB12600 – Base Pipe Assembly
- Base pipe gaskets & bolts as supplied
Fitment Notes
- Designed for applicable Toyota LandCruiser Prado VZJ95 3.4L V6 5VZ-FE applications.
- Vehicle range approximately 1996 to 2003.
- Check your chassis and engine identification before ordering.
- PH12660L is the left-hand header and PH12660R is the right-hand header.
- The supplied PHB12600 base pipe connects the header assemblies to the exhaust system.
- Protect painted surfaces and wrap the headers during trial installation to minimise scratching.
- Clearance can be affected by worn engine mounts or aftermarket vehicle modifications.
- Check clearance around steering, transmission, chassis and other surrounding components before final tightening.
- Professional installation is recommended.
- Verify emissions and registration compliance applicable in your state or territory.
Recommended With
- DSF009 Header Gaskets
- Matching performance exhaust system
- New exhaust mounting rubbers where required
- High-temperature anti-seize compound for exhaust fasteners
Why Good Headers & Exhaust Systems Matter
At 3,000 rpm, the 3.4L 5VZ-FE engine moves approximately 4,300 litres of intake air per minute and expels around 12,900 litres of exhaust gas per minute when exhaust gas volume is considered at approximately 600°C.
At 5,000 rpm, this increases to approximately 7,200 litres of intake air per minute and around 21,500 litres of hot exhaust gas per minute.
A correctly designed tuned-length header and free-flowing exhaust system helps manage this increasing gas volume by improving exhaust scavenging and reducing unnecessary restriction. This is particularly beneficial for a 4WD such as the Prado where strong usable torque and throttle response are important.
Warranty & Compliance
- Backed by Pacemaker's 2-year manufacturer warranty under standard warranty conditions.
- Correct installation and adequate clearance around the headers are required.
- Warranty applies to the supplied components and does not cover labour or consequential costs.
- Verify emissions, noise and registration requirements applicable in your state or territory before installation.
Frequently Asked Questions
What vehicles do Pacemaker PH12660 Headers suit?
PH12660 is designed for applicable Toyota LandCruiser Prado VZJ95 models fitted with the 3.4L V6 5VZ-FE petrol engine from approximately 1996 to 2003.
What engine do these headers fit?
They are designed for Toyota's 3.4L 5VZ-FE DOHC V6 petrol engine.
What size are the primary pipes?
PH12660 uses 38mm mandrel-bent primary pipes with a 57mm flanged outlet.
Are PH12660 Headers tuned length?
Yes. PH12660 uses a tuned-length design intended to improve exhaust gas velocity, scavenging and usable engine performance.
Does the kit include both headers?
Yes. The PH12660 kit includes the PH12660L left-hand header and PH12660R right-hand header.
Is the base pipe included?
Yes. The kit includes the PHB12600 base pipe assembly together with its supplied gaskets and bolts.
Are header gaskets included?
The DSF009 header gaskets are available separately. We recommend fitting new gaskets when installing the headers.
Is ceramic coating available?
Yes. PHC30 ceramic coating is available as an optional upgrade for improved heat management, durability and appearance.
Are Pacemaker PH12660 Headers Australian made?
Yes. Pacemaker Headers are manufactured in Australia.
Do you ship Australia wide?
Yes. Best Mufflers ships Pacemaker Headers and exhaust components throughout Australia.
Do you ship to the USA?
Yes. Best Mufflers ships Pacemaker Headers internationally, including to customers in the United States. International freight and applicable customs duties or tariffs are additional.
