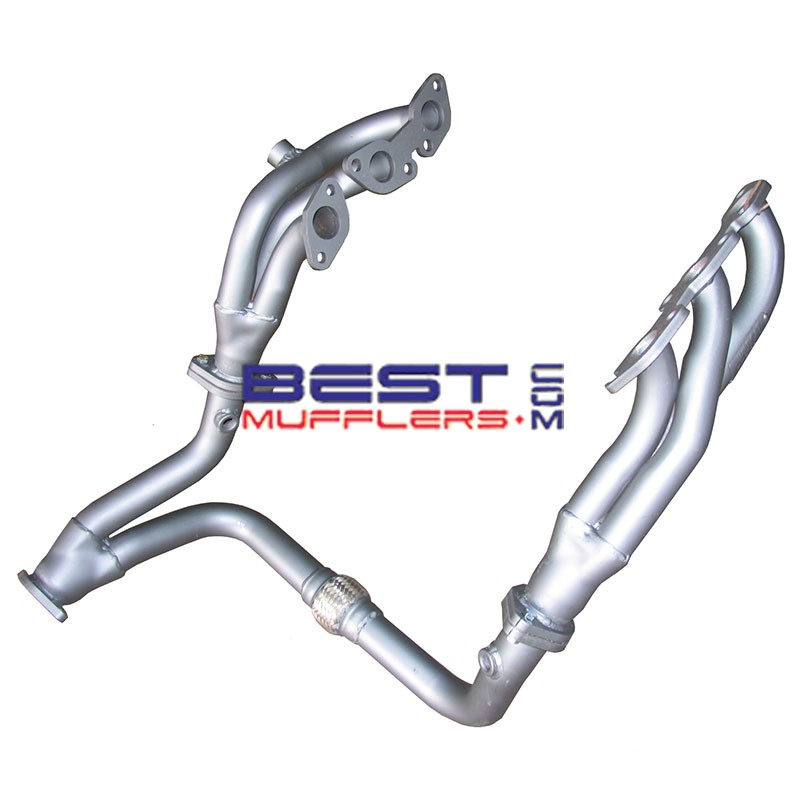

Nissan Navara D22 3.3L V6 VG33E Headers – Wildcat WILD702

Wildcat WILD702 exhaust headers (extractors) are designed for the Nissan Navara D22 fitted with the 3.3L V6 VG33E petrol engine from 2003 to 12/2005.

Featuring an interference-style extractor design, WILD702 replaces the restrictive factory exhaust manifolds and is designed to improve exhaust gas flow and scavenging. The larger mandrel-bent pipework helps improve low and mid-range torque, throttle response and overall engine performance, making these headers well suited to street, touring and 4WD applications.

Key Features

• Designed for Nissan Navara D22 3.3L V6
• Suits the VG33E petrol engine
• Interference-style design for improved exhaust scavenging and street performance
• 1.58" primary pipes
• 2.00" secondary pipes
• 2.25" outlets
• Mandrel-bent pipework for smooth exhaust gas flow
• Designed to improve exhaust flow, torque, throttle response and engine performance

Construction

• Australian-made Wildcat performance headers
• Mandrel-bent mild steel construction
• Strong welded construction for durability
• Heat-resistant painted finish rated to approximately 600°C
• Precision mounting flanges for reliable sealing

Vehicle Fitment

• Make: Nissan
• Model: Navara
• Series: D22
• Engine: VG33E V6 petrol
• Capacity: 3.3L / 3275cc
• Year: 2003–12/2005

Fitment Notes

• Welding is required to connect the headers to the existing exhaust system
• Please confirm the vehicle is fitted with the 3.3L VG33E V6 petrol engine before ordering
• The engine identification/code can be found towards the driver's-side rear of the engine block
• Existing exhaust components should be inspected during installation and replaced where required

What’s Included

• Wildcat WILD702 header / extractor assemblies

Recommended With

• Quality exhaust manifold/header gaskets
• Replacement manifold studs and nuts where existing hardware is worn or corroded
• Professional exhaust fabrication and welding for connection to the existing exhaust system
• Free-flowing exhaust system for further reduction in exhaust restriction

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 3.3L VG33E V6 draws in approximately 6,550 litres of intake air per minute and expels around 19,650 litres of hot exhaust gas per minute at approximately 600°C. A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Apply penetrating lubricant such as WD-40 or similar to the manifold studs, nuts and exhaust fasteners before removal. Trial-fit both headers and exhaust connections before welding or fully tightening the system. Protect the painted surfaces during installation to minimise scratching or damage.

Warranty & Compliance

Wildcat headers are covered by the manufacturer's warranty subject to standard warranty terms and conditions.

Exhaust and emissions requirements vary between Australian states and territories. Installation must retain the catalytic converters, oxygen sensors and any other emissions-control equipment required for the vehicle and comply with the regulations applicable in your state or territory.

FAQ

What Nissan Navara does WILD702 suit?
WILD702 is designed for the Nissan Navara D22 fitted with the 3.3L V6 VG33E petrol engine from 2003 to 12/2005.

How can I confirm my Navara has the VG33E engine?
Check the vehicle identification details and engine number before ordering. The engine identification is located towards the driver's-side rear of the engine block.

Does fitting WILD702 require welding?
Yes. Welding is required to connect the headers to the existing exhaust system. Professional exhaust installation is recommended.

What size are the header pipes?
WILD702 uses 1.58" primary pipes, 2.00" secondary pipes and 2.25" outlets.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.
