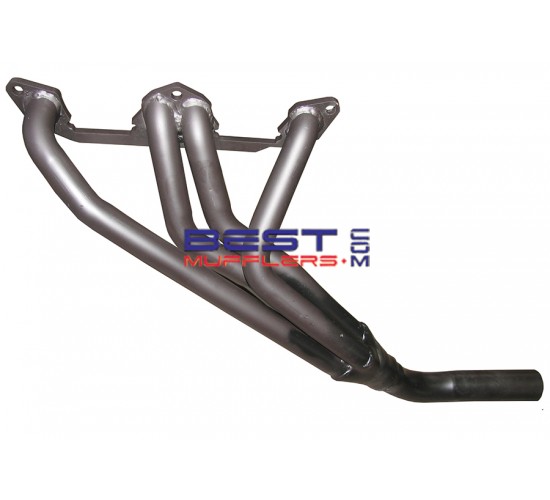

Datsun 1200 120Y Sunny A10 A12 A14 A15 Headers – Wildcat WILD127

Wildcat WILD127 exhaust headers (extractors) are designed for selected Datsun 1200 Sedan, 1200 Ute, 120Y and Sunny applications fitted with Datsun A-series petrol engines including A10, A12, A14 and A15.

Featuring a tuned-length header design with 1.38" primary pipes and a 2.00" outlet, WILD127 is designed to improve exhaust scavenging and exhaust gas flow, helping improve torque, throttle response and usable engine performance.

WILD127 is also designed to provide clearance for twin-carburettor installations, making it suitable for standard and modified street-performance A-series engines where the correct engine mount configuration is used.

Important: Datsun A-series engines and chassis use different left-side engine mount bracket and block mounting positions. The engine mount configuration must be checked carefully before ordering.

Please check availability and current lead time before ordering.

Key Features

• Designed for selected Datsun 1200 Sedan, 1200 Ute, 120Y and Sunny applications
• Suits selected A10, A12, A14 and A15 Datsun A-series engines
• Tuned-length design for street performance applications
• 1.38" (approximately 35mm) primary pipes
• 2.00" (approximately 51mm) outlet
• Designed to provide clearance for twin-carburettor installations
• Designed to improve exhaust flow, torque, throttle response and engine performance

Construction

• Australian-made Wildcat performance headers
• Quality mild steel construction
• Strong welded construction for durability
• Heavy-duty cylinder-head mounting flange
• Heat-resistant painted finish rated to approximately 600°C

Additional Options

• RBG127S: Exhaust manifold/header gasket available separately
• HG284: Alternative exhaust manifold/header gasket where applicable
• Replacement manifold studs, nuts and exhaust hardware where required

Vehicle Fitment

• Make: Datsun
• Models: 1200 Sedan / 1200 Ute / 120Y / Sunny
• Engine Family: Datsun A-Series
• Engine Codes: A10 / A12 / A14 / A15 – selected applications
• Engine Capacity: Approximately 1.0L–1.5L
• Application: Naturally aspirated petrol

Fitment Notes

• Suits selected Datsun 1200 Sedan, 1200 Ute, 120Y and Sunny applications
• Designed for selected A10, A12, A14 and A15 A-series engines
• Will provide clearance for twin-carburettor installations
• The correct engine mount bracket configuration is critical to header clearance
• Check the engine mounting arrangement shown in the product images before ordering
• Some models and engine conversions may require modification to the collector/outlet connection
• Older Datsuns are commonly modified or fitted with later A-series engines, so engine code alone should not be used to determine fitment
• Check clearance around the engine mount bracket, steering assembly, crossmember and exhaust before final installation
• Please check availability and current lead time before ordering.

Important – A-Series Engine Mount Differences

Datsun A-series engines have different left-side engine mount bracket and block mounting positions depending on the engine and production period. These differences can affect WILD127 header clearance.

• Earlier A-series engines and chassis can use the original forward engine-mount boss position
• Later A-series blocks can use a rearward-positioned left-side engine mounting arrangement
• The different mounting position can cause interference between the engine mount bracket, header primary pipes or collector
• Vehicles fitted with engine conversions may combine an early chassis with a later engine block or vice versa
• Modification to the engine mount bracket or exhaust connection may be required on non-standard combinations

Best Mufflers recommends comparing your engine mount bracket and block configuration with the product images before ordering WILD127.

What’s Included

• 1 x Wildcat WILD127 header / extractor assembly
• Flanged outlet connection as supplied

Recommended With

• RBG127S or HG284 exhaust manifold/header gasket as applicable
• Replacement manifold studs and nuts where required
• High-temperature exhaust gasket sealant where appropriate
• Suitable performance exhaust system where further exhaust flow improvement is required

Why Good Headers & Exhaust Systems Matter

Although the Datsun A-series is a relatively small-capacity engine, at higher engine speeds it still moves a substantial volume of intake air and hot exhaust gas. A well-designed tuned-length header and exhaust system helps evacuate these gases efficiently, reducing exhaust restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Apply penetrating lubricant such as WD-40 or similar to the manifold studs, nuts and exhaust fasteners before removal
• Remove all traces of the old manifold gasket before installing the header
• Inspect the cylinder-head sealing surface, studs and threads before installation
• Trial-fit the header before fully tightening the mounting hardware
• Pay particular attention to clearance around the left-side engine mount bracket
• Check clearance around the steering assembly, crossmember, transmission and surrounding components
• Protect the painted header surfaces during trial fitting and installation
• Complete any required exhaust fabrication before final tightening
• Inspect and re-tighten the mounting hardware after the initial heat cycles

Warranty & Compliance

Wildcat headers are covered by the applicable manufacturer's warranty subject to standard warranty terms and conditions.

Correct installation and adequate clearance around the engine mounts, steering, crossmember and surrounding components are essential. Engine conversions, modified engine mounts and other vehicle modifications may affect fitment.

FAQ

Which Datsun models does WILD127 suit?
WILD127 is designed for selected Datsun 1200 Sedan, 1200 Ute, 120Y and Sunny applications fitted with compatible Datsun A-series engines.

Which engines does WILD127 suit?
WILD127 is designed for selected A10, A12, A14 and A15 Datsun A-series engine applications. Engine mount configuration must also be checked before ordering.

Will WILD127 fit twin carburettors?
Yes. WILD127 is designed to provide clearance for twin-carburettor applications, subject to the vehicle's overall engine and induction configuration.

Why do I need to check the engine mount?
Different Datsun A-series engine blocks and chassis use different left-side engine mounting positions. The wrong engine mount configuration can interfere with the header primary pipes or collector.

Will WILD127 fit an engine conversion?
Possibly, but an engine conversion can combine different engine blocks, mounts and chassis configurations. Compare your engine mount arrangement with the product images before ordering, as modification may be required.

What size are the WILD127 header pipes?
WILD127 uses 1.38" (approximately 35mm) primary pipes with a 2.00" (approximately 51mm) outlet.

Which gasket does WILD127 use?
The listed gasket options are RBG127S or HG284, depending on the application.

Are WILD127 headers made to order?
Yes. WILD127 may be made to order. Please contact us for current availability and production lead time before ordering.

Are WILD127 headers Australian made?
Yes. Wildcat WILD127 headers are manufactured in Australia.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
