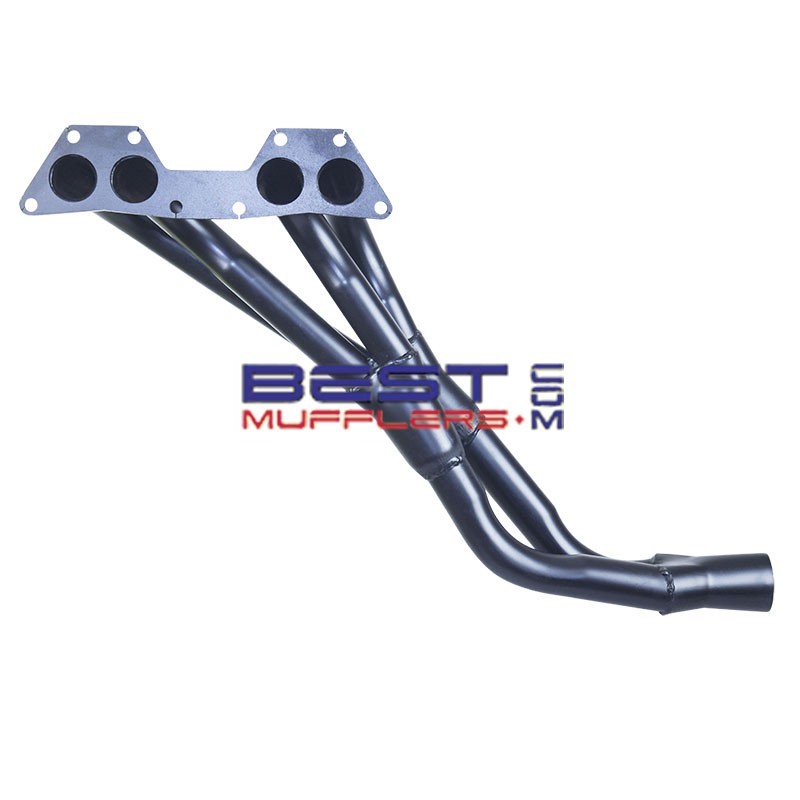

Mitsubishi L300 Express SF SG SH SJ 1987-1996 2.0L 2.4L MWB Wildcat Exhaust Headers WILD095

Wildcat WILD095 headers (extractors) are designed for the Mitsubishi L300 Express SF, SG, SH and SJ medium-wheelbase vans from 1987 to 1996 fitted with the 2.0L 4G63 or 2.4L 4G64 8-valve petrol engine.

Featuring a Tri-Y header design, WILD095 provides a performance replacement for the original exhaust manifold and is designed to improve exhaust flow, torque, throttle response and engine performance.

The Wildcat application catalogue specifies 38mm (1½") primary pipes, 44mm (1¾") secondary pipes and a 51mm (2") flanged outlet.

IMPORTANT: WILD095 is specifically catalogued for the MEDIUM WHEELBASE L300 application. Short-wheelbase models use WILD094.

Australian Made.

Please check availability and current lead time before ordering.

Key Features

• Suits Mitsubishi L300 Express SF, SG, SH and SJ
• Application range: 1987-1996
• Suits 2.0L 4G63 8-valve petrol engine
• Suits 2.4L 4G64 8-valve petrol engine
• Medium wheelbase (MWB) application
• Suits applicable 2WD and 4WD models
• Suits manual and automatic transmissions
• Suits vehicles with air-conditioning
• Suits vehicles with power steering
• Tri-Y header design
• 38mm (1½") primary pipes
• 44mm (1¾") secondary pipes
• 51mm (2") flanged outlet
• Oxygen-sensor provision
• Direct bolt-on fitment
• Australian Made

Construction

Wildcat WILD095 headers are Australian Made and use a Tri-Y configuration designed around the Mitsubishi 4G63 and 4G64 8-valve petrol engine applications.

The header configuration uses 38mm (1½") primary pipes feeding into 44mm (1¾") secondary pipes and a 51mm (2") flanged outlet.

Additional Options

WILD094 – SWB: For applicable short-wheelbase L300 SF-SJ models fitted with the 2.0L 4G63 or 2.4L 4G64 8-valve engine.

WILD095 – MWB: The application covered by this listing.

WILD096: For applicable later L300 models fitted with the 2.4L 4G64 16-valve engine with spread-bore exhaust ports.

Please contact Best Mufflers if you are unsure which L300 header is correct for your vehicle.

Vehicle Fitment

• Make: Mitsubishi
• Model: L300 Express Van
• Series: SF / SG / SH / SJ
• Year Range: 1987-1996
• Engines: 4G63 / 4G64
• Capacity: 2.0L / 2.4L
• Configuration: 8-valve four-cylinder petrol
• Wheelbase: Medium wheelbase (MWB)
• Drive: 2WD / 4WD
• Transmission: Manual / Automatic

IMPORTANT: Confirm engine type, cylinder-head configuration and wheelbase before ordering. WILD095 is specifically listed for the 4G63/4G64 8-valve MWB application.

Header Specifications

• Design: Tri-Y
• Primary Pipe: 38mm (1½")
• Secondary Pipe: 44mm (1¾")
• Outlet: 51mm (2")
• Outlet Type: Flanged
• Fitment: Direct bolt-on
• Manual Transmission: Yes
• Automatic Transmission: Yes
• Air-Conditioning: Yes
• Power Steering: Yes
• Oxygen Sensor: Provision included – three oxygen-sensor fittings supplied
• Replacement Gasket: RBG019S

Fitment Notes

Medium Wheelbase: The original Wildcat application catalogue specifies WILD095 for the medium-wheelbase Mitsubishi L300 Express.

2WD & 4WD: WILD095 is catalogued for applicable 2WD and 4WD models.

Manual & Automatic: WILD095 is listed for both manual and automatic transmission applications.

4G63 & 4G64: This header is for the 8-valve 2.0L 4G63 and 2.4L 4G64 applications. Later 4G64 engines with the different 16-valve spread-bore cylinder-head arrangement require a different header.

Oxygen Sensor: WILD095 is designed with oxygen-sensor provision, with the Wildcat catalogue specifying three oxygen-sensor fittings supplied.

Because these vehicles are now older, engines and exhaust systems may have been replaced or modified. Confirm the engine, cylinder-head configuration, wheelbase and existing exhaust system before ordering.

What's Included

• 1 x Wildcat WILD095 header/extractor assembly
• 3 x oxygen-sensor fittings

Gaskets, bolts and other installation hardware should not be assumed to be included unless confirmed with the current product before ordering.

Recommended With

RBG019S – replacement header/manifold gasket.

Before installation, inspect the existing exhaust system, engine mounts, manifold studs, oxygen sensor, gaskets and associated mounting hardware.

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 2.0L 4G63 engine theoretically draws approximately 4,000 litres of intake air per minute at 100% volumetric efficiency and expels around 12,000 litres of hot exhaust gas per minute at approximately 600°C.

At the same engine speed, the 2.4L 4G64 engine theoretically draws approximately 4,800 litres of intake air per minute and expels around 14,400 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Before installation, confirm that the vehicle is the applicable medium-wheelbase Mitsubishi L300 Express fitted with the 4G63 or 4G64 8-valve petrol engine.

Lubricate threaded fasteners with WD-40 or a similar penetrating lubricant before removal to assist with easier removal and installation.

Professional installation is recommended. After installation and several heat cycles, inspect the exhaust system for leaks and recheck accessible fasteners where appropriate.

Warranty & Compliance

Wildcat mild-steel extractors are covered by a 1-year manufacturer warranty from the date of invoice, subject to the manufacturer's warranty terms and exclusions.

Any catalytic converter, oxygen sensor and other emissions-control equipment required for the particular vehicle must remain correctly installed and operational.

Installation must comply with applicable Australian state or territory requirements relating to emissions, exhaust noise and vehicle modifications.

FAQ

What Mitsubishi L300 does WILD095 fit?
WILD095 is catalogued for Mitsubishi L300 Express SF, SG, SH and SJ medium-wheelbase models from 1987-1996 fitted with the applicable 2.0L 4G63 or 2.4L 4G64 8-valve petrol engine.

Does WILD095 fit both the 2.0L and 2.4L engines?
Yes. WILD095 is listed for the 2.0L 4G63 and 2.4L 4G64 8-valve engines.

Does WILD095 fit short-wheelbase L300 vans?
No. Short-wheelbase models use WILD094.

Does WILD095 fit long-wheelbase L300 vans?
The original Wildcat application catalogue specifically identifies WILD095 as the medium-wheelbase application. Some current retailer information also lists WILD095 for LWB vehicles, but because these applications can vary, please contact us with your vehicle details before ordering for an LWB model.

Does WILD095 fit 2WD and 4WD?
Yes. WILD095 is listed for applicable 2WD and 4WD models.

Does WILD095 fit manual and automatic transmissions?
Yes. WILD095 is listed for both manual and automatic transmission applications.

Does WILD095 have oxygen-sensor provision?
Yes. The Wildcat catalogue specifies oxygen-sensor provision and three oxygen-sensor fittings supplied.

What size are the WILD095 headers?
WILD095 uses 38mm (1½") primary pipes, 44mm (1¾") secondary pipes and a 51mm (2") flanged outlet.

What gasket suits WILD095?
The Wildcat catalogue specifies RBG019S as the replacement header/manifold gasket.

What warranty applies?
Current Wildcat warranty information specifies a 1-year manufacturer warranty for Wildcat extractors, subject to the manufacturer's terms and exclusions.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
