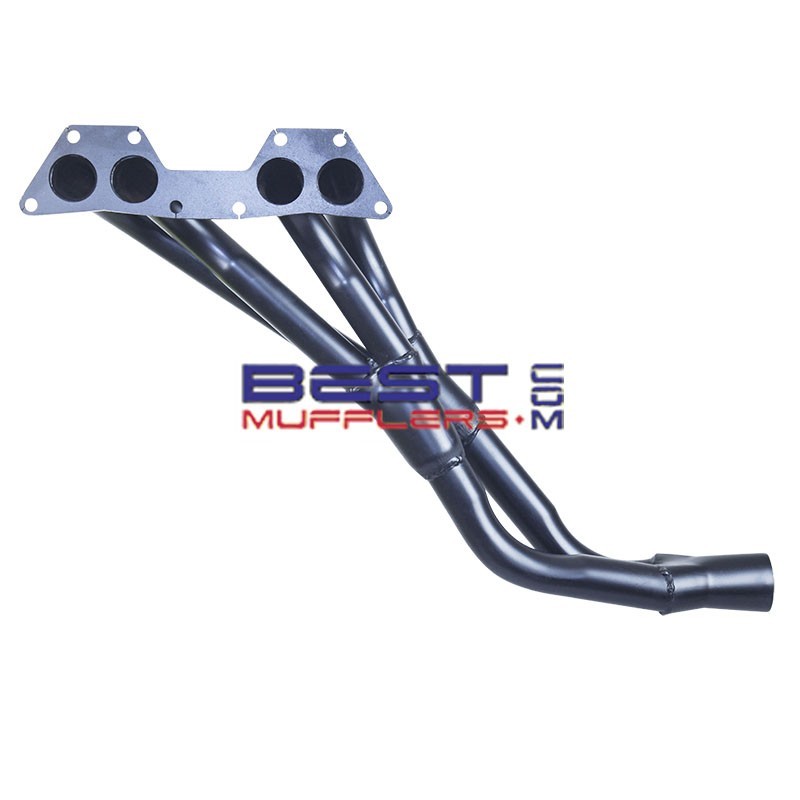

Mitsubishi L300 Express SF SG SH SJ 1987-1996 2.0L 2.4L SWB Wildcat Exhaust Headers WILD094

Wildcat WILD094 headers (extractors) are designed for the Mitsubishi L300 Express SF, SG, SH and SJ short-wheelbase vans from 1987 to 1996 fitted with the 2.0L 4G63 or 2.4L 4G64 8-valve petrol engine.

Featuring a Tri-Y header design, WILD094 provides a performance replacement for the original exhaust manifold and is designed to improve exhaust flow, torque, throttle response and engine performance.

The Wildcat application catalogue specifies approximately 41mm (1⅝") primary pipes, 44mm (1¾") secondary pipes and a 51mm (2") flanged outlet.

IMPORTANT: WILD094 suits SHORT WHEELBASE L300 models only. Medium and long-wheelbase applications use a different header – see WILD095.

Australian Made.

Please check availability and current lead time before ordering.

Key Features

• Suits Mitsubishi L300 Express SF, SG, SH and SJ
• Application range: 1987-1996
• Suits 2.0L 4G63 8-valve petrol engine
• Suits 2.4L 4G64 8-valve petrol engine
• Short wheelbase (SWB) models only
• Suits applicable 2WD and 4WD models
• Suits manual and automatic transmissions
• Suits vehicles with air-conditioning
• Suits vehicles with power steering
• Tri-Y header design
• Approximately 41mm (1⅝") primary pipes
• Approximately 44mm (1¾") secondary pipes
• 51mm (2") flanged outlet
• Direct bolt-on fitment
• Australian Made

Construction

Wildcat WILD094 headers are Australian Made and use a Tri-Y configuration designed around the Mitsubishi 4G63 and 4G64 8-valve petrol engine applications.

The header configuration uses approximately 41mm (1⅝") primary pipes feeding into 44mm (1¾") secondary pipes and a 51mm (2") flanged outlet.

Additional Options

WILD094 – SWB: Suits the short-wheelbase L300 application covered by this listing.

WILD095 – MWB/LWB: A separate Wildcat header is available for applicable medium and long-wheelbase L300 SF-SJ 2.0L and 2.4L models.

WILD096: A separate header is available for later L300 applications fitted with the 2.4L 4G64 16-valve engine with spread-bore exhaust ports.

Please contact Best Mufflers if you are unsure which L300 header is correct for your vehicle.

Vehicle Fitment

• Make: Mitsubishi
• Model: L300 Express Van
• Series: SF / SG / SH / SJ
• Year Range: 1987-1996
• Engines: 4G63 / 4G64
• Capacity: 2.0L / 2.4L
• Configuration: 8-valve four-cylinder petrol
• Wheelbase: Short wheelbase (SWB) only
• Drive: 2WD / 4WD
• Transmission: Manual / Automatic

IMPORTANT: Confirm engine type, cylinder-head configuration and wheelbase before ordering. WILD094 is specifically listed for the 4G63/4G64 8-valve SWB application.

Header Specifications

• Design: Tri-Y
• Primary Pipe: Approximately 41mm (1⅝")
• Secondary Pipe: Approximately 44mm (1¾")
• Outlet: 51mm (2")
• Outlet Type: Flanged
• Fitment: Direct bolt-on
• Manual Transmission: Yes
• Automatic Transmission: Yes
• Air-Conditioning: Yes
• Power Steering: Yes
• Replacement Gasket: RBG019S

Fitment Notes

Short Wheelbase Only: WILD094 is specifically designed for the SWB Mitsubishi L300 Express. It should not be ordered for a medium or long-wheelbase van simply because the engine is the same.

2WD & 4WD: The Wildcat application catalogue lists WILD094 for applicable 2WD and 4WD SWB models.

Manual & Automatic: WILD094 is listed for both manual and automatic transmission applications.

4G63 & 4G64: This header is for the 8-valve 2.0L 4G63 and 2.4L 4G64 applications. Later 4G64 engines with a different cylinder-head and exhaust-port arrangement require a different header.

Because these vehicles are now older, engines and exhaust systems may have been replaced or modified. Confirm the engine, cylinder-head configuration, wheelbase and existing exhaust system before ordering.

What's Included

• 1 x Wildcat WILD094 header/extractor assembly

Gaskets, bolts and other installation hardware should not be assumed to be included unless confirmed with the current product before ordering.

Recommended With

RBG019S – replacement header/manifold gasket.

Before installation, inspect the existing exhaust system, engine mounts, manifold studs, gaskets and associated mounting hardware.

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 2.0L 4G63 engine theoretically draws approximately 4,000 litres of intake air per minute at 100% volumetric efficiency and expels around 12,000 litres of hot exhaust gas per minute at approximately 600°C.

At the same engine speed, the 2.4L 4G64 engine theoretically draws approximately 4,800 litres of intake air per minute and expels around 14,400 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Before installation, confirm that the vehicle is a short-wheelbase Mitsubishi L300 Express fitted with the applicable 4G63 or 4G64 8-valve petrol engine.

Lubricate threaded fasteners with WD-40 or a similar penetrating lubricant before removal to assist with easier removal and installation.

Professional installation is recommended. After installation and several heat cycles, inspect the exhaust system for leaks and recheck accessible fasteners where appropriate.

Warranty & Compliance

Any catalytic converter, oxygen sensor and other emissions-control equipment required for the particular vehicle must remain correctly installed and operational.

Installation must comply with applicable Australian state or territory requirements relating to emissions, exhaust noise and vehicle modifications.

FAQ

What Mitsubishi L300 does WILD094 fit?
WILD094 is listed for Mitsubishi L300 Express SF, SG, SH and SJ short-wheelbase models from 1987-1996 fitted with the applicable 2.0L 4G63 or 2.4L 4G64 8-valve petrol engine.

Does WILD094 fit both the 2.0L and 2.4L engines?
Yes. The Wildcat application catalogue lists WILD094 for the 2.0L 4G63 and 2.4L 4G64 8-valve engines.

Does WILD094 fit long-wheelbase L300 vans?
No. WILD094 is specifically listed for SWB models. See WILD095 for applicable medium and long-wheelbase L300 applications.

Does WILD094 fit 2WD and 4WD?
Yes. The Wildcat application catalogue lists WILD094 for applicable 2WD and 4WD SWB models.

Does WILD094 fit manual and automatic transmissions?
Yes. WILD094 is listed for both manual and automatic transmission applications.

Does WILD094 fit vehicles with air-conditioning and power steering?
Yes. Both air-conditioning and power steering are shown as compatible in the application catalogue.

What size are the WILD094 headers?
The catalogue specifies approximately 41mm (1⅝") primary pipes, 44mm (1¾") secondary pipes and a 51mm (2") flanged outlet.

What gasket suits WILD094?
The Wildcat application catalogue specifies RBG019S as the replacement gasket.

Will WILD094 fit a Mitsubishi Mighty Max or L200 ute?
WILD094 is specifically catalogued for the L300 Express SWB van application. Fitment to an L200 or Mighty Max ute is not confirmed and should not be assumed, even where the engine is similar.
