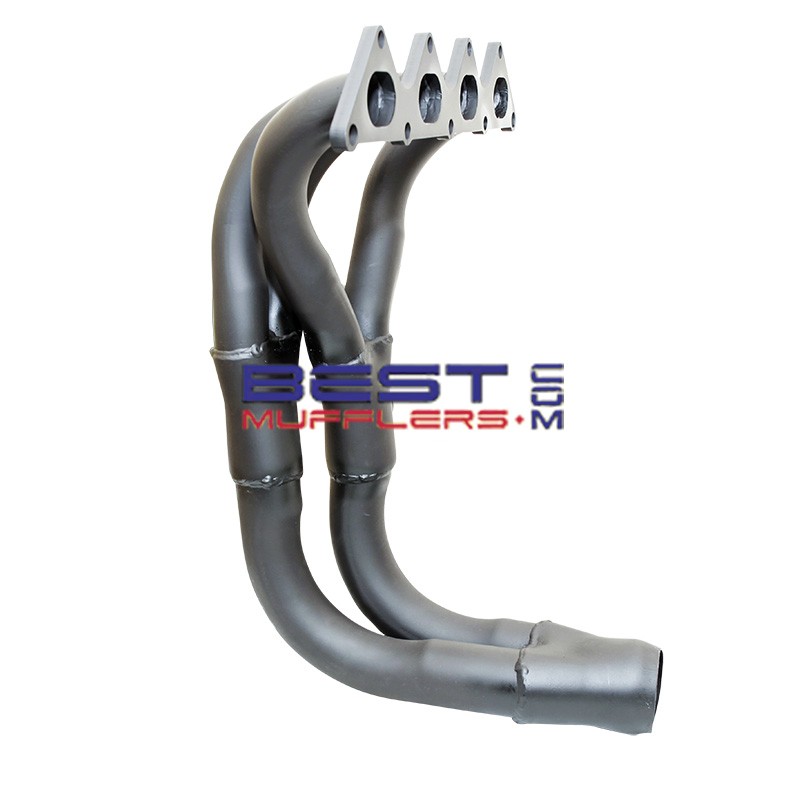

Mitsubishi Lancer CG CH 2.0L 4G94 Headers – Wildcat WILD250

Wildcat WILD250 exhaust headers (extractors) are designed for selected Mitsubishi Lancer CG and CH models fitted with the 2.0L 4G94 petrol engine from 2002 to 2007.

Featuring an interference-style extractor design, WILD250 replaces the restrictive factory exhaust manifold with larger, smoother-flowing pipework. The design helps improve exhaust gas flow and scavenging to reduce restriction and improve torque, throttle response and overall engine performance for street applications.

Welding is required to connect WILD250 to the vehicle's exhaust system. Professional exhaust installation is recommended.

Please check availability before ordering.

Key Features

• Designed for selected Mitsubishi Lancer CG and CH models
• Suits the 2.0L 4G94 petrol engine
• Interference-style design for street performance
• 1.75" primary pipes
• 2.00" secondary pipes
• 2.25" outlet
• Weld-on connection to the existing exhaust system
• Designed to improve exhaust flow, torque, throttle response and engine performance

Construction

• Australian-made Wildcat performance headers
• Quality mild steel construction
• Strong welded construction for durability
• Heat-resistant painted finish rated to approximately 600°C
• Precision mounting flange for reliable cylinder-head sealing

Additional Options

• RBG233: Replacement exhaust manifold/header gasket required and available separately

Vehicle Fitment

• Make: Mitsubishi
• Model: Lancer
• Series: CG / CH
• Engine: 4G94 petrol
• Capacity: 2.0L / 1999cc
• Year Range: 2002–2007

Fitment Notes

• Designed for selected Mitsubishi Lancer CG / CH 2.0L 4G94 models
• Welding to the exhaust system is required
• This should not be considered a complete bolt-on installation
• RBG233 exhaust manifold/header gasket is required
• Professional exhaust installation is recommended
• Please confirm your Lancer is fitted with the 2.0L 4G94 petrol engine before ordering
• Please check availability before ordering

What’s Included

• Wildcat WILD250 header / extractor assembly

Recommended With

• RBG233 exhaust manifold/header gasket
• Replacement manifold studs and nuts where existing hardware is worn or corroded
• Professional exhaust welding and installation
• Free-flowing exhaust system for further reduction in exhaust restriction

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 2.0L 4G94 engine draws in approximately 4,000 litres of intake air per minute and expels around 12,000 litres of hot exhaust gas per minute at approximately 600°C. A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Apply penetrating lubricant such as WD-40 or similar to the manifold studs, nuts and exhaust fasteners before removal. Trial-fit the header and exhaust system before welding. Once alignment and clearance have been confirmed, complete the exhaust connection and fully tighten the manifold hardware. Protect the painted header surfaces during installation to minimise scratching or damage.

Warranty & Compliance

Wildcat headers are covered by the manufacturer's warranty subject to standard warranty terms and conditions.

Installation must retain the catalytic converter, oxygen sensors and any other emissions-control equipment required for the vehicle. Exhaust and emissions requirements vary between Australian states and territories, and the completed installation must comply with the regulations applicable in your state or territory.

FAQ

What Mitsubishi Lancer does WILD250 suit?
WILD250 is designed for selected Mitsubishi Lancer CG and CH models fitted with the 2.0L 4G94 petrol engine from 2002 to 2007.

Does WILD250 suit the 4G64 engine?
This listing is for the 2.0L 4G94 engine. The 4G64 is a 2.4L engine and should not be confused with this application.

Are WILD250 headers a direct fit?
The headers are designed for the applicable engine and vehicle, but welding is required to connect them to the exhaust system. Professional exhaust installation is recommended.

What size are the header pipes?
WILD250 uses 1.75" primary pipes, 2.00" secondary pipes and a 2.25" outlet.

What gasket is required?
RBG233 exhaust manifold/header gasket is required and is available separately.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
