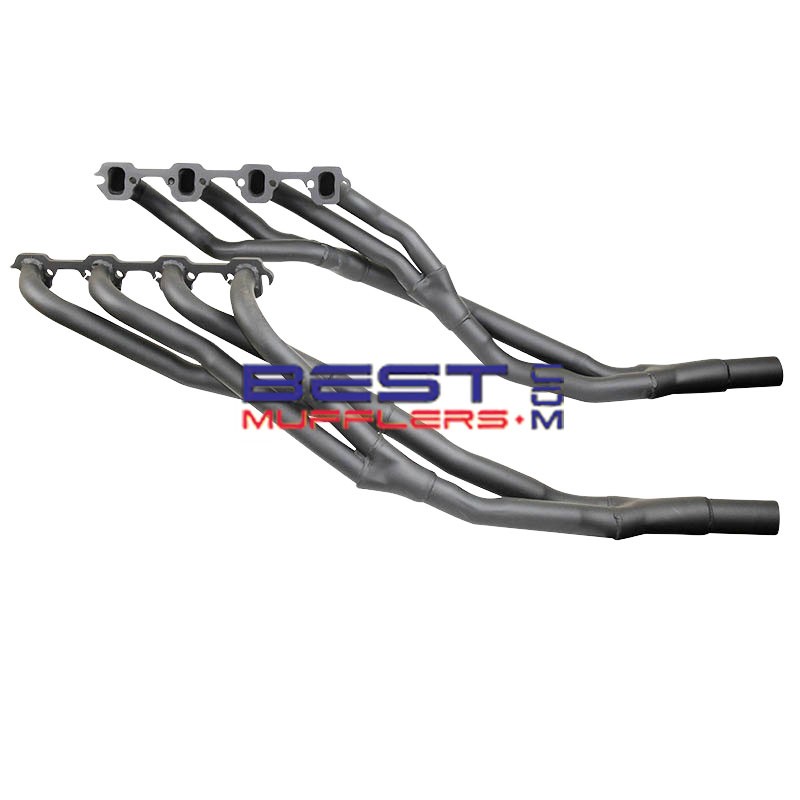

Wildcat Headers WILD076 – Ford Falcon XR XT XW 289 302 Windsor V8

Wildcat WILD076 exhaust headers (extractors) are designed for selected Ford Falcon XR, XT and XW models fitted with 289ci and 302ci Windsor V8 engines.

Manufactured in Australia, WILD076 features an interference header design for street performance applications. The combination of 1.50" primary pipes, 1.75" secondary pipes and 2.00" outlets is designed to improve exhaust scavenging, exhaust gas flow, torque, throttle response and usable engine performance.

Important: WILD076 will not fit vehicles fitted with a C6 automatic transmission.

Key Features

• Australian made Wildcat performance headers
• Interference design for street performance applications
• Designed for selected Ford Falcon XR, XT and XW models
• Suits 289ci and 302ci Windsor V8 engines
• 1.50" primary pipes
• 1.75" secondary pipes
• 2.00" outlets
• Will not fit C6 automatic transmission
• Designed to improve exhaust flow, torque, throttle response and engine performance

Vehicle Fitment

• Make: Ford
• Model: Falcon
• Series: XR / XT / XW
• Engine: Windsor V8
• Engine Capacity: 289ci / 302ci
• Exclusion: C6 automatic transmission

Header Specifications

• Brand: Wildcat
• Part Number: WILD076
• Header Design: Interference
• Primary Pipe Size: 1.50"
• Secondary Pipe Size: 1.75"
• Outlet Size: 2.00"
• Finish: Heat-resistant paint rated to 600°C
• Application: Street Performance
• Manufacture: Australian Made

Construction

• High-quality steel tubing with strong welded construction
• Formed pipework designed for efficient exhaust gas flow
• Heat-resistant paint finish rated to 600°C for added protection and durability
• Australian made

Additional Options

• DSF003: Exhaust manifold/header gasket – available separately
• High-temperature exhaust gasket sealant
• Replacement manifold studs and nuts where required

Fitment Notes

What's Included

• Wildcat WILD076 header / extractor assemblies
• Outlet connection components as supplied

Recommended With

• DSF003 exhaust manifold/header gasket
• High-temperature exhaust gasket sealant
• Replacement manifold studs and nuts where required

Installation Tips

• Lubricate manifold studs, nuts and exhaust fasteners with WD-40 or a similar penetrating lubricant before removal.
• Remove all traces of the old manifold gaskets before installing the headers.
• Inspect the cylinder-head sealing surfaces, manifold studs and threads before installation.
• Fit new DSF003 gaskets and use high-temperature exhaust sealant where recommended.
• Trial-fit both headers before fully tightening the fasteners.
• Check clearance around steering, starter motor, transmission, engine mounts and bodywork.
• Protect the painted header surfaces during installation.
• Re-tighten the header/manifold bolts after approximately 500km to help maintain a reliable gasket seal.

Why Good Headers & Exhaust Systems Matter

• At ~85% volumetric efficiency, a 302ci (5.0L) Windsor V8 at 4,000rpm moves approximately 8,400L/min intake airflow and can expel around 25,200L/min hot exhaust gas
• At higher rpm and under increased engine load, exhaust volume increases significantly due to engine demand and hot-gas expansion
• Efficient headers improve scavenging, reduce exhaust restriction, and support usable horsepower, torque and throttle response

Warranty & Compliance

Frequently Asked Questions

Which Ford Falcon models does WILD076 suit?
WILD076 is designed for selected Ford Falcon XR, XT and XW models fitted with 289ci or 302ci Windsor V8 engines.

Does WILD076 suit both 289 and 302 Windsor engines?
Yes. WILD076 is listed for selected applications fitted with either the 289ci or 302ci Windsor V8.

Will WILD076 fit a C6 automatic transmission?
No. WILD076 will not fit vehicles fitted with a C6 automatic transmission.

What size are the Wildcat WILD076 headers?
WILD076 uses 1.50" primary pipes, 1.75" secondary pipes and 2.00" outlets.

Which gasket does WILD076 use?
The recommended exhaust manifold/header gasket is DSF003, available separately.

What finish is used on WILD076?
The headers have a heat-resistant paint finish rated to 600°C.

Are these headers Australian made?
Yes. WILD076 Wildcat Headers are Australian made.
