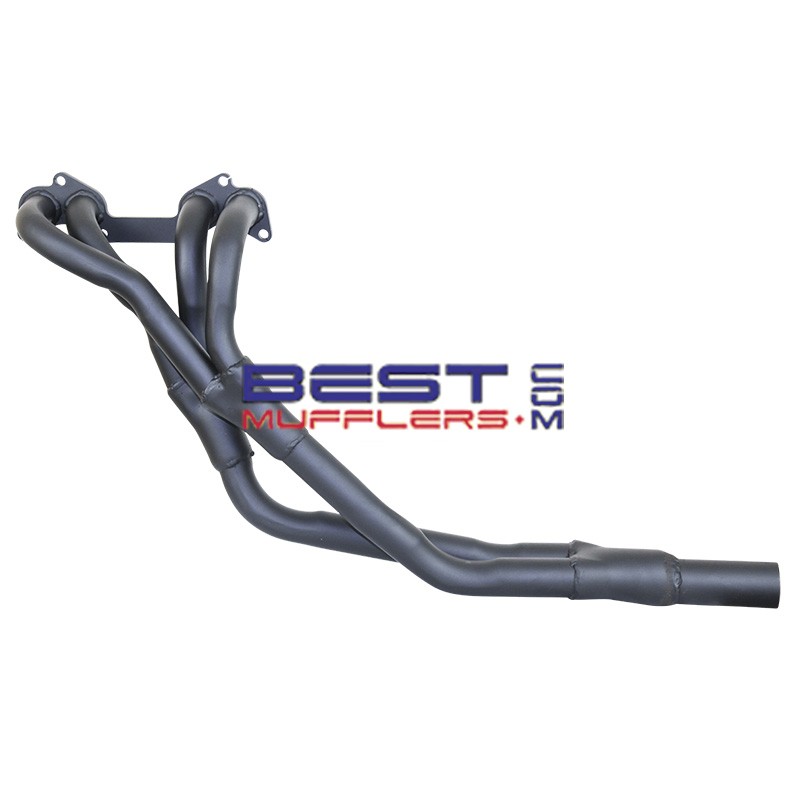

Mazda 929 HB B2000 1984-1987 2.0L FE Wildcat Exhaust Headers WILD037

Wildcat WILD037 headers (extractors) are designed for applicable Mazda 929 HB and Mazda B2000 models fitted with the 2.0L FE SOHC 8-valve petrol engine.

Featuring an interference 4-2-1 design for street performance applications, WILD037 provides a performance replacement for the original exhaust manifold and is designed to improve exhaust flow, torque, throttle response and engine performance.

The supplied WILD037 specifications list 38mm (1½") primary pipes, 44mm (1¾") secondary pipes and a 57mm (2¼") outlet.

Australian Made.

Please check availability and current lead time before ordering.

Key Features

• Suits applicable Mazda 929 HB and Mazda B2000 models
• Suits 2.0L FE petrol engine
• 1998cc inline four-cylinder
• SOHC 8-valve engine
• Interference 4-2-1 design for street performance applications
• Approximately 38mm (1½") primary pipes
• Approximately 44mm (1¾") secondary pipes
• Approximately 57mm (2¼") outlet
• Australian Made

Construction

Wildcat WILD037 headers are Australian Made and designed around applicable rear-wheel-drive Mazda installations using the 2.0L FE SOHC 8-valve petrol engine.

The header configuration uses approximately 38mm (1½") primary pipes feeding into 44mm (1¾") secondary pipes with a 57mm (2¼") outlet.

Additional Options

A replacement exhaust manifold/header gasket is available separately – see RBG037S.

Please contact Best Mufflers if you require advice on fitment, gaskets or exhaust components required to complete the installation.

Vehicle Fitment

• Mazda 929 HB: 2.0L FE SOHC 8-valve petrol – applicable 1984-1987 models
• Mazda B2000: 2.0L FE SOHC 8-valve petrol – applicable models from approximately 1985
• Engine: FE
• Capacity: 2.0L / 1998cc
• Configuration: SOHC 8-valve inline four-cylinder petrol

IMPORTANT: Confirm that the vehicle is fitted with the 2.0L FE engine before ordering. The Mazda F2 is a 2.2L engine and the F8 is a 1.8L engine and should not be treated as 2.0L FE applications.

Header Specifications

• Part Number: WILD037
• Design: Interference 4-2-1 street-performance design
• Primary Pipe: Approximately 38mm (1½")
• Secondary Pipe: Approximately 44mm (1¾")
• Outlet: Approximately 57mm (2¼")
• Replacement Gasket: RBG037S

Fitment Notes

Mazda 929: Australian application data identifies the HB-series Mazda 929 from 1984-1987 with the 1998cc FE SOHC 8-valve engine. Carburettor and fuel-injected versions of the naturally aspirated FE were used during this period.

Mazda B2000: Australian application data identifies the 2.0L FE SOHC 8-valve engine in the B2000 from approximately 1985. Earlier B2000 models used the older MA 2.0L engine and should not automatically be included in this application.

Engine Identification: Check the engine code before ordering. The FE, F8 and F2 are different-capacity engines and should not be grouped together simply as 2.0L engines.

Because these vehicles are now approximately 40 years old, engine conversions and modified exhaust systems are common. Confirm the engine and existing exhaust configuration before ordering.

What's Included

• 1 x Wildcat WILD037 header/extractor assembly

Gaskets, bolts and other installation hardware should not be assumed to be included unless specifically confirmed before ordering.

Recommended With

RBG037S – replacement exhaust manifold/header gasket.

Before installation, inspect the existing exhaust system, manifold studs, engine mounts and associated mounting hardware.

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 2.0L FE four-cylinder engine theoretically draws approximately 4,000 litres of intake air per minute at 100% volumetric efficiency and expels around 12,000 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Before installation, confirm that the vehicle is fitted with the applicable 2.0L FE SOHC 8-valve petrol engine.

Lubricate threaded fasteners with WD-40 or a similar penetrating lubricant before removal to assist with easier removal and installation.

Professional installation is recommended. Check the existing downstream exhaust configuration before fitting, particularly on vehicles with previous exhaust modifications.

After installation and several heat cycles, inspect the exhaust system for leaks and recheck accessible fasteners where appropriate.

Warranty & Compliance

Any emissions-control equipment required for the particular vehicle must remain correctly installed and operational.

Installation must comply with applicable Australian state or territory requirements relating to emissions, exhaust noise and vehicle modifications.

FAQ

What Mazda models does WILD037 fit?
WILD037 is designed for applicable Mazda 929 HB and Mazda B2000 models fitted with the 2.0L FE SOHC 8-valve petrol engine.

What engine does WILD037 suit?
This listing is for the 1998cc FE SOHC 8-valve petrol engine.

Does WILD037 suit the Mazda F2 engine?
The F2 is a 2.2L engine, rather than the 2.0L FE engine covered by this listing. Do not order WILD037 for an F2 application without confirming fitment first.

Is the Mazda F8 a 2.0L engine?
No. The F8 is a 1.8L member of Mazda's F-series engine family. It should not be described as a 2.0L FE engine.

Does WILD037 fit every 1984-1987 Mazda B2000?
No. Earlier B2000 models used the older MA-series 2.0L engine. Confirm that the vehicle has the 2.0L FE engine before ordering.

What size are WILD037 headers?
The supplied specifications list approximately 38mm (1½") primary pipes, 44mm (1¾") secondary pipes and a 57mm (2¼") outlet.

What gasket suits WILD037?
The supplied product information lists RBG037S as the replacement header/manifold gasket.
