Mazda 323 Astina BJ 1.8L FP-DE Headers – Wildcat WILD230

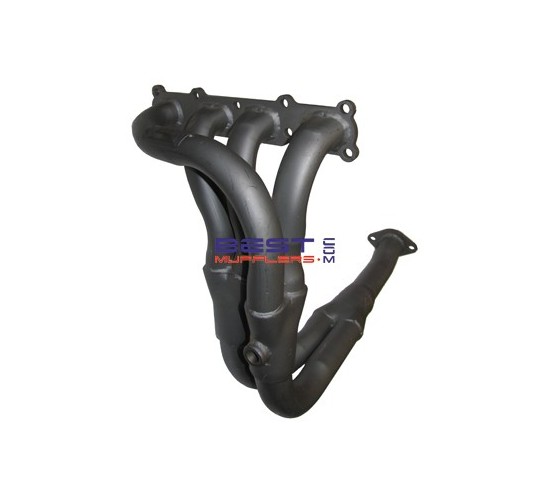

Wildcat WILD230 exhaust headers (extractors) are designed for selected Mazda 323 and Astina BJ models fitted with the 1.8L FP-DE DOHC 16-valve petrol engine from 1998 to 2002.

Featuring an interference-style extractor design, WILD230 replaces the restrictive factory exhaust manifold with larger, smoother-flowing pipework. The design helps improve exhaust gas flow and scavenging to reduce restriction and improve torque, throttle response and overall engine performance for everyday street applications.

Please check availability before ordering.

Key Features

• Designed for selected Mazda 323 and Astina BJ models
• Suits the 1.8L FP-DE DOHC 16-valve petrol engine
• Interference-style design for street performance
• 1.58" primary pipes
• 2.00" secondary pipes
• 2.25" outlet
• Direct-fit design for the applicable vehicle
• Designed to improve exhaust flow, torque, throttle response and engine performance

Construction

• Australian-made Wildcat performance headers
• Quality mild steel construction
• Strong welded construction for durability
• Heat-resistant painted finish rated to approximately 600°C
• Precision mounting flanges for reliable sealing

Additional Options

• RBG230: Replacement exhaust manifold/header gasket available separately
• Replacement exhaust flange gasket and mounting hardware available where required

Vehicle Fitment

• Make: Mazda
• Model: 323 / Astina
• Series: BJ
• Engine: FP-DE DOHC 16-valve petrol
• Capacity: 1.8L / 1839cc
• Year Range: 1998–2002

Fitment Notes

• Designed for selected Mazda 323 / Astina BJ 1.8L models
• Designed as a direct-fit header set for the applicable vehicle
• Replacement manifold/header gasket – see RBG230
• Please confirm your vehicle is fitted with the 1.8L FP-DE DOHC engine before ordering
• Please check availability before ordering.

What’s Included

• Wildcat WILD230 header / extractor assembly

Recommended With

• RBG230 exhaust manifold/header gasket
• Replacement exhaust flange gasket where required
• Replacement manifold studs and nuts where existing hardware is worn or corroded
• Free-flowing exhaust system for further reduction in exhaust restriction

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 1.8L FP-DE engine draws in approximately 3,678 litres of intake air per minute and expels around 11,030 litres of hot exhaust gas per minute at approximately 600°C. A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Apply penetrating lubricant such as WD-40 or similar to the manifold studs, nuts and exhaust fasteners before removal. Inspect the existing manifold gasket, exhaust connection and mounting hardware before installation. Trial-fit the header and exhaust connection before fully tightening the system, and protect the painted surfaces during installation to minimise scratching or damage.

Warranty & Compliance

Wildcat headers are covered by the manufacturer's warranty subject to standard warranty terms and conditions.

Installation must retain the catalytic converter, oxygen sensors and any other emissions-control equipment required for the vehicle. Exhaust and emissions requirements vary between Australian states and territories, and the completed installation must comply with the regulations applicable in your state or territory.

FAQ

What Mazda models does WILD230 suit?
WILD230 is designed for selected Mazda 323 and Astina BJ models fitted with the 1.8L FP-DE DOHC 16-valve petrol engine from 1998 to 2002.

Are WILD230 headers a direct fit?
Yes. WILD230 is designed as a direct-fit header set for the applicable Mazda 323 / Astina BJ 1.8L application.

What size are the header pipes?
WILD230 uses 1.58" primary pipes, 2.00" secondary pipes and a 2.25" outlet.

What gasket is required?
The recommended replacement exhaust manifold/header gasket is RBG230, available separately.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
