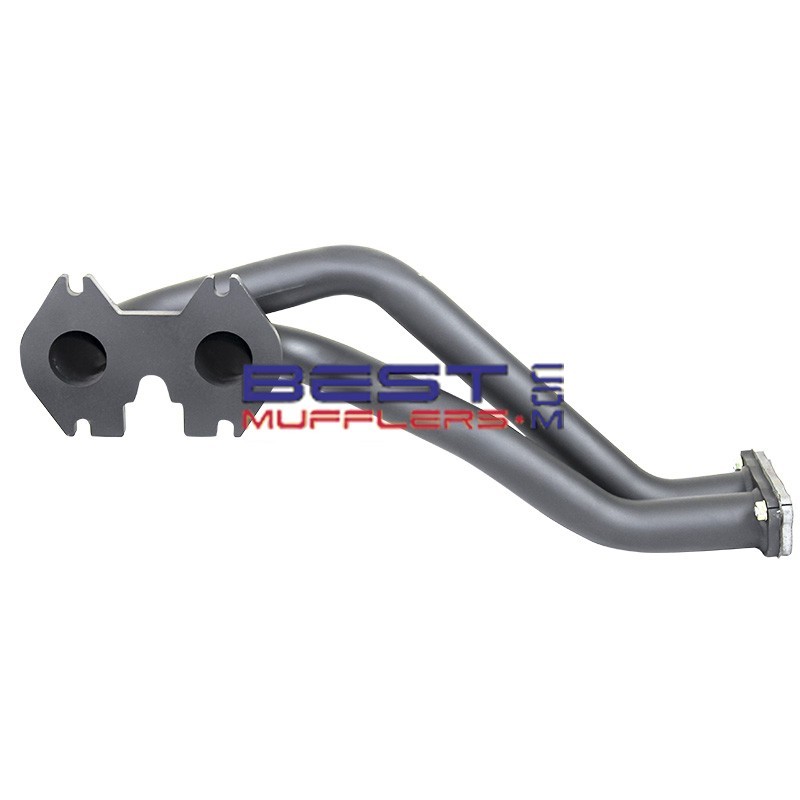

Mazda RX-4 RX-5 RX-7 13B Rotary Headers – Wildcat WILD092

Wildcat WILD092 exhaust headers (extractors) are designed for selected Mazda RX-4, RX-5 and RX-7 models from 1973–1985 fitted with the 13B rotary petrol engine.

Featuring a tuned-length design with large 51mm (2.00") primary pipes and twin outlets, WILD092 is designed to replace the restrictive factory exhaust manifold and improve exhaust gas evacuation from the 13B rotary engine.

The large-diameter header design is suited to the substantial exhaust gas flow produced by a rotary engine and is designed to improve exhaust flow, throttle response and engine performance when combined with a suitable exhaust system.

Please check availability before ordering.

Key Features

• Designed for selected Mazda RX-4, RX-5 and RX-7 applications
• Suits the Mazda 13B rotary petrol engine
• Tuned-length header design
• 51mm (2.00") primary pipes
• Twin outlets
• Designed for street performance applications
• Designed to improve exhaust gas flow, throttle response and engine performance

Construction

• Australian-made Wildcat performance headers
• Quality mild steel construction
• Strong welded construction for durability
• Heavy-duty mounting flanges for reliable sealing
• Heat-resistant painted finish rated to approximately 600°C

Additional Options

• GMG093: Exhaust manifold/header gasket available separately
• Replacement exhaust hardware where required
• Performance exhaust system suitable for the 13B rotary engine

Vehicle Fitment

• Make: Mazda
• Models: RX-4 / RX-5 / RX-7
• Year Range: 1973–1985
• Engine: Mazda 13B rotary petrol
• Engine Capacity: 1.3L nominal
• Application: Naturally aspirated

Fitment Notes

• Designed for selected Mazda RX-4, RX-5 and RX-7 applications fitted with the 13B rotary engine
• Intended for naturally aspirated 13B applications
• Older rotary vehicles are commonly modified, so engine, transmission and exhaust configuration should be checked before ordering
• Engine conversions, aftermarket engine mounts, steering components and modified exhaust systems may affect clearance and fitment
• Protect the painted header surfaces during trial fitting and installation
• Replacement exhaust manifold/header gasket – see GMG093
• Please check availability before ordering.

What’s Included

• 1 x Wildcat WILD092 header / extractor assembly
• Outlet connection components as supplied

Recommended With

• GMG093 exhaust manifold/header gasket
• Replacement manifold studs, bolts and nuts where required
• High-temperature exhaust gasket sealant where appropriate
• Performance exhaust system correctly sized for the 13B rotary engine

Why Good Headers & Exhaust Systems Matter

The Mazda 13B rotary engine has very different intake and exhaust characteristics from a conventional four-stroke piston engine, producing strong, closely spaced exhaust pulses and very high exhaust gas temperatures. A properly designed tuned-length header and exhaust system helps evacuate these gases efficiently, reducing exhaust restriction and improving exhaust flow, throttle response and engine performance.

Installation Tips

• Apply penetrating lubricant such as WD-40 or similar to the manifold studs, nuts and exhaust fasteners before removal
• Remove all traces of the old manifold gasket before installation
• Inspect the exhaust-port sealing surfaces, studs and threads before fitting the headers
• Install a new GMG093 gasket
• Trial-fit the header before fully tightening the mounting hardware
• Check clearance around the engine, steering, transmission, chassis and surrounding components
• Protect the painted surfaces during installation
• Inspect and re-tighten the mounting hardware after the initial heat cycles

Warranty & Compliance

Wildcat headers are covered by the applicable manufacturer's warranty subject to standard warranty terms and conditions.

Correct installation and adequate clearance around surrounding components are essential. Vehicle, engine, transmission and exhaust modifications may affect fitment.

FAQ

Which Mazda models does WILD092 suit?
WILD092 is designed for selected Mazda RX-4, RX-5 and RX-7 models from 1973–1985 fitted with the 13B rotary petrol engine.

Does WILD092 suit the Mazda 12A rotary?
No. WILD092 is listed for the 13B rotary engine. Confirm your engine before ordering.

Does WILD092 suit turbocharged 13B engines?
WILD092 is intended for naturally aspirated 13B applications and should not be considered a replacement turbo exhaust manifold.

What size are the WILD092 header pipes?
WILD092 uses large 51mm (2.00") primary pipes with twin outlets.

Which gasket does WILD092 use?
The recommended exhaust manifold/header gasket is GMG093, available separately.

What finish is used on WILD092?
The headers have a heat-resistant painted finish rated to approximately 600°C.

Are WILD092 headers Australian made?
Yes. Wildcat WILD092 headers are manufactured in Australia.
