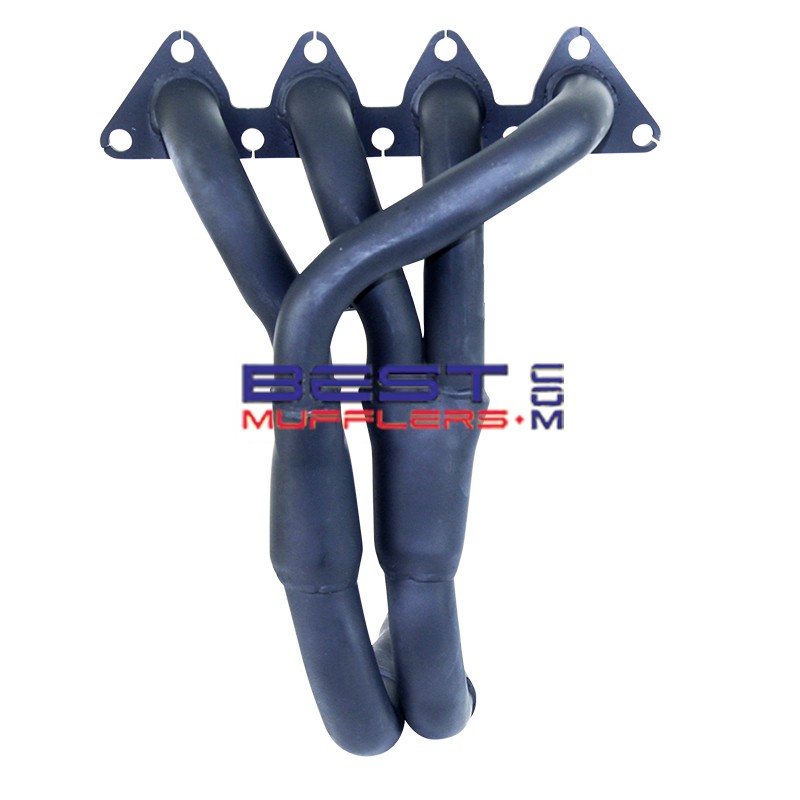

Hyundai Excel X3 1998-2000 1.5L G4FK DOHC Wildcat Exhaust Headers WILD055

Wildcat WILD055 headers (extractors) are designed for the Hyundai Excel X3 fitted with the 1.5L G4FK DOHC 16-valve engine. Australian vehicle application data places this engine in the Excel X3 from approximately 11/1997 to 06/2000.

WILD055 features a Tri-Y interference design developed for street performance applications, using 41mm primary pipes, 44mm secondary pipes and a 57mm outlet.

Please check availability and current lead time before ordering.

Key Features

• Designed for Hyundai Excel X3 with 1.5L G4FK DOHC 16-valve engine
• Tri-Y interference design for street performance applications
• 41mm (1⅝") primary pipes
• 44mm (1¾") secondary pipes
• 57mm (2¼") outlet
• Suits manual and automatic transmission models
• Australian Made

Construction

Wildcat WILD055 headers are manufactured from mild steel and use a Tri-Y configuration with progressively sized primary and secondary pipes leading to a 57mm outlet.

Wildcat headers are manufactured in Australia by the same Australian manufacturer responsible for Genie headers.

Additional Options

Please contact Best Mufflers for current availability and information regarding compatible exhaust components or optional finishes where available.

Vehicle Fitment

• Make: Hyundai
• Model: Excel
• Series: X3
• Year Range: approximately 11/1997-06/2000
• Engine: 1.5L / 1495cc G4FK
• Engine Type: DOHC 16-valve petrol
• Transmission: Manual or automatic
• Body: Sedan and hatch applications

Fitment Note: These headers are for the later G4FK DOHC 16-valve engine. Earlier Excel X3 models fitted with the 1.5L G4EK SOHC 12-valve engine use a different header application.

Header Specifications

• Part Number: WILD055
• Design: Tri-Y interference design
• Primary Pipes: 1⅝" (approximately 41mm)
• Secondary Pipes: 1¾" (approximately 44mm)
• Outlet: 2¼" (approximately 57mm)
• Material: Mild steel
• Manufacture: Australian Made

Fitment Notes

Confirm that the vehicle is fitted with the 1.5L G4FK DOHC 16-valve engine before ordering. This is particularly important with X3 Excel models because earlier vehicles were also produced with the 1.5L SOHC engine.

Lubricate threaded fasteners with WD-40 or a similar penetrating lubricant before removal to assist disassembly and installation.

What's Included

Wildcat WILD055 header assembly. Exhaust manifold/header gaskets are not included unless specifically supplied or shown with the product.

Recommended With

RBG055 exhaust manifold/header gasket is the gasket application specified for WILD055.

Why Good Headers & Exhaust Systems Matter

The 1.5L engine theoretically draws approximately 3,000 litres of intake air per minute at 4,000 rpm at 100% volumetric efficiency. Once combustion has taken place, the hot exhaust gases occupy substantially more volume as they travel through the exhaust system.

Using an illustrative exhaust temperature of approximately 600°C, this represents around 9,000 litres of exhaust gas per minute. A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Professional installation is recommended. Check the exhaust system alignment, mounting points and surrounding clearances during installation.

Lubricate threaded fasteners with WD-40 or a similar penetrating lubricant before removal. After installation and several heat cycles, inspect the system for exhaust leaks and recheck accessible fasteners where appropriate.

Warranty & Compliance

Installation and use must comply with applicable Australian state or territory regulations, including requirements relating to emissions equipment, catalytic converters, exhaust noise and vehicle modifications.

FAQ

Is this product currently available?
Availability and lead times can vary. Please check availability and current lead time before ordering.

Does WILD055 suit the earlier 1.5L SOHC Excel?
No. WILD055 is specifically listed for the later 1.5L G4FK DOHC 16-valve engine. Earlier X3 Excel models fitted with the G4EK SOHC 12-valve engine use a different header application.

Does WILD055 suit manual and automatic models?
Yes. WILD055 is listed for both manual and automatic transmission applications.

What gasket suits WILD055?
The specified exhaust manifold/header gasket is RBG055.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
