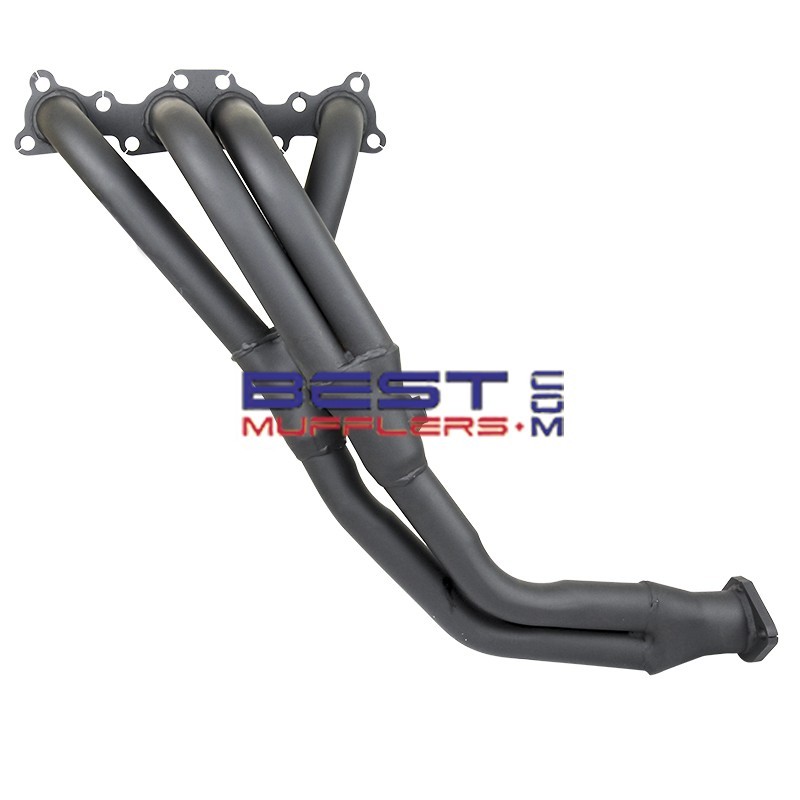

Ford Raider UV 1991-1996 2.6L G6 4WD Wildcat Exhaust Headers WILD046

Wildcat WILD046 headers (extractors) are designed for the Ford Raider UV 4WD from 1991 to 1996 fitted with the 2.6L G6 SOHC 12-valve EFI petrol engine.

Featuring an interference design for street performance applications, WILD046 provides a performance replacement for the original exhaust manifold and is designed to improve exhaust flow, torque, throttle response and engine performance.

The supplied WILD046 specifications list approximately 41mm (1.58") primary pipes, 44mm (1.75") secondary pipes and a 51mm (2.00") outlet.

WILD046 is listed as a direct-fit application for the Ford Raider 4WD.

Australian Made.

Please check availability and current lead time before ordering.

Key Features

• Suits Ford Raider UV
• Application range: 1991-1996
• Suits 2.6L G6 petrol engine
• 2606cc inline four-cylinder
• SOHC 12-valve EFI engine
• 4WD application
• Interference design for street performance applications
• Approximately 41mm (1.58") primary pipes
• Approximately 44mm (1.75") secondary pipes
• Approximately 51mm (2.00") outlet
• Direct-fit application
• Australian Made

Construction

Wildcat WILD046 headers are Australian Made and designed around the Ford Raider installation of the 2.6L G6 SOHC 12-valve petrol engine.

The header configuration uses approximately 41mm (1.58") primary pipes feeding into 44mm (1.75") secondary pipes with a 51mm (2.00") outlet.

Additional Options

A replacement exhaust manifold/header gasket is available separately – see DSF118.

Please contact Best Mufflers if you require advice on gaskets, exhaust components or installation parts for your Ford Raider.

Vehicle Fitment

• Make: Ford
• Model: Raider
• Series: UV
• Year Range: 1991-1996
• Engine: G6
• Capacity: 2.6L / 2606cc
• Configuration: SOHC 12-valve inline four-cylinder petrol
• Fuel System: EFI
• Drive: 4WD

IMPORTANT: WILD046 is specifically for the Ford Raider fitted with the 2.6L G6 petrol engine. Confirm the engine code and existing exhaust configuration before ordering.

Header Specifications

• Design: Interference design for street performance applications
• Primary Pipe: Approximately 41mm (1.58")
• Secondary Pipe: Approximately 44mm (1.75")
• Outlet: Approximately 51mm (2.00")
• Fitment: Direct fit
• Drive: 4WD
• Replacement Gasket: DSF118

Fitment Notes

G6 Engine: WILD046 is designed for the 2.6L G6 SOHC 12-valve EFI petrol engine. Australian application catalogues confirm this engine in the Ford Raider UV during the 1991-1996 period.

4WD Application: The Ford Raider UV was a 4WD wagon. WILD046 is listed specifically for this G6-powered Raider application.

Transmission: Australian vehicle application data confirms the 2.6L G6 Raider was produced with manual and automatic transmissions. The supplied Wildcat information does not specify a transmission restriction for WILD046.

Direct Fit: WILD046 is listed as a direct-fit application. Because these vehicles are now approximately 30 years old, check for previous exhaust modifications or engine changes before installation.

What's Included

• 1 x Wildcat WILD046 header/extractor assembly

Gaskets, bolts and other installation hardware should not be assumed to be included unless specifically confirmed before ordering.

Recommended With

DSF118 – replacement exhaust manifold/header gasket.

Before installation, inspect the existing exhaust system, manifold studs, engine mounts and associated mounting hardware.

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 2.6L G6 four-cylinder engine theoretically draws approximately 5,200 litres of intake air per minute at 100% volumetric efficiency and expels around 15,600 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

Before installation, confirm that the vehicle is a Ford Raider UV 4WD fitted with the 2.6L G6 SOHC 12-valve petrol engine.

Lubricate threaded fasteners with WD-40 or a similar penetrating lubricant before removal to assist with easier removal and installation.

Professional installation is recommended. After installation and several heat cycles, inspect the exhaust system for leaks and recheck accessible fasteners where appropriate.

Warranty & Compliance

Any catalytic converter, oxygen sensor and other emissions-control equipment required for the particular vehicle must remain correctly installed and operational.

Installation must comply with applicable Australian state or territory requirements relating to emissions, exhaust noise and vehicle modifications.

FAQ

What Ford Raider does WILD046 fit?
WILD046 is designed for the Ford Raider UV 4WD from 1991-1996 fitted with the 2.6L G6 SOHC 12-valve EFI petrol engine.

Is the Ford Raider a 4WD?
Yes. The Australian Ford Raider UV 2.6L G6 application is a 4WD wagon.

What engine does the Ford Raider use?
This application uses the 2.6L / 2606cc G6 SOHC 12-valve EFI four-cylinder petrol engine.

Does WILD046 fit manual and automatic Ford Raiders?
Australian application data confirms that the 2.6L G6 Raider was produced with both manual and automatic transmissions. The supplied WILD046 information does not specify a transmission restriction.

Are WILD046 headers direct fit?
Yes. The supplied Wildcat application information lists WILD046 as a direct-fit application. Existing exhaust modifications should still be checked before installation.

What size are WILD046 headers?
The supplied specifications list approximately 41mm (1.58") primary pipes, 44mm (1.75") secondary pipes and a 51mm (2.00") outlet.

What gasket suits WILD046?
The supplied application information lists DSF118 as the replacement exhaust manifold/header gasket.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
