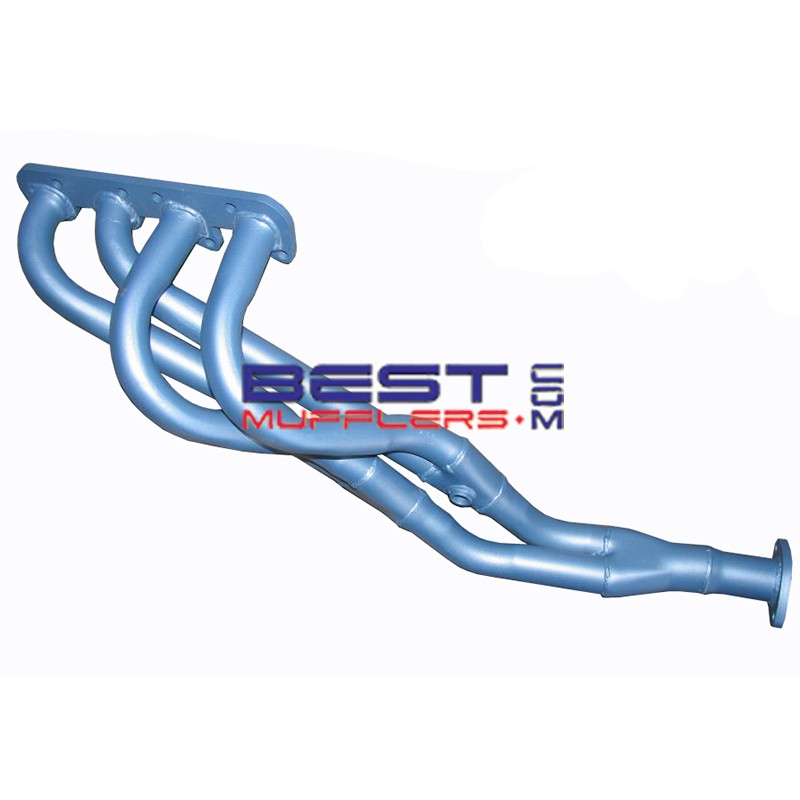

Hurricane Headers HU226STM – Daihatsu Feroza / Rocky 1.6L HDE Manual

Designed and manufactured in Australia, Hurricane HU226STM headers provide a substantial improvement over the original cast exhaust manifold fitted to Daihatsu Feroza and Rocky 1.6L HDE-powered vehicles. The tuned mandrel-bent design improves exhaust scavenging and reduces back pressure, helping the engine breathe more efficiently across the rev range.

Whether used for daily driving, touring, restoration projects or recreational off-road applications, Hurricane headers deliver improved throttle response, stronger mid-range torque and a smoother power curve while retaining excellent reliability.

Key Features

• Australian-made Hurricane Headers
• Mandrel-bent tuned-length design
• Oxygen sensor fitting included
• Heat-resistant protective coating rated to approximately 800°C
• Direct bolt-on installation
• Connects to factory catalytic converter location
• Suitable for manual and automatic transmission vehicles
• Fits left-hand and right-hand drive applications

Technical Specifications

• Part Number: HU226STM
• Primary Pipe Size: 38mm (1.58")
• Secondary Pipe Size: 45mm (1.75")
• Outlet Size: 51mm (2.00")
• Material: Mild steel mandrel-bent tubing
• Finish: Heat-resistant paint coating
• Transmission: Manual only
• Drive Configuration: Left or right-hand drive
• Production Lead Time: Approximately 2–4 weeks

Vehicle Fitment

• Daihatsu Feroza (SP) 1.6L HDE – Manual
• Daihatsu Rocky 1.6L HDE – Manual
• Toyota Blizzard 1.6L G16B equivalent applications

Engine Airflow Data

The 1.6L HDE engine moves a surprising amount of air. At approximately 4000 rpm and 85% volumetric efficiency, the engine draws around 2,720 litres of intake air per minute. Once combustion occurs and exhaust gas temperatures rise to approximately 600°C, exhaust volume expands significantly to approximately 8,160 litres per minute.

This increased exhaust volume highlights why efficient header design is important. Correct primary and secondary pipe sizing helps maintain exhaust gas velocity, improve cylinder scavenging and reduce pumping losses, resulting in stronger torque, improved throttle response and more efficient engine operation.

Fitment Notes

• Manual transmission vehicles only
• Compatible with factory air conditioning
• Direct fit to original catalytic converter location
• Clearance may vary with worn engine or gearbox mounts
• Protect painted surfaces during trial fitting and installation

What's Included

• 1 × Hurricane Headers HU226STM Header Assembly

Recommended With

• DSF721C Header Gasket Set
• C6064 Catalytic Converter

Warranty & Compliance

• Covered by Hurricane Headers 2-Year Warranty
• Designed for off-road and replacement use where applicable
• Verify emissions and registration compliance requirements in your state or territory before installation

Frequently Asked Questions

Do these headers fit automatic transmission models?
Yes. HU226STM headers are designed for manual and automatic transmission vehicles.

Will they fit vehicles with air conditioning?
Yes. Hurricane specifies compatibility with factory air conditioning systems.

Do I need to modify my exhaust system?
No. These headers are designed as a direct bolt-on replacement and connect to the factory catalytic converter position.

Is a gasket included?
No. A DSF721C header gasket set is recommended and sold separately.

How long before dispatch?
These headers are manufactured to order with an estimated production lead time of approximately 2–4 weeks.
