Toyota Corolla KE20 KE25 KE30 KE50 KE55 KE70 1967-1984 Hurricane Headers HU077STM
$325.00
Tax included

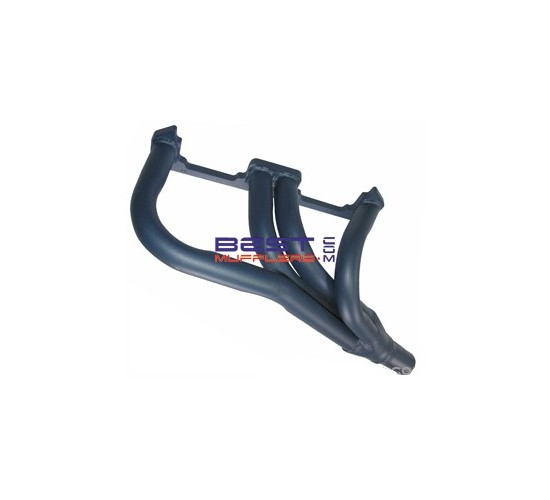

Hurricane Headers HU077STM – Toyota Corolla 3K / 4K (1970–1984)
Hurricane HU077STM headers suit Toyota Corolla KE20, KE25, KE30, KE50, KE55, and KE70 models with 3K or 4K engines (1970–1984). Featuring 35mm mandrel-bent primaries and 51mm outlets, these tuned headers improve flow, throttle response, and torque while maintaining reliable fit and finish. Australian made for lasting performance.
Hurricane Headers HU077STM – Toyota Corolla 3K / 4K (1970–1984)
Hurricane HU077STM headers are designed for Toyota Corolla 3K and 4K engines across KE20, KE25, KE30, KE50, KE55, and KE70 models from 1970 to 1984. These tuned-length headers enhance exhaust gas velocity for improved throttle response, torque, and smoother power delivery. Built in Australia with precision welding and mandrel bends for consistent flow.
Key Specifications
- Part Number: HU077STM
- Vehicle Application: Toyota Corolla KE20–KE70 (1970–1984)
- Engines: 3K & 4K
- Primary Pipes: 35mm
- Secondary Pipes: –
- Outlet Size: 51mm
- Gasket Required: DSF024
- Construction: Mandrel-bent mild steel
- Design: Tuned-length for street performance
Performance Insight
The 1.3L Toyota 4K engine at 4000 rpm draws approximately 2,700 L/min of intake air and expels around 8,100 L/min of exhaust gas. These headers optimise scavenging and gas velocity within that range, improving drivability and mid-range torque for daily use or classic performance builds.
Installation Tips
Lubricate bolts and studs with WD40 or anti-seize compound before fitting. Check gasket alignment and flange flatness before tightening. Retorque after the first heat cycle to ensure a leak-free seal.
Recommended With
- Gasket – see DSF024
- Exhaust Sealant – see Exhaust Sealant
- Outlet flange – available separately
Why Choose Hurricane Headers?
All Hurricane Headers are made in Australia and feature non-protruding secondary pipes for smooth collector flow. Some headers include Merge Emulation Spikes to enhance the scavenging effect, improving cylinder evacuation and power output.
