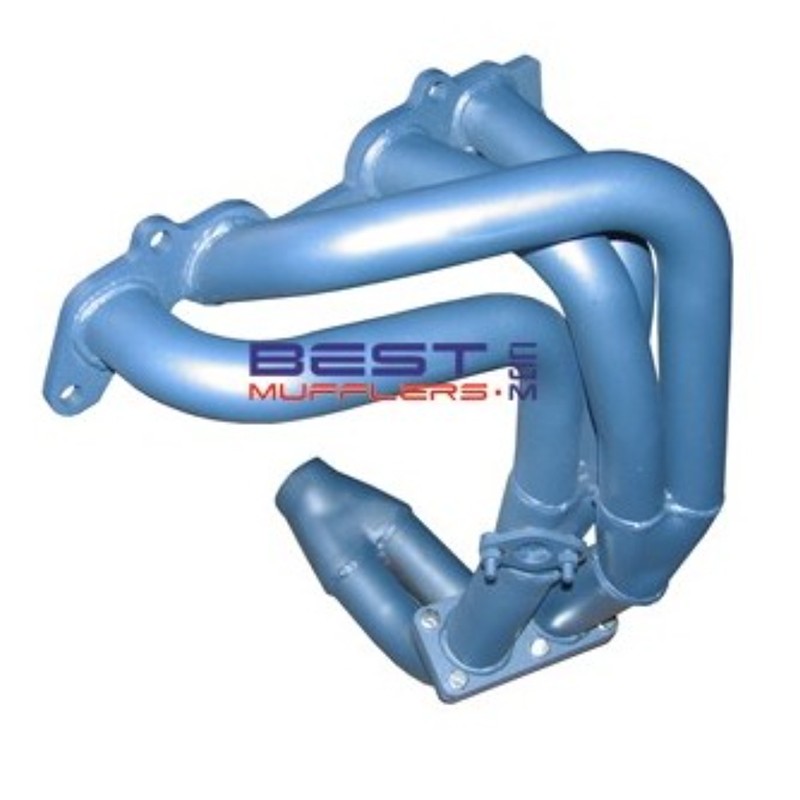

Toyota Celica ST162 ST184 ST204 1985-1999 3S-FE 5S-FE Hurricane Exhaust Headers HU233STM

Hurricane HU233STM exhaust headers (extractors) are designed for selected Toyota Celica ST162, ST184 and ST204 models from 1985 to 1999 fitted with the 2.0L 3S-FE or 2.2L 5S-FE petrol engine.

Featuring mandrel-bent 1¾" (45mm) primary pipes, 2" (51mm) secondary pipes and a 2¼" (57mm) outlet, HU233STM replaces the restrictive factory exhaust manifold and is designed to improve exhaust gas flow for better torque, throttle response and engine performance.

Fitment Note: The header outlet must be adapted to the vehicle's exhaust system during installation.

Please check availability and current lead time before ordering.

Key Features

• Designed for selected Toyota Celica ST162, ST184 & ST204 models
• Suits 2.0L 3S-FE and 2.2L 5S-FE petrol engines
• Mandrel-bent 1¾" (45mm) primary pipes
• 2" (51mm) secondary pipes
• 2¼" (57mm) outlet
• Designed to improve exhaust gas flow and reduce restriction
• Australian made Hurricane performance headers

Construction

• Quality steel construction
• Mandrel-bent pipework for consistent exhaust gas flow
• Quality welded construction for strength and durability
• Hurricane heat-resistant painted finish
• Australian made

Additional Options

• HG233 / DSF782: Exhaust manifold/header gasket options – please contact us to confirm availability

Vehicle Fitment

• Toyota Celica ST162: 2.0L 3S-FE – approximately 1985/1986-1989
• Toyota Celica ST184: 2.2L 5S-FE – approximately late 1989-1994
• Toyota Celica ST204: 2.2L 5S-FE – 1994-1999
• Overall Application Range: 1985-1999
• Drive: Front Wheel Drive
• Engine Types: 3S-FE / 5S-FE

Important: This listing is for the 3S-FE and 5S-FE applications only. Do not order by the Celica year alone, as other engines were available within these generations.

Header Specifications

• Part Number: HU233STM
• Primary Pipe Size: 1¾" / approximately 45mm
• Secondary Pipe Size: 2" / approximately 51mm
• Outlet Size: 2¼" / approximately 57mm
• Construction: Mandrel-bent steel
• Gasket: HG233 / DSF782 – contact us

Fitment Notes

• Suits selected ST162 2.0L 3S-FE applications
• Suits selected ST184 2.2L 5S-FE applications
• Suits selected ST204 2.2L 5S-FE applications
• The header outlet must be adapted to the existing exhaust system
• This should not be treated as a completely bolt-on connection to the existing exhaust system
• Confirm the engine code before ordering, particularly on imported or engine-converted vehicles
• Protect painted surfaces during trial fitting and installation
• Clearance may vary where non-standard engine mounts or aftermarket components have been fitted
• Please check availability and current lead time before ordering.

What’s Included

• Hurricane HU233STM header assembly

Recommended With

• HG233 / DSF782 exhaust manifold/header gasket as applicable
• Suitable exhaust pipe, flange or adaptor components required to connect the header outlet to the existing exhaust system

Why Good Headers & Exhaust Systems Matter

At 4,000 rpm, the 2.0L 3S-FE four-cylinder engine theoretically draws in approximately 4,000 litres of intake air per minute and can expel around 12,000 litres of hot exhaust gas per minute at approximately 600°C.

At the same engine speed, the 2.2L 5S-FE theoretically draws in approximately 4,400 litres of intake air per minute and can expel around 13,200 litres of hot exhaust gas per minute at approximately 600°C.

A well-designed header and exhaust system helps manage this high gas flow efficiently, reducing restriction and improving exhaust scavenging, torque, throttle response and engine performance.

Installation Tips

• Apply penetrating lubricant to exhaust manifold fasteners and exhaust connections before removal
• Remove all traces of the original manifold gasket and inspect the cylinder-head sealing surface
• Fit a new exhaust manifold/header gasket where required
• Trial-fit the header before fully tightening the mounting hardware
• Adapt the header outlet to the existing exhaust system as required
• Check engine mounts, wiring and surrounding components for adequate clearance
• Check all exhaust connections for leaks after installation
• Inspect and re-tighten mounting hardware after the initial heat cycles

Warranty & Compliance

Hurricane HU233STM headers are covered by the applicable Hurricane manufacturer warranty, subject to the manufacturer's current warranty terms and conditions.

The completed exhaust system must retain all catalytic converters, oxygen sensors and other emissions-control equipment required for the vehicle and comply with applicable state or territory emissions, roadworthiness and registration requirements.

FAQ

Which Toyota Celica models do HU233STM headers fit?
HU233STM is designed for selected Toyota Celica ST162, ST184 and ST204 models fitted with the 2.0L 3S-FE or 2.2L 5S-FE engine.

Does HU233STM fit the Celica ST162?
Yes. HU233STM suits selected ST162 models fitted with the 2.0L 3S-FE engine.

Does HU233STM fit the Celica ST184?
Yes. HU233STM suits selected ST184 models fitted with the 2.2L 5S-FE engine.

Does HU233STM fit the Celica ST204?
Yes. HU233STM suits selected ST204 models fitted with the 2.2L 5S-FE engine.

Will HU233STM fit a 3S-GE Celica?
This listing is specifically for the 3S-FE and 5S-FE applications. Do not assume fitment to a 3S-GE based only on the vehicle model or year.

Is HU233STM a direct bolt-on connection to the existing exhaust?
No. Hurricane specifies “adapt to exhaust system”, so the header outlet must be connected and adapted to suit the vehicle's existing exhaust system during installation.

What size are the HU233STM pipes?
HU233STM uses 1¾" (45mm) primary pipes, 2" (51mm) secondary pipes and a 2¼" (57mm) outlet.

Which gasket suits HU233STM?
HG233 / DSF782 are listed for this application. Please contact us to confirm the correct gasket and current availability.

Can I pick up from the store?
Yes. Pick up is available but must be pre-arranged before collection.

How much is freight?
Freight varies depending on your delivery location and where stock is available. Please contact us for freight charges before ordering. Where possible, we can arrange dispatch from the nearest available product location to help reduce freight costs and delivery times.

Do you ship to the USA?
Yes. Best Mufflers regularly ships exhaust systems and exhaust parts to customers throughout the United States.

Please note that import duties, tariffs, taxes, and customs clearance fees are not included in the product or shipping price. Once your order is processed and the applicable charges are calculated, we will send you a secure payment link to finalise the import duties and tariff charges before dispatch.
