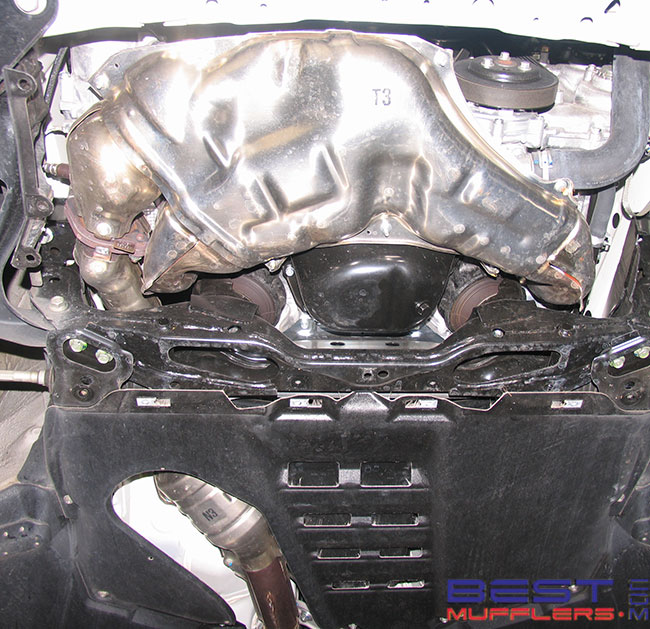

Factory original manifold & first & second catalytic converter assembies
|
|||
 |

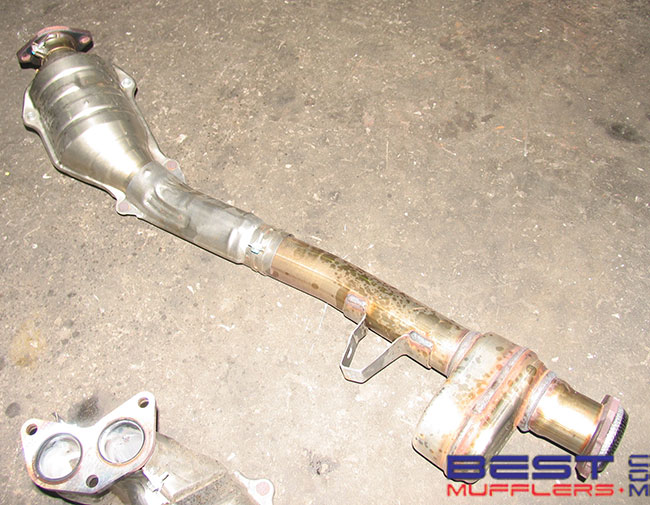

Factory original second catalytic converter & resonator assembly |
|||
 |

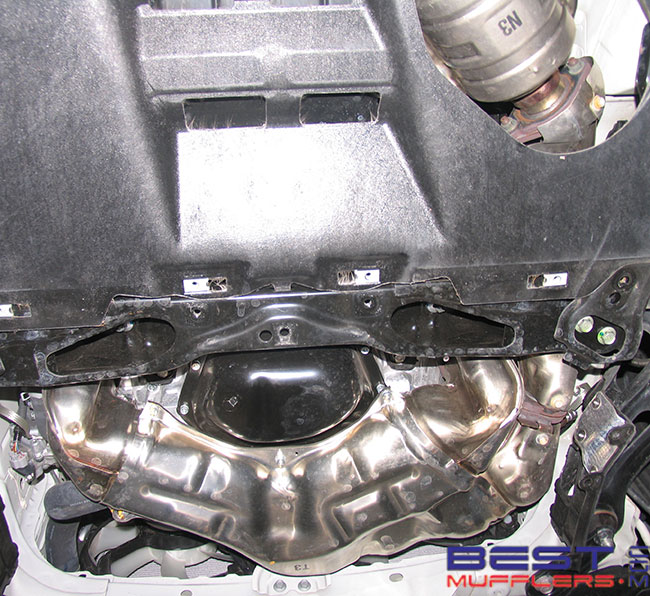

Factory original manifold & first & second catalytic converter assembies [looking from rear to front] |
|||
 |

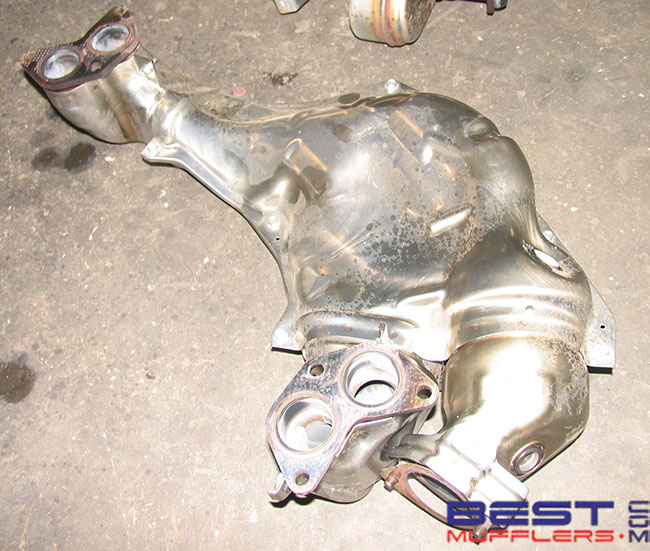

Factory original manifold & first converter assembly Two sensor fittings, before & after front catalytic converter. |
|||
 |

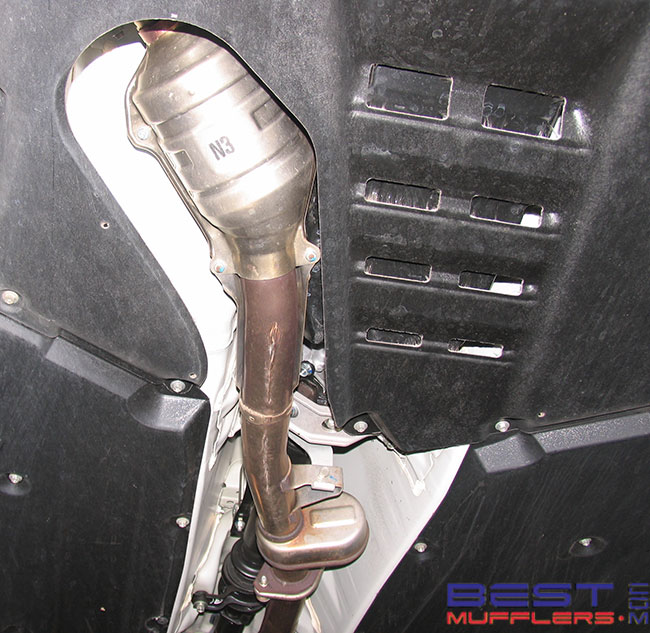

Factory original second catalytic converter & resonator |
|||
 |

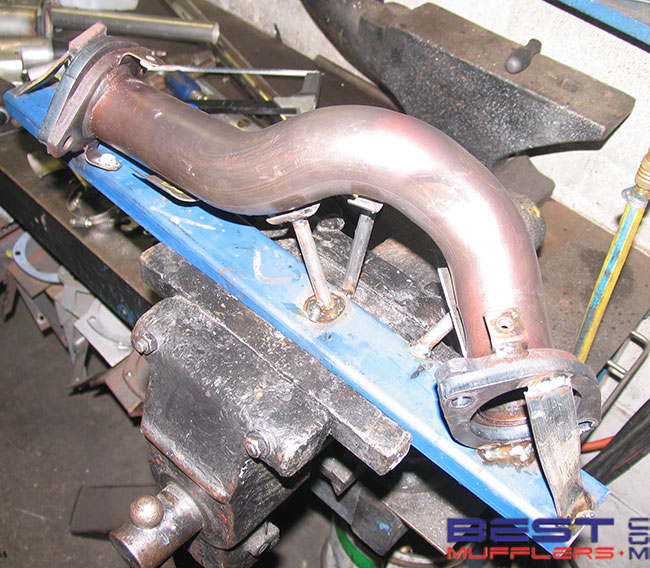

We needed to make a new 2 1/2" link pipe from the new headers to the new catalytic, [both supplied] so a jig was made to ensure correct fittment |
|||
 |
New link pipe is going to be larger than the original so the jig rests are spaced away slightly from pipe. | |||
 |

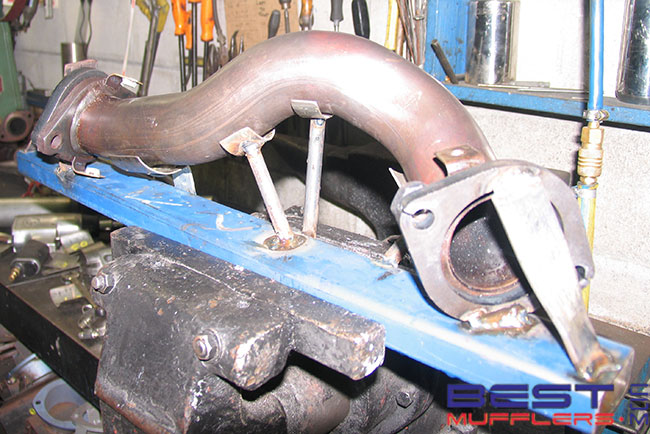

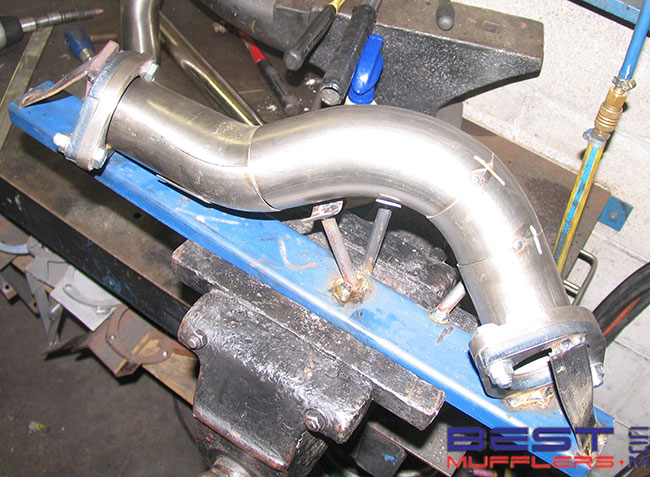

with a few mandrel bends & patience the new stainless steel mandrel bends pipes are ready to weld together. | |||
 |
New 2 1/2" link pipe with The new link pipe is fitted into position before fitting headers |
|||
 |
Once the new headers [supplied] are in place the link pipe is bolted to the header outlet & then bolted to the high flow cat converter [supplied] | |||
 |

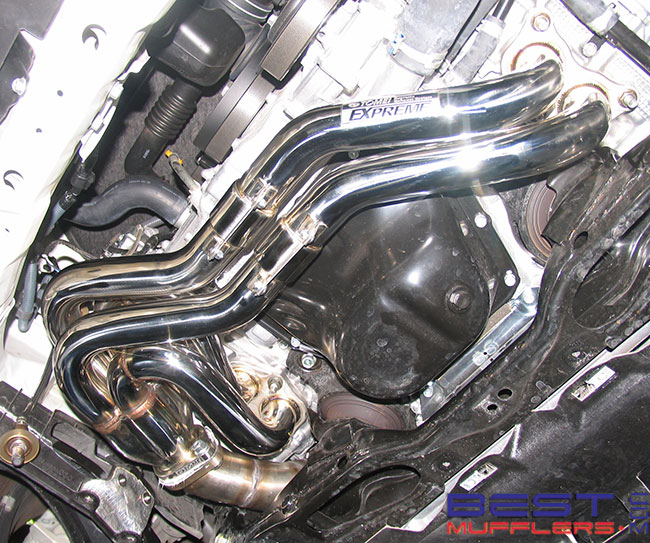

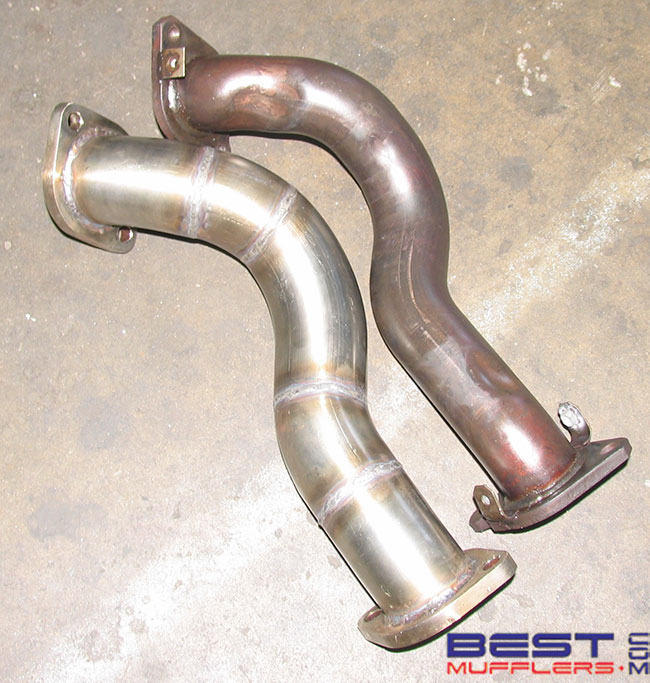

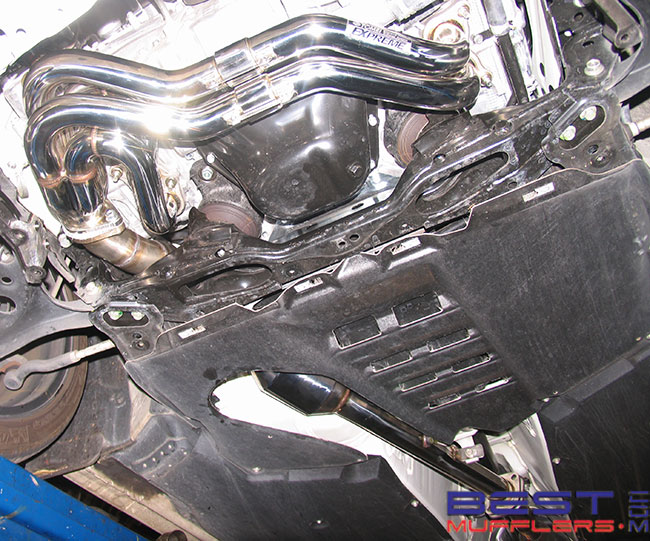

These are a nice set of pipes, excellent quality supplied by customer | |||
 |

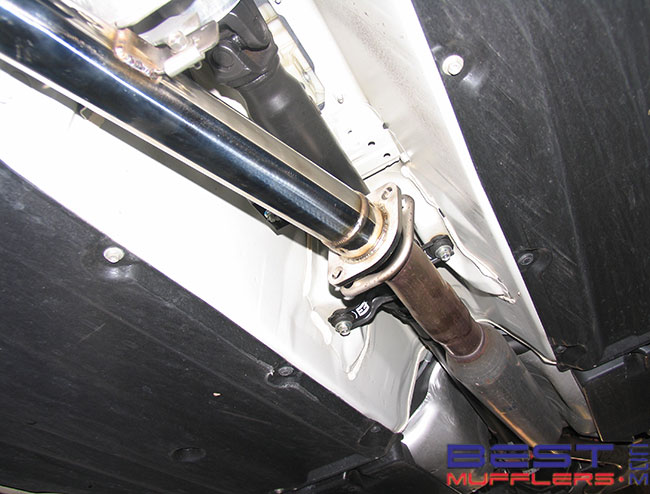

The original system was left in place to ensure the new 2 1/2" link pipe is correct, image shows the flanges line up perfectly. | |||
 |

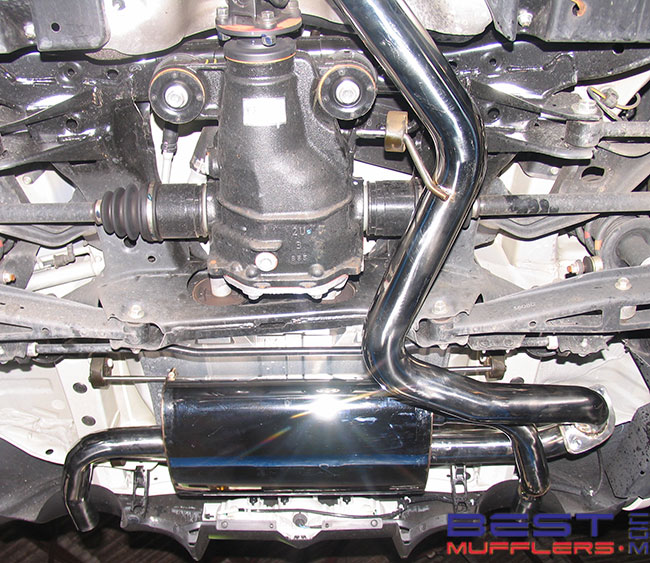

From the cat back customer has chosen to use the xforce exhaust stainless steel 2 1/2" system |
|||
 |

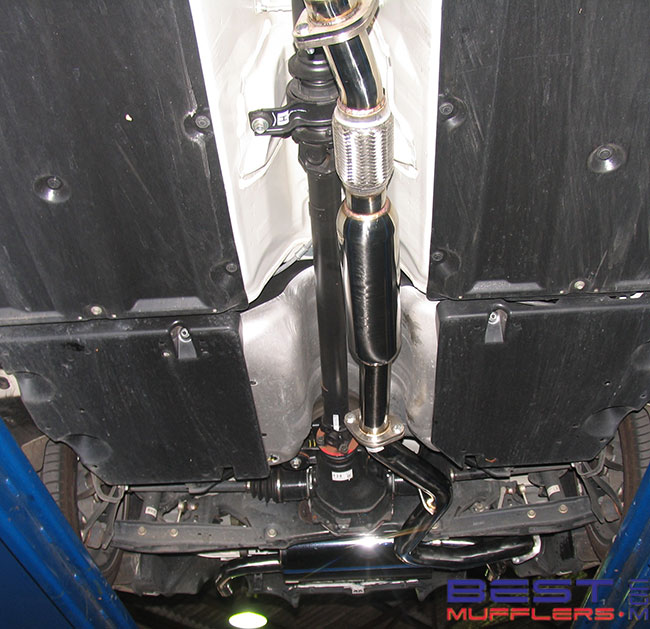

The xforce system fits up pretty will, clips were required to ensure the rear muffler mounting pins don't slip out of 4 rear the exhaust rubbers |
|||
 |

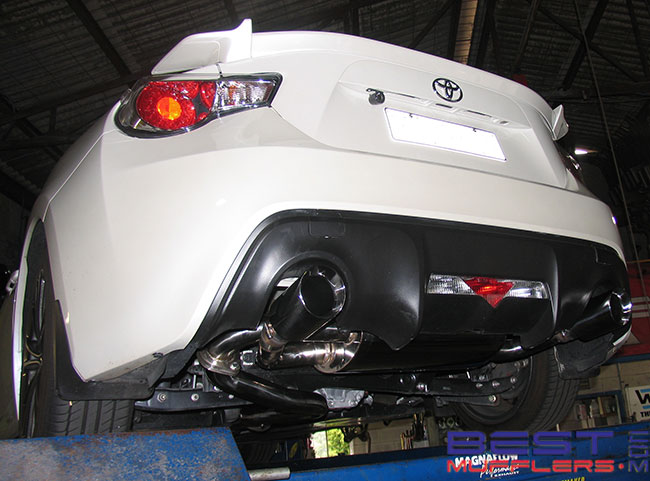

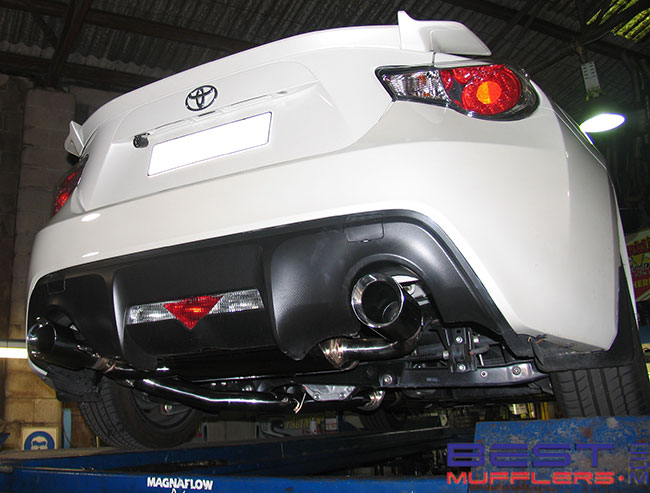

The xforce exhaust comes with 4" angle cut stainless steel tips | |||
 |
|
|||
|
||||
